72 KAM-XM-SERIES Instruction Manual
Configuration and Adjustments
15. If the load has been successful, a popup will appear as shown in
Figure 43 . Click the OK button.

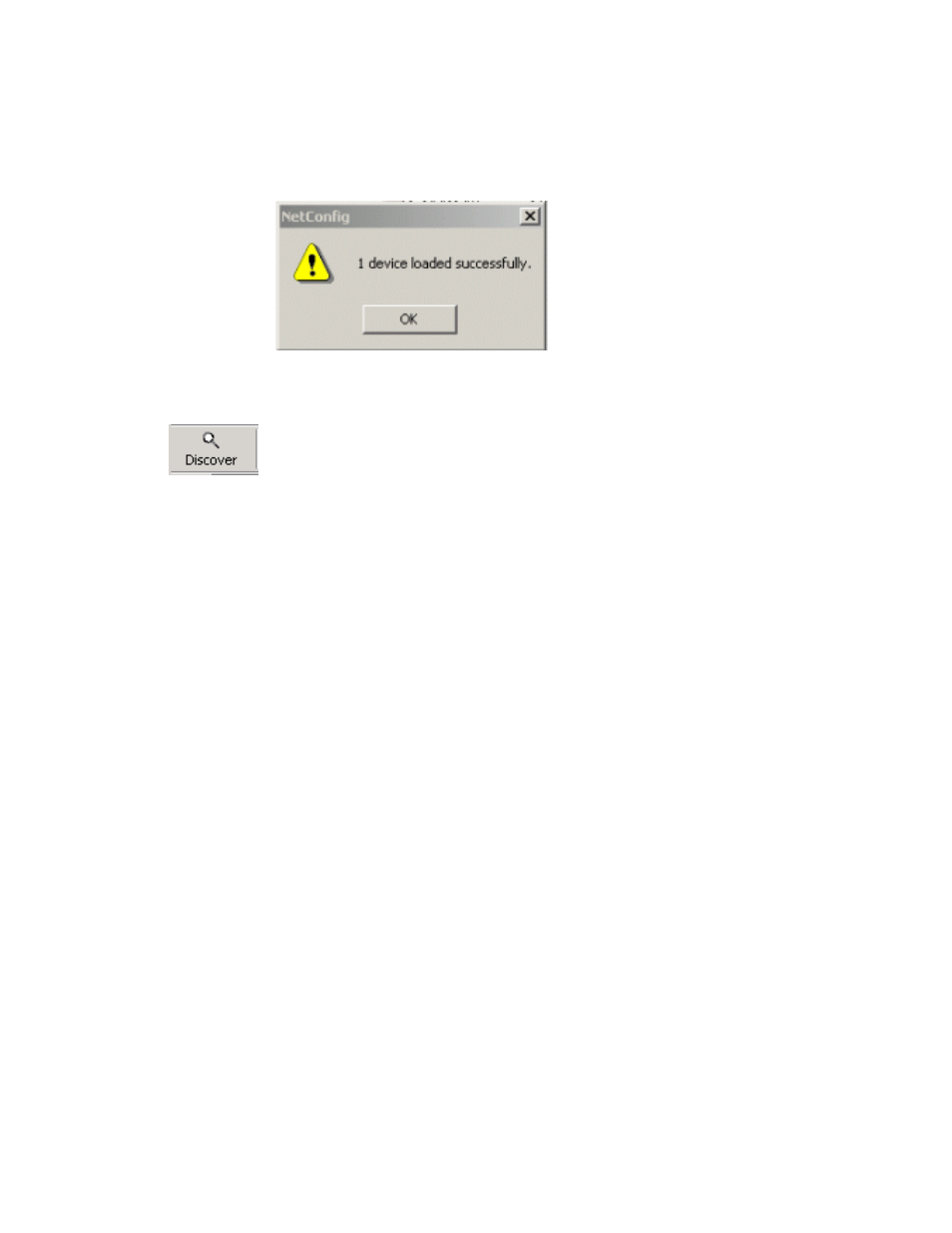

Figure 43. Load Successful Popup
16. Allow the reboot to complete.
17. Bring up NetConfig again and click on the Discover button in the top
menu bar. Then click on the Load SW button.
18. Select the firmware Device Type on the left ( Figure 42 on page 71 ).
19. Select the same Client Name as the first download.
20. Check the Re-Boot when complete checkbox in the lower left corner of the
screen.
21. Press the Load button to download the firmware to the KAM-XM
module selected.
22. If the load has been successful, a popup will appear as shown in
Figure 43 . Click the OK button.
23. Allow the reboot to complete.
24. Bring up NetConfig again and click on the Discover button in the top
menu bar. Then click on the Load SW button.
25. Select the ucode1 Device Type on the left.
26. Select the same Client Name as the first download.
27. Complete the same steps for the rest of the .fld files listed, allowing the
reboot to complete each time.
28. Verify that all downloads were successful by checking the Download
Status table on the Status web page (
Figure 19 on page 40 ).
For more information on using NetConfig, refer to the NetConfig Net-
working Application Instruction Manual which is included with the option,
available on the Thomson Grass Valley web site, and may also be present
in the NetConfig directory during some NetConfig installations (Newton
Control Panel installation is one example).
