KAM-XM-SERIES Instruction Manual
Configuration and Adjustments
Links and Web Pages

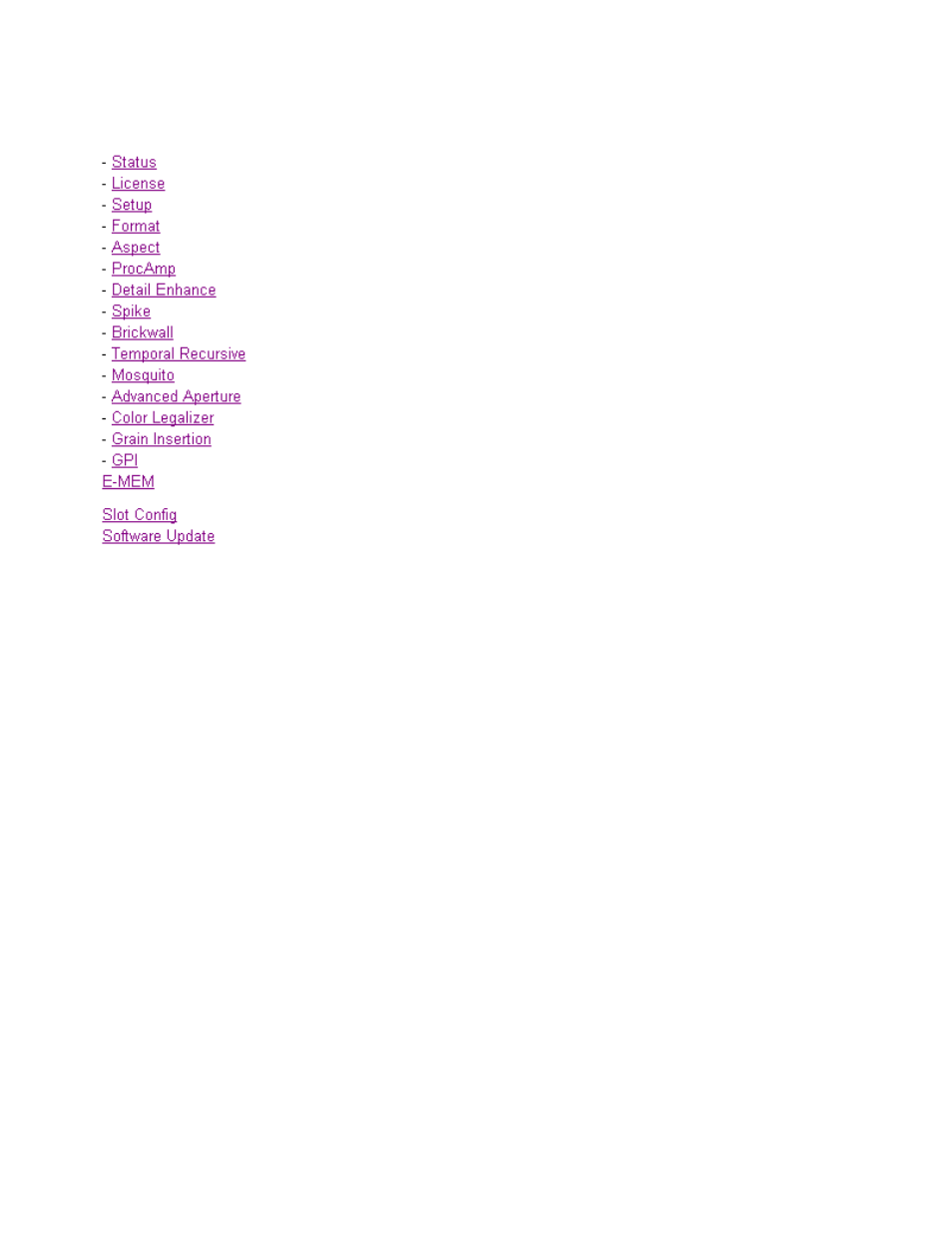

The Kameleon 2000 GUI provides the following links (see graphic at left) to
configuration web pages for all of the modules covered in this manual
unless otherwise specified:
•
Status – reports input signal status, warnings, and module information
including part number, serial number and software versions (
)
•
License – reports the module type (
)
•
Setup – provides controls for selecting the video reference for the
module, the genlock offset, closed captioning lines and blanking con-
trols (
)
•
Format – provides controls for setting input and output format
(
•
Aspect – provides aspect ratio conversion options (
)
•
ProcAmp – provides processing amplifier controls (
•
Detail Enhance – provides horizontal and vertical detail enhancement
controls (
•
The following web pages are available only with the KAM-XM-UNC
module:
•
Spike – provides adaptive median filter for random noise removal
(
•
Brickwall – provides a low pass filter with a sharp cutoff for
impulse and gaussian noise conditions (
)
•
Temporal Recursive – provides a motion adaptive filter for
removing random and gaussian noise (
•
Mosquito – is not available in this application (
•
Advanced Aperture – is not available in this application (
•
Color Legalizer – provides luma and chroma high and low limit con-
trols for setting legal color limits (
)
•
Grain Insertion – is not available in this application (
)
•
GPI – enable and assign E-MEM registers to GPI Inputs 1-3 for external
recall (
•
E-MEM – provides ten Preset registers for store and recall of module
configuration (
)
•
Slot Config – provides Slot ID and Memory functions, Frame Health
reporting and SNMP reporting enable/disable controls (
)
•
Software Update – gives software update information (
A summary of all configuration value ranges, defaults, and control types is
given in
.
