62 KAM-XM-SERIES Instruction Manual
Configuration and Adjustments
To save an E-MEM configuration to a file on a hard drive or other accessible
media:
1. Select the corresponding Save to... button in the File Operations section.
2. This will bring up a File Download screen (not shown), select Save to
bring up the Save As screen shown in Figure 37 .

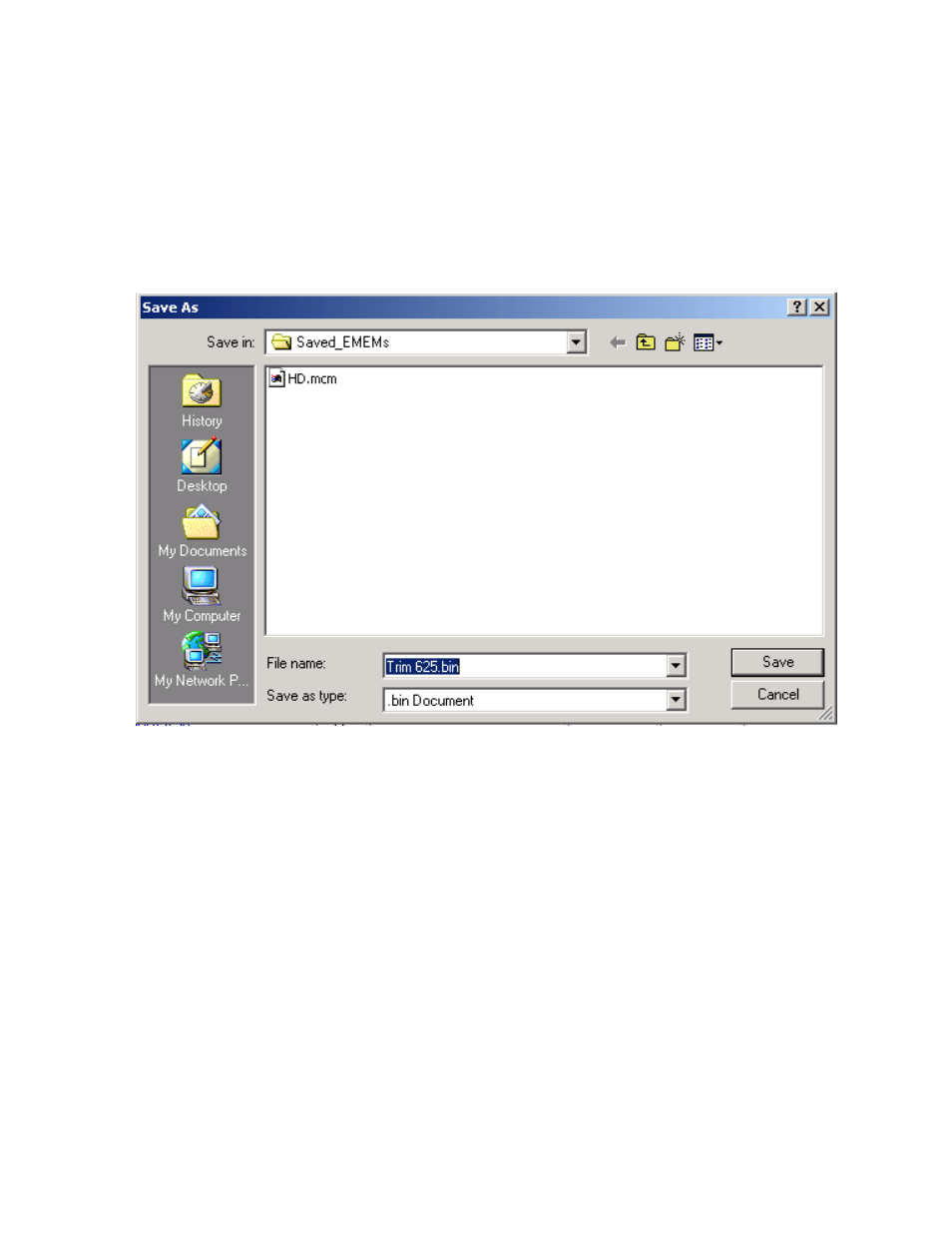

Figure 37. E-MEM Save to Operation
3. In the Save As dialog box, the file name will default to the
E-MEM name. Browse to the folder where you want to save the
configuration and select
Save . The KAM-XM module files save as a .bin
file type. Other Kameleon module types save as a .mcm file type.
Note You may rename the file during the Save process but the E-MEM name
entered into the Local Operations window will not change on the web page to
match the Save As name. Best practice is to leave the Save As file name the
same as the E-MEM name.
