Configuration and Adjustments
Web Page Operations and Functional Elements

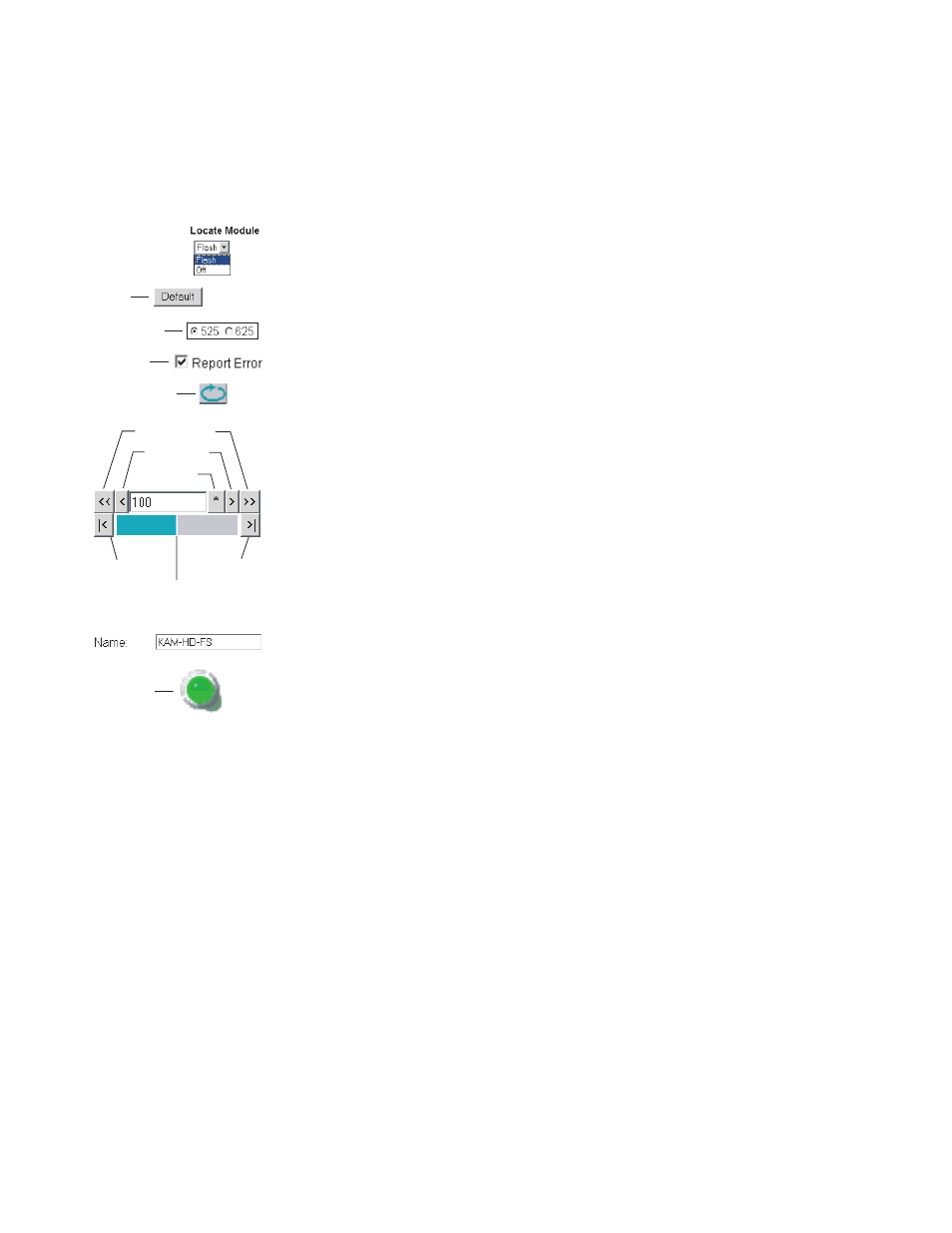

The following conventions and functional elements (shown at left) are used
in KAM-XM web page operations. (The examples shown throughout this
manual represent 2000NET software version 4.0.0 or later):
• Pulldown menus allow you to choose selections from a list.
• Clicking on a button performs an immediate action such as recall of
defaults, clearing of states, learning configurations, and selecting all or
none of a selection.
• Radio buttons are used to make a choice of one parameter in a group.
• Check boxes are used when a selection can be enabled or included in a
group. Multiple checkbox selections or enables can be made.
• A Refresh button (circular arrow) is provided at the top of each web page
for manual refresh to view recently changed parameters.
• Each numerical adjustment control has a Coarse adjust button (left and
right top double arrows) which increases or decreases the step value by
a factor of 10. The
Fine adjust button (left and right inside single arrows)
increases or decreases the step value by 1.
To change a value, use the arrow button controls or enter a value into
the number field and select the
Enter button ( * ) or use the Enter key on
your keyboard. The Status Indicator bar will follow the value selected.
Use the Low and High Limit buttons to go directly to the lowest and
highest limits for the parameter.
• An entry field allows naming of various module functions such as
input or output signals, asset tag, and slot identification.
• The Status LED is explained below.
Status LED icon
The Status LED icon reports communication status for the frame slot and is
a link to the module Status page where Warnings and Faults are displayed.
LED colors indicate:
• Green = Pass – no problems detected
• Yellow = Configuration error warning
• Red = Fault condition detected
Variables:
• Model and Description are read-only generated by the module
• Frame Location is entered in 2000 Series Frame configuration
• Slot number reports the module’s location in the frame
• Last Recalled E-MEM reports the name of the last E-MEM recalled
