48 KAM-XM-SERIES Instruction Manual
Configuration and Adjustments
Proc Amp Web Page
The Proc Amp web page ( Figure 24 ) provides the controls for adjusting the
video processing parameters for the output of the module. Ranges and
default values are summarized in
Table 5 on page 30 .
Each control must be enabled by checking the Enabled checkbox.
Use the Proc Amp controls to set the following parameters:
• Video Gain – sets the overall amplitude of the output video signal from
± 6 dB.
• Black Level – adjusts the black level of the video output signal ±30 IRE.
• Hue – adjusts the phase of the output video signal ± 9 degrees.
• Saturation – adjusts the chroma saturation of the output video signal
± 6 dB.
Check the RP 177 On checkbox when using video converted from film pro-
duction as required by SMPTE Recommended Practice RP 177.

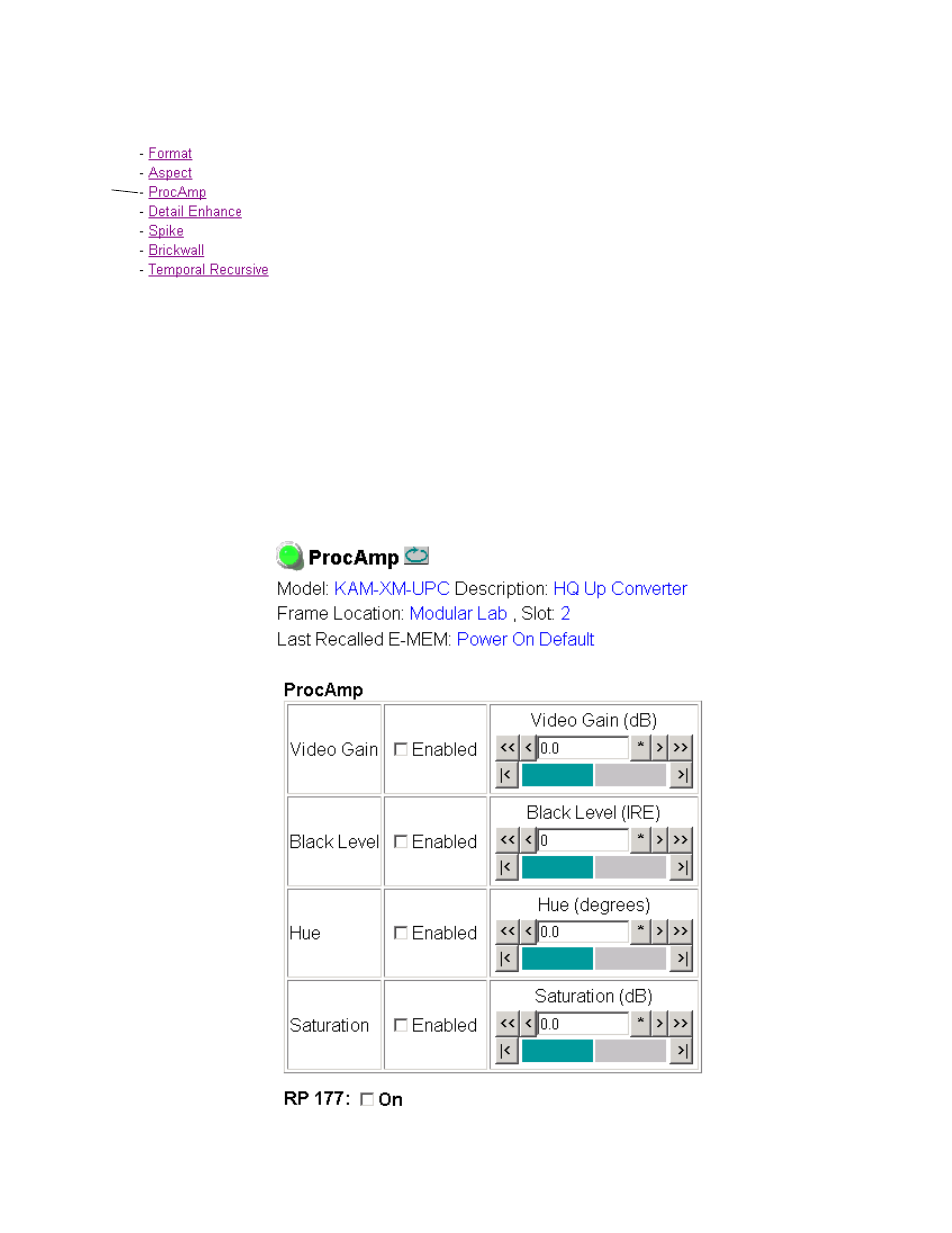

Figure 24. KAM-XM ProcAmp Web Page
Use
this
link
