KAM-XM-SERIES Instruction Manual 15
Installation

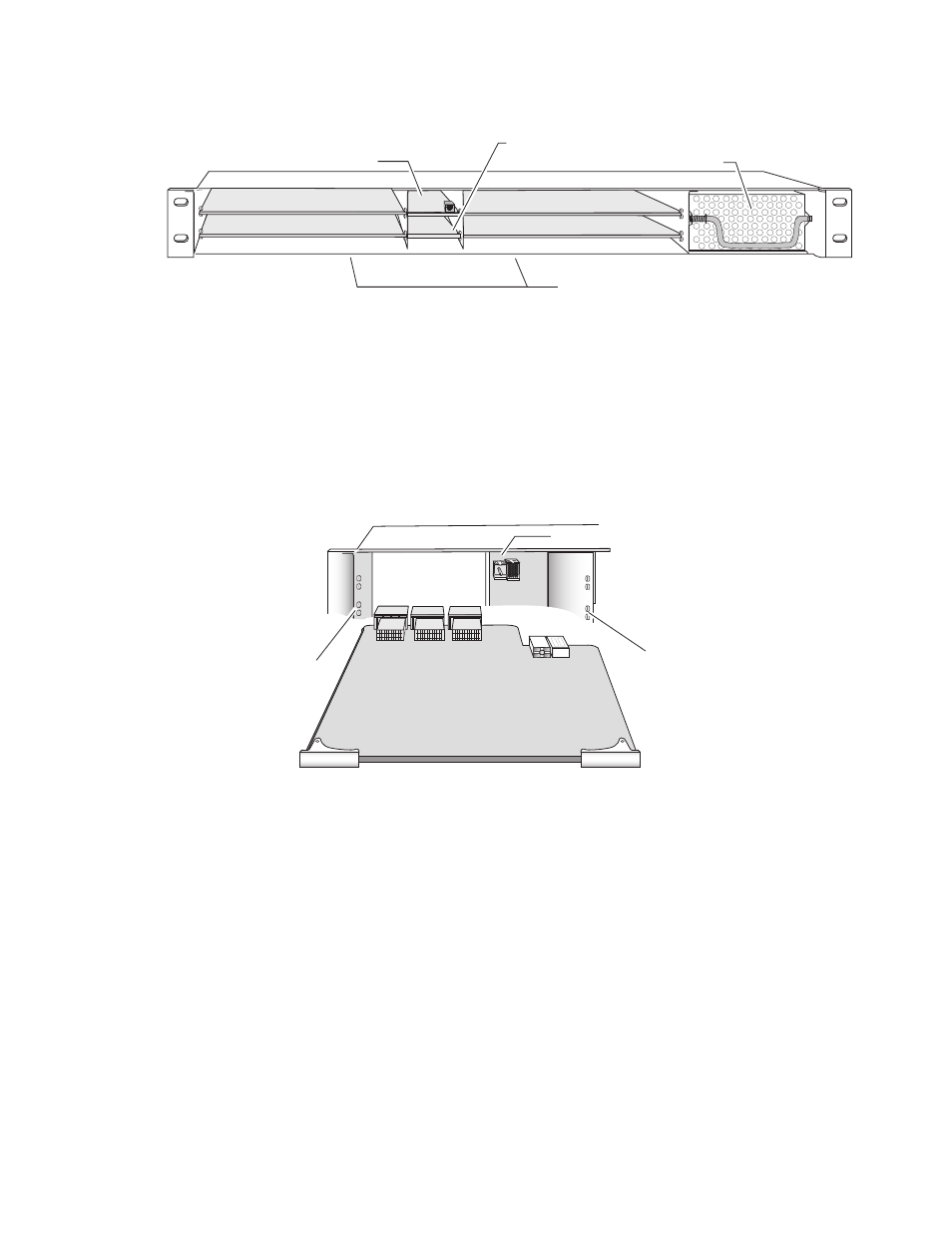

Figure 5. 2000T1 Frame, Front Slots
6. With the component side up, insert the front media module in the
corresponding front slot (see
Figure 6 ).
7. Verify that the module connector seats properly against the midplane
and rear module connector.
8. Press firmly on both ejector tabs to seat the module.
Figure 6. Installing Front Media Module
(2)
(3)
(4)
(5)
(6)
(1)
8
039-21
Network Slot (5) Power Supply Slot (7)
Front Media Slots (1-4)
Reference Distribution Slot (6)
KAM-XM
Alignment post and receptacle
8
330-10
2000 Frame (front view)
Board edge
guides
Board edge
guides
