Jupiter AccuSwitch Soft Panels and Status Display Instruction Manual 61
Configuration
4. Enter the IP address of the AccuSwitch Controller associated with this
VSD in the Main IP Address field.
5. Enter the IP address of the secondary AccuSwitch Controller (if any) in
the Backup IP Address field.
6. Select a number between 1 and 64 for the Device ID field. This number
must be unique for panels associated with the same AccuSwitch
Controller. The Device ID is also entered on the MPK Devices table, as
described below.
Note The Device ID number selected here corresponds to the MPK table Address
entry that uses two digit leading-zero numbers (01-09).
7. Select the IP address, if it is not already selected, for the “PC IP
Address” list.
8. Select the Connect button.
User Preferences
The colors, the connection settings, and the size of the spreadsheet display
settings used on the VSD screen can be changed, if desired.
To set or change the preferences:
1. Go to “Options >Options”. The Options window will then appear
(
Figure 73 ).

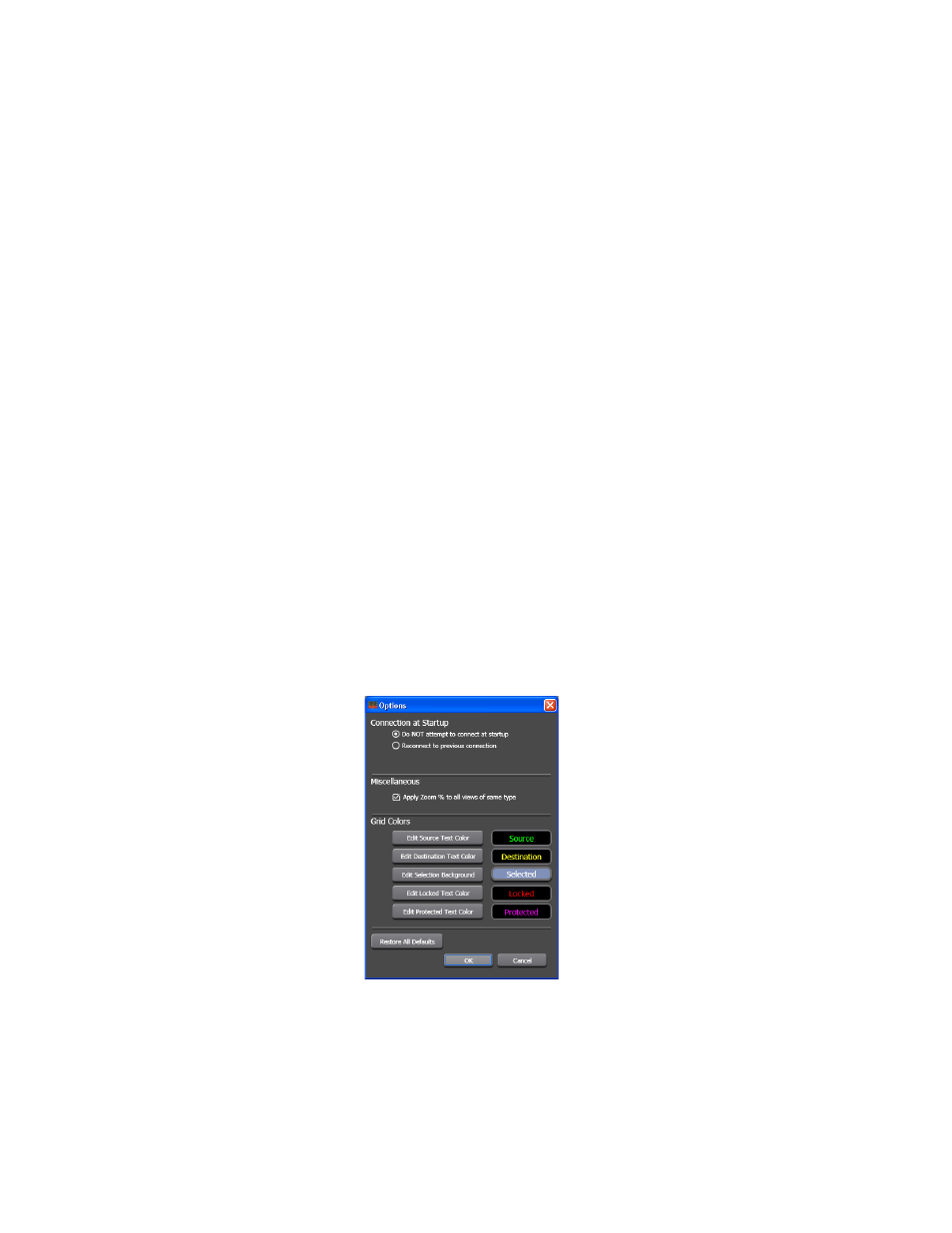

Figure 73. Options Window
