28 Jupiter AccuSwitch Soft Panels and Visual Status Display Instruction Manual
Section 3 — Multi-Level XY Soft Panel
Locking and Unlocking a Destination
Locking a destination prevents that destination from being switched by
any panel in the system, including the initiating panel.
To lock a destination:
1. Click the Lock button. If no levels are selected, all valid levels for the
destination will be locked. If levels are selected, only the selected levels
will be locked.

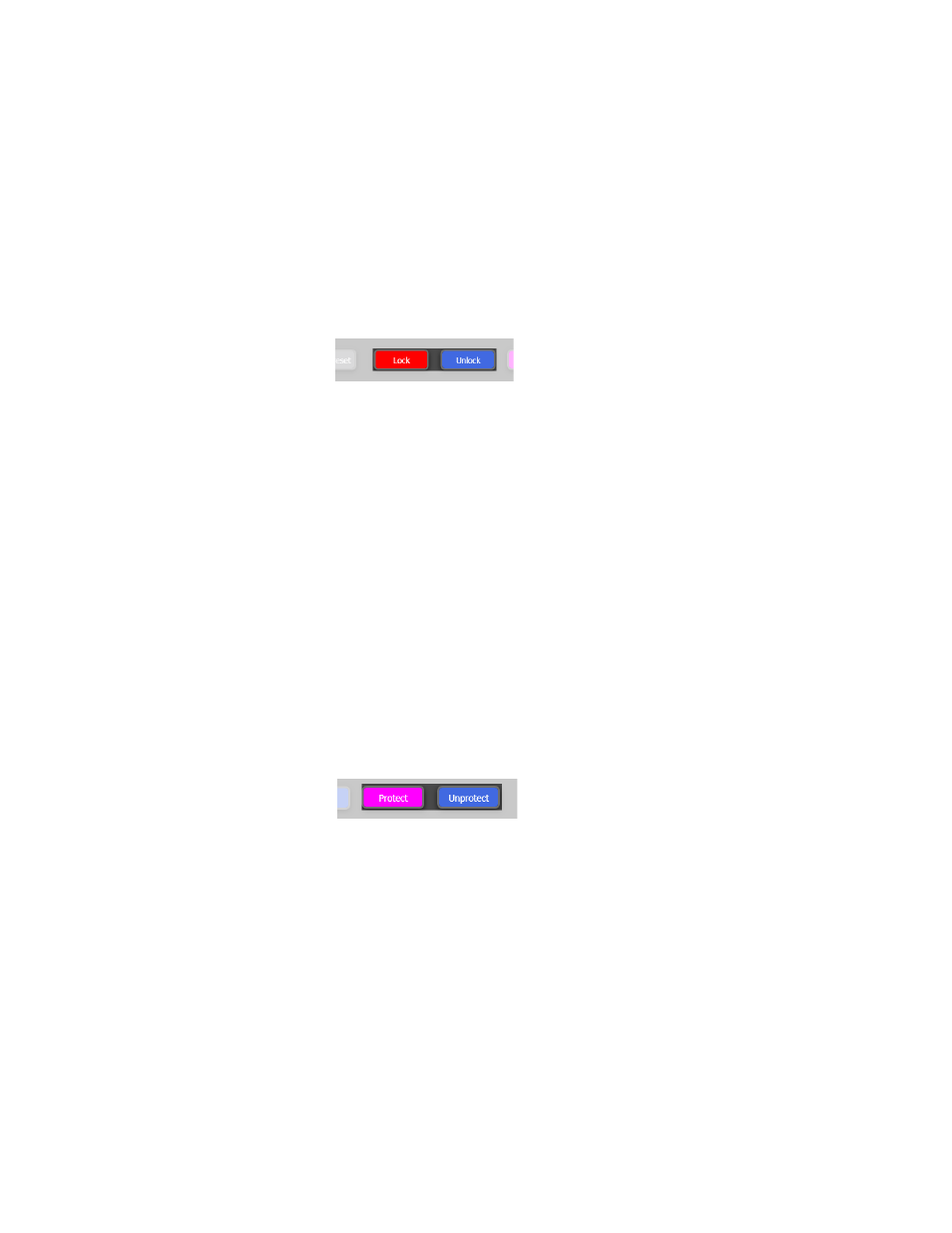

Figure 33. Lock and Unlock Buttons
2. The status row will then change to the color that is assigned in the
Options dialog (Menu bar: View > Options...).
To unlock the destination click the Unlock button. This will affect the same
levels as the Lock operation.
Protecting or Unprotecting a Destination
Protecting a destination prevents that destination from being switched by
any other panel in the system.
To protect a destination:
1. Click the Protect button. If no levels are selected, all valid levels for the
destination will be protected. If levels are selected, only the selected
levels will be protected.
Figure 34. Protect and Unprotect Buttons
2. The status row will then change to the color that is assigned in the
Options dialog (View > Options...).
To unprotect the destination, click the Unprotect button. This will affect the
same levels as the Protect operation.
Tool Tip Help
Hovering over a locked/protected destination shows the name of the panel
that locked/protected that destination (
Figure 35 ).
