Page 25
19
CopperHead Pro
User Guide
Camera Unit - Connectors (Section A)

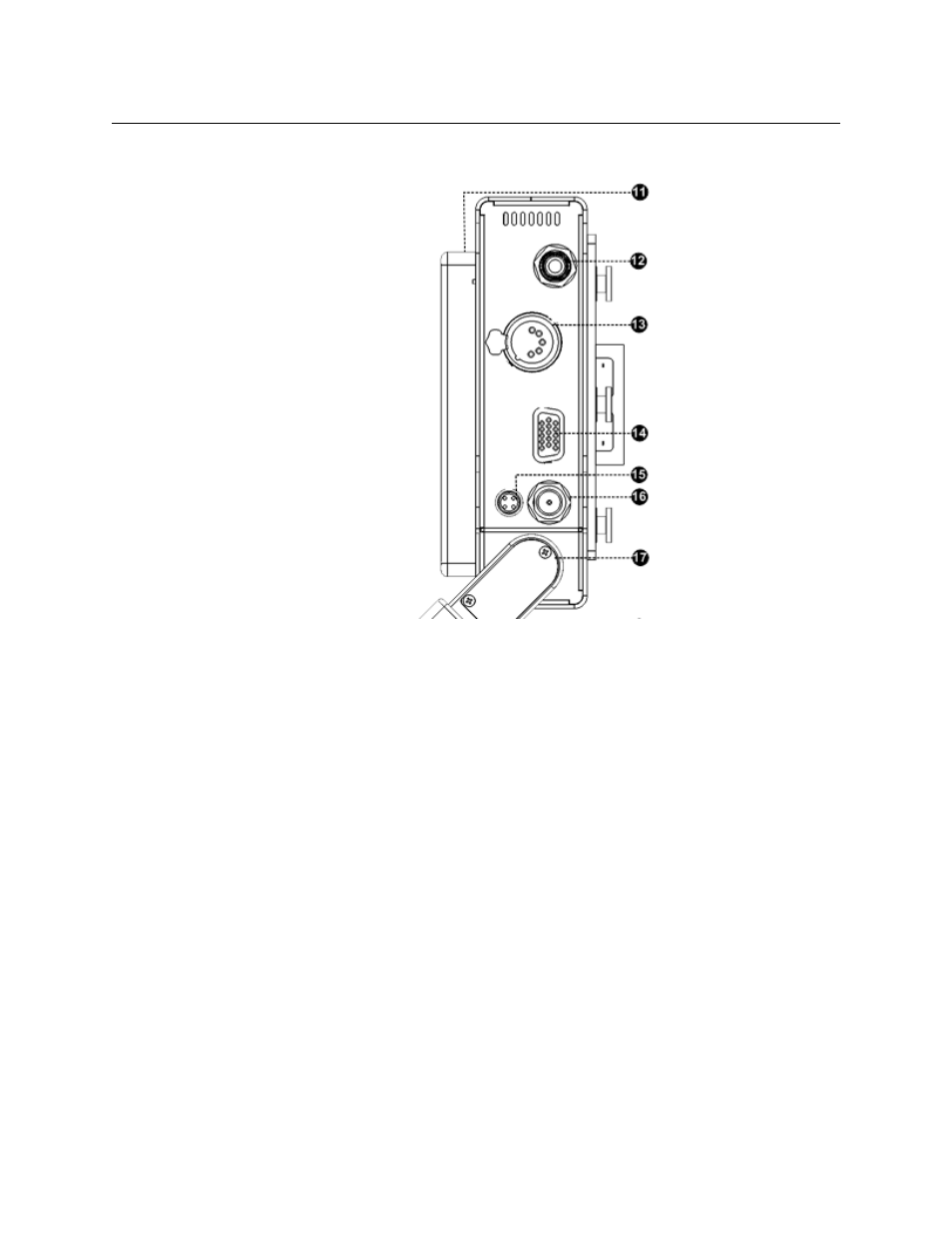

Fig. 3-5: Camera Unit Connectors
• 11: Battery Mounting Plate: typically equipped for with Anton/Bauer or V-Mount
batteries
• 12: SD/SDI or HD/SDI Input - to Base Station: digital video input connector from
camera's SDI output
• 13: Intercom Headset Jack: connect 5-pin XLR Male intercom headset connector
• 14: Connector for CHCR cable: Camera Remote Control, Tally: DB15HD connector for
Camera Remote Control, Tally input and output. See
on page 73 for the correct cable for your camera.
• 15: PowerWafer Connector: for use with PowerWafer when used with the AC-powered
Base Station or the MPS power supply. Connect with CH3CP-INF-2FAG cable.
• 16: VBS (analog composite video) or Genlock Out - from Base Station: connect to
camera's Genlock/Sync input connector or to external VBS monitor
• 17: Fiber Connector Swivel: attach fiber cable to connector mounted here.
