System Overview
Dry Fiber Systems - Locally powered cameras
PowerWafer, with MPS Power Supply
Systems can be configured so that the majority of the fiber run is made via "dry" tactical or
infrastructure fiber, after which a "throwdown" MPS Power Supply is placed in line to
provide powered SMPTE hybrid fiber cable to the camera. In this configuration, as shown in
Figure 2-3 , the Base Station can be separated from the MPS power supply by more than
nine kilometers (5.6 miles), where powered cable can be run to the camera for 240 meters
(780 feet), providing up to 95 watts of power to the camera and accessories.

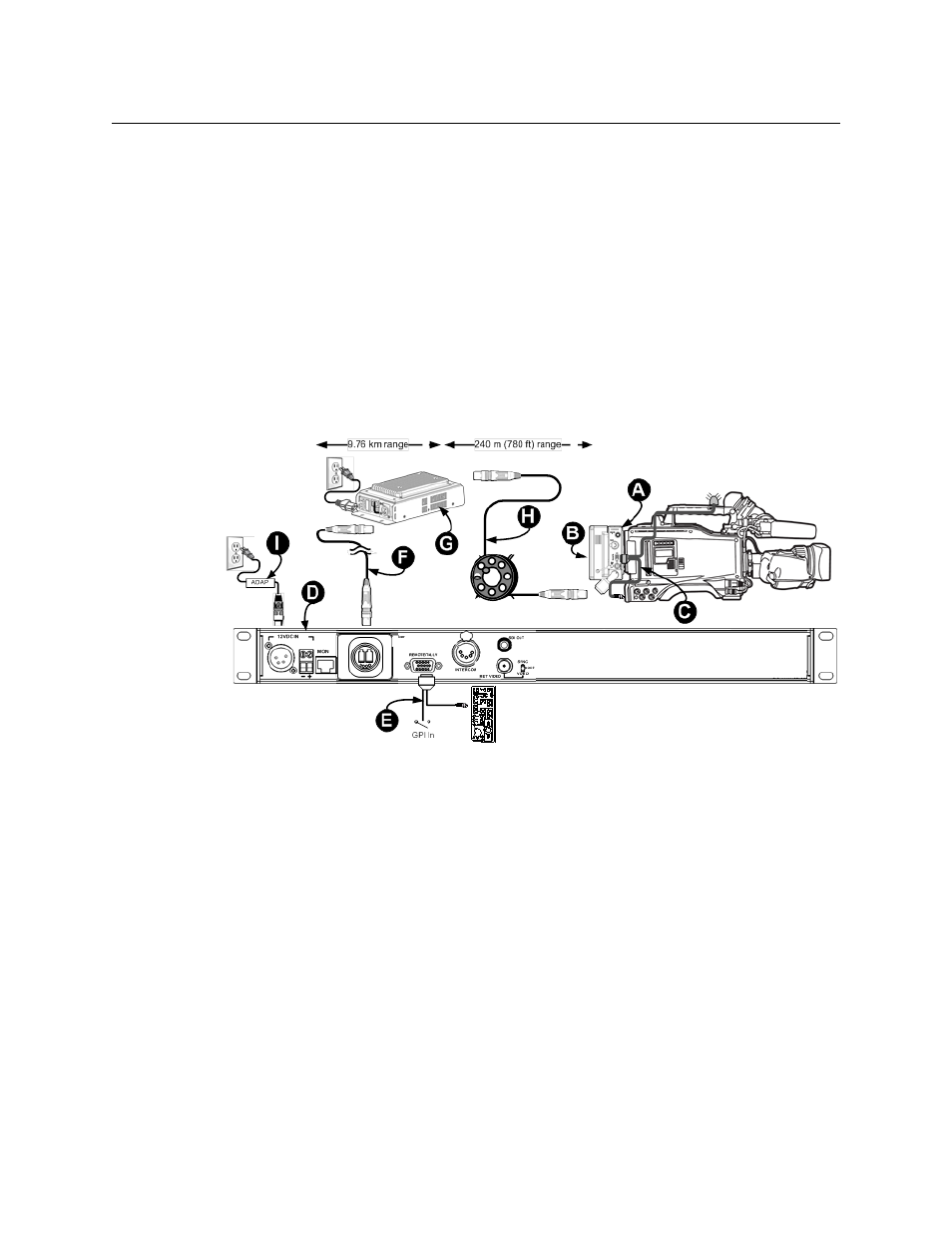

Fig. 2-3: System using MPS Power Supply
• A: Camera Unit
• B: Power Wafer
• C: CHCR camera remote cable
• D:
DC-powered Base Station
• E: CHBR base remote cable
• F: Tactical fiber or Infrastructure fiber run
• G: MPS Power Supply
• H: Hybrid fiber optic cable
• I: ADAP 12VDC power supply
