56

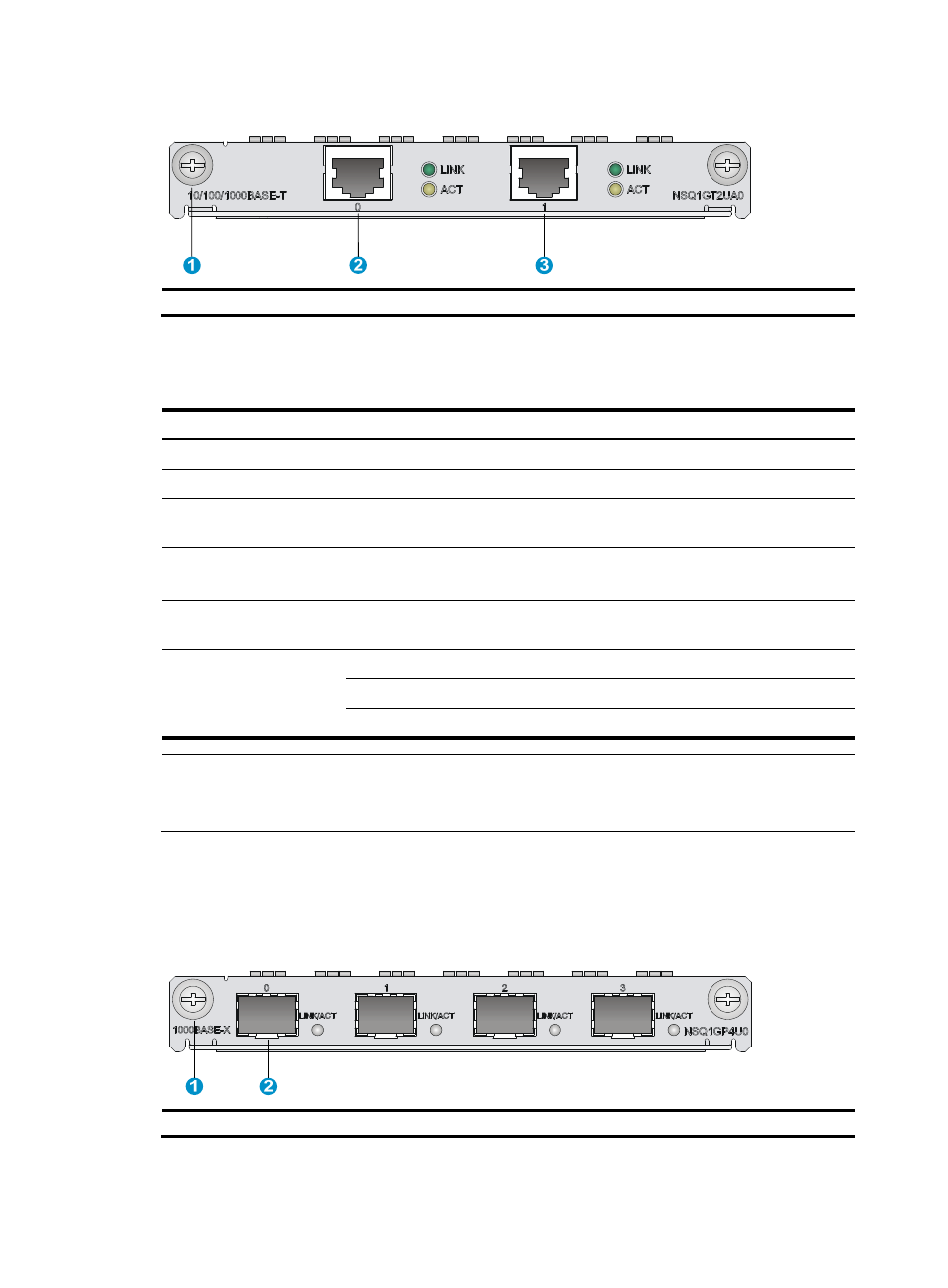

Figure 42 NSQ1GT2UA0 panel view
(1) Captive screw (2) GE port 0 (3) GE port 1
The interface module comes with each GE port covered by a dust cap. For simplicity, this figure does
not show the dust caps.
Table 23 NSQ1GT2UA0 interface specifications
Item Description
Connector type RJ-45
Number of interfaces 2
Interface type
Autosensing (the Ethernet interface does not support MDI/MDIX autosensing
when operating in forced mode)
Frame format
Ethernet_II
Ethernet_SNAP
Transmission medium and
max transmission distance 100 m (328.08 ft) over category-5 twisted pair cable
Rate and negotiation mode
10 Mbps (autosensing) Half-/full-duplex auto-negotiation
100 Mbps (autosensing) Half-/full-duplex auto-negotiation
1000 Mbps (autosensing) Full-duplex auto-negotiation
NOTE:
Force mode means that you set the port rate to 10 Mbps or 100 Mbps, or configure the port operating
mode to half-duplex or full-duplex.
NSQ1GP4U0
NSQ1GP4U0 provides four 1000BASE-X SFP fiber ports, which can be set to operate as Layer 3
interfaces or Layer 2 interfaces.
Figure 43 NSQ1GP4U0 panel view
(1) Captive screw (2) SFP port
