10
• The L1000-A is ready for installation and has been carried to a place near the installation site and
convenient for moving.
Unpacking the L1000-A

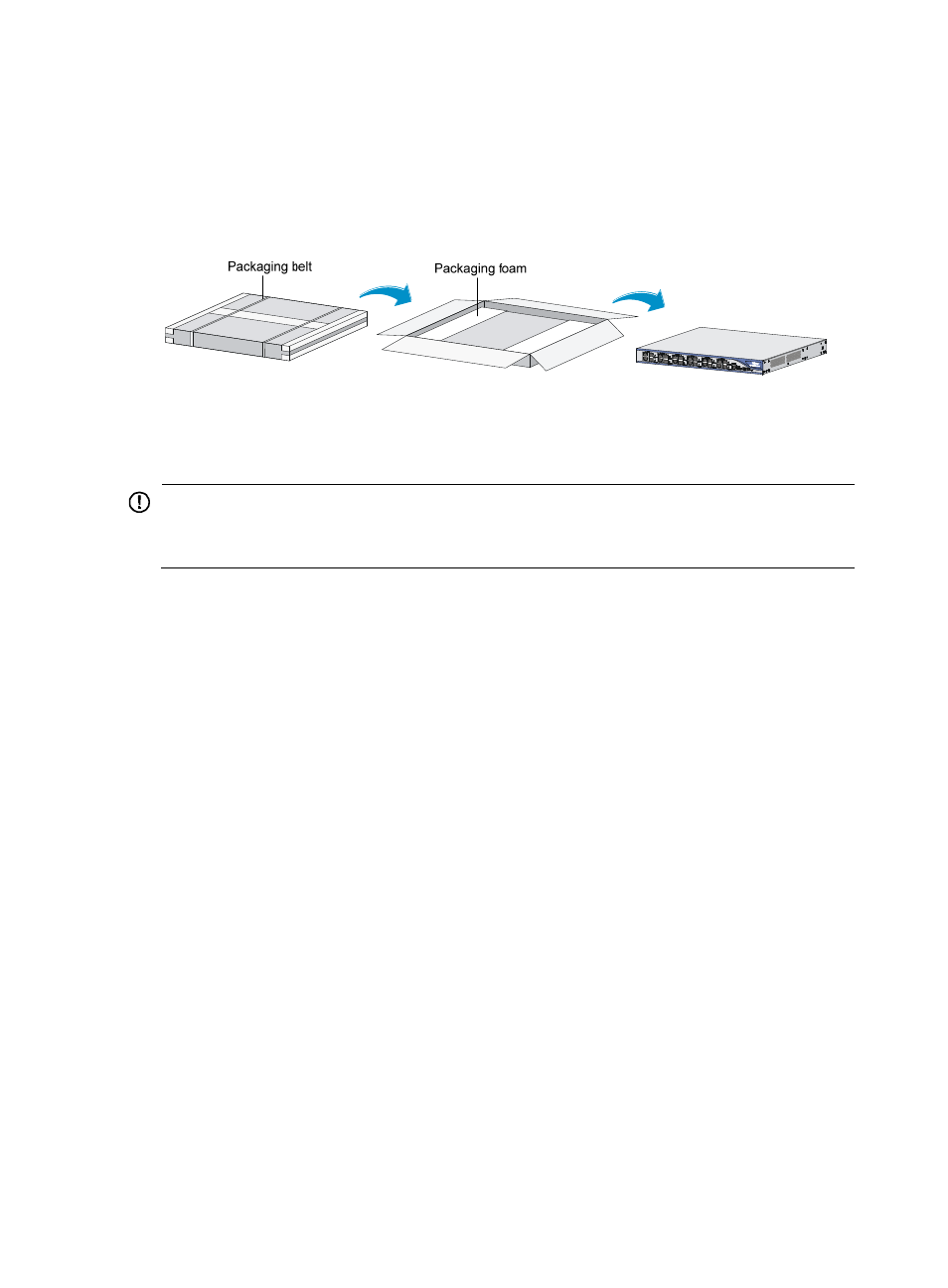

Figure 4 Unpacking the L1000-A
Mounting the L1000-A on a workbench
IMPORTANT:
•
Ensure good ventilation and 10 cm (3.94 in) of clearance around the chassis for heat dissipation.
• Avoid placing heavy objects on the L1000-A.
To mount the L1000-A on a workbench:
1. Verify that the workbench is sturdy and well grounded.
2. Place the L1000-A with bottom up, and clean the round holes in the chassis bottom with dry cloth.
3. Attach the rubber feet to the four round holes in the chassis bottom.
4. Place the L1000-A with upside up on the workbench.
Installing the L1000-A in a 19-inch rack
This task requires at least two people.
To install the L1000-A in the rack:
1. As shown in Figure 5 , mark the positions of the cage nuts on the front rack posts by using a front
mounting bracket.
