15

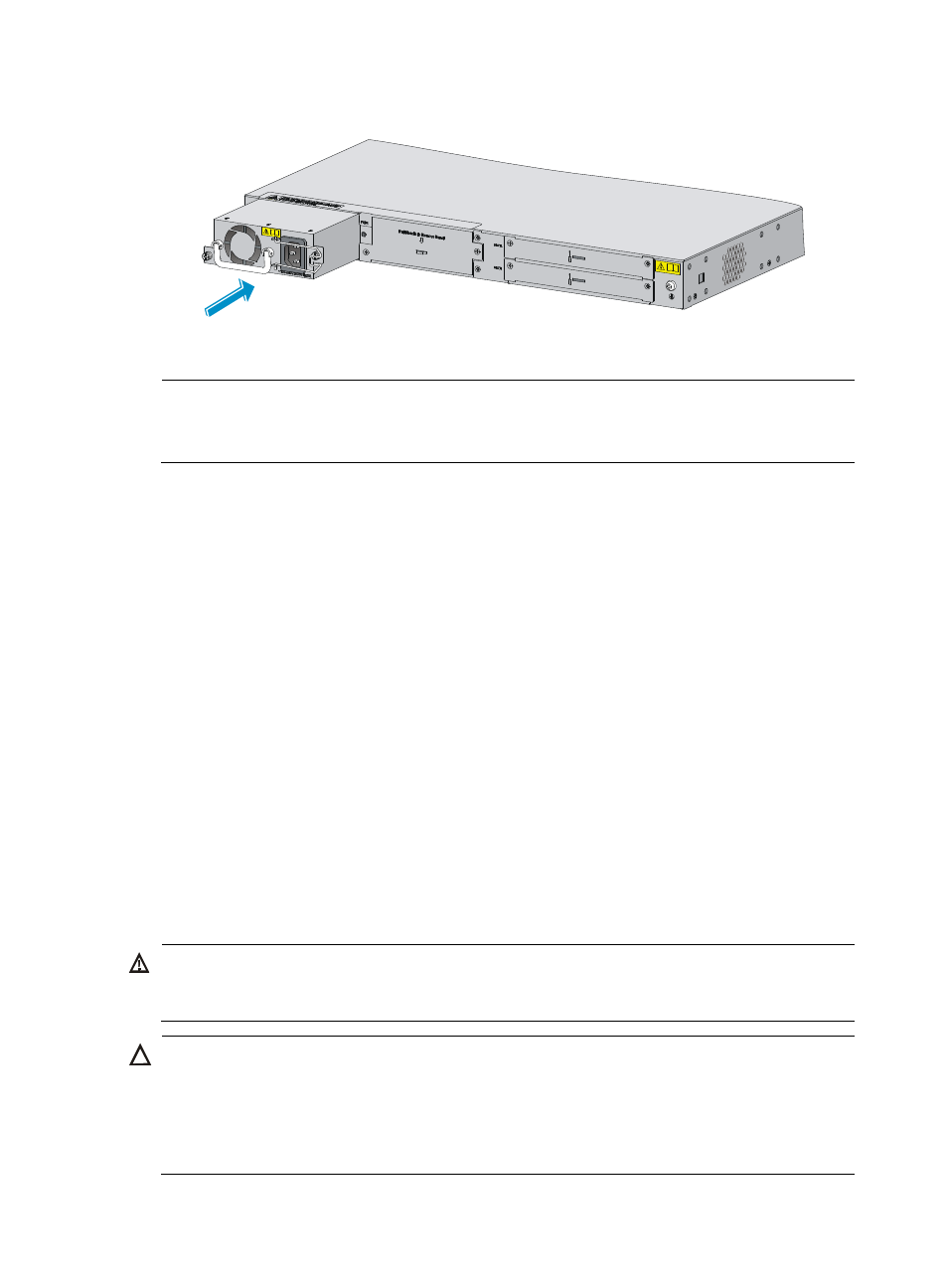

Figure 12 Installing the power module
5. Fasten the captive screws on the power module with a Phillips screwdriver.
NOTE:
•
For more information about power module LEDs, see " Appendix B LEDs ."
• An AC power module and a DC power module cannot be installed on the same L1000-A.
Connecting interface cables
Connecting a copper Ethernet port
You can use category-5 or above twisted pair cables to connect the 10Base-T/100Base-TX/1000Base-T
ports on the L1000-A to the network. These ports use RJ-45 connectors and support MDI/MDI-X
auto-sensing. For more information about twisted pair cables, see " Ethernet twisted pair cable ."
To connect a 10Base-T/100Base-TX/1000Base-T port to a peer device:
1. Plug one end of a twisted pair cable into the port.
2. Plug the other end of the twisted pair cable into the RJ-45 Ethernet port of the peer device.
3. Examine the port LED status.
For more information about the LED status, see "
Appendix B LEDs ."
After you connect the L1000-A to the network, execute the ping or tracert command to test network
connectivity. For more information about the commands, see the command reference of the L1000-A.
Connecting a fiber port
WARNING!
Do not stare into any fiber port when you connect an optical fiber. The laser light emitted from the optical
fiber may hurt your eyes.
CAUTION:
•
Be sure to install the dust cover if the fiber port is not connected to a fiber connector.
• Never bend or curve a fiber when connecting it. The bend radius must be at least 10 cm (3.94 in).
• Keep the end of the fiber clean.
• Make sure the Tx and Rx ends of the SFP transceiver module are correctly connected.
