12

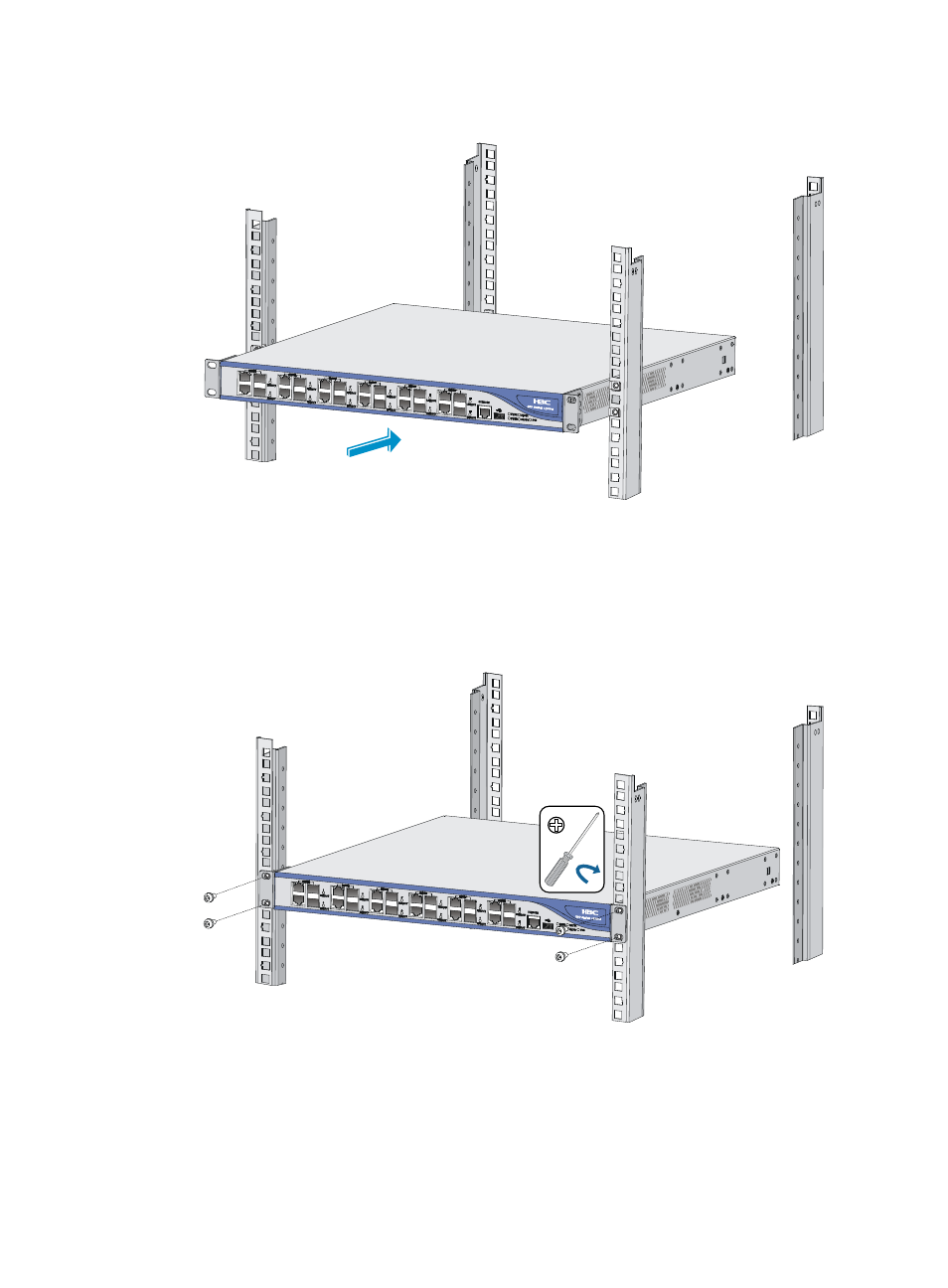

Figure 8 Sliding the L1000-A into the rack
5.
Attach the L1000-A horizontally by fastening the mounting brackets to the rack with appropriate
pan head screws.
The specifications of pan head screws must satisfy the installation requirements, and rustproof
treatment has been made to their surfaces.
Figure 9 Mounting the L1000-A to the rack
