Configuring the DHCP relay agent
60B
Overview
The DHCP relay agent enables clients to get IP addresses from a DHCP server on another subnet. This
feature avoids deploying a DHCP server for each subnet to centralize management and reduce
investment.
697H
Figure 20 shows a typical application of the DHCP relay agent.

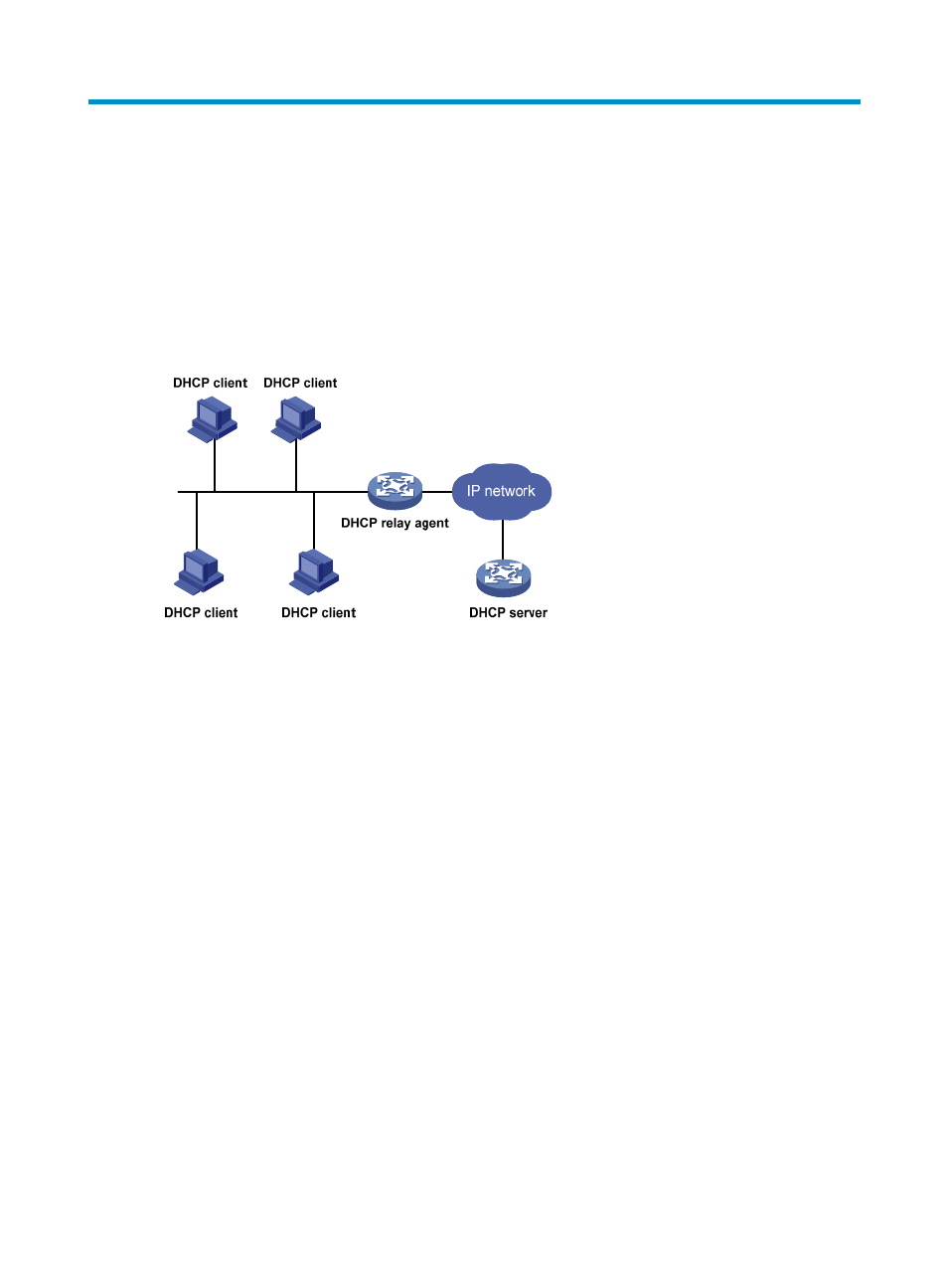

Figure 20 DHCP relay agent application
An MCE device serving as the DHCP relay agent can forward DHCP packets not only between a DHCP
server and clients on a public network, but also between a DHCP server and clients on a private network.
For more information about MCE, see MPLS Configuration Guide.
212B
Operation
The DHCP server and client interact with each other in the same way regardless of whether the relay
agent exists. For the interaction details, see "
698H
Dynamic IP address allocation process ." The following only
describes steps related to the DHCP relay agent:
1. After receiving a DHCP-DISCOVER or DHCP-REQUEST broadcast message from a DHCP client,
the DHCP relay agent fills the giaddr field of the message with its IP address and unicasts the
message to the designated DHCP server.
2. Based on the giaddr field, the DHCP server returns an IP address and other configuration
parameters in a response.
3. The relay agent conveys the response to the client.
