Step 3: install the straight tube, Optional: add extension tube(s) – ACTi Outdoor PTZ / Speed Dome (I9x) on Horizontal Pole with Pendant Mount User Manual
Page 7
Installation Guide
5.

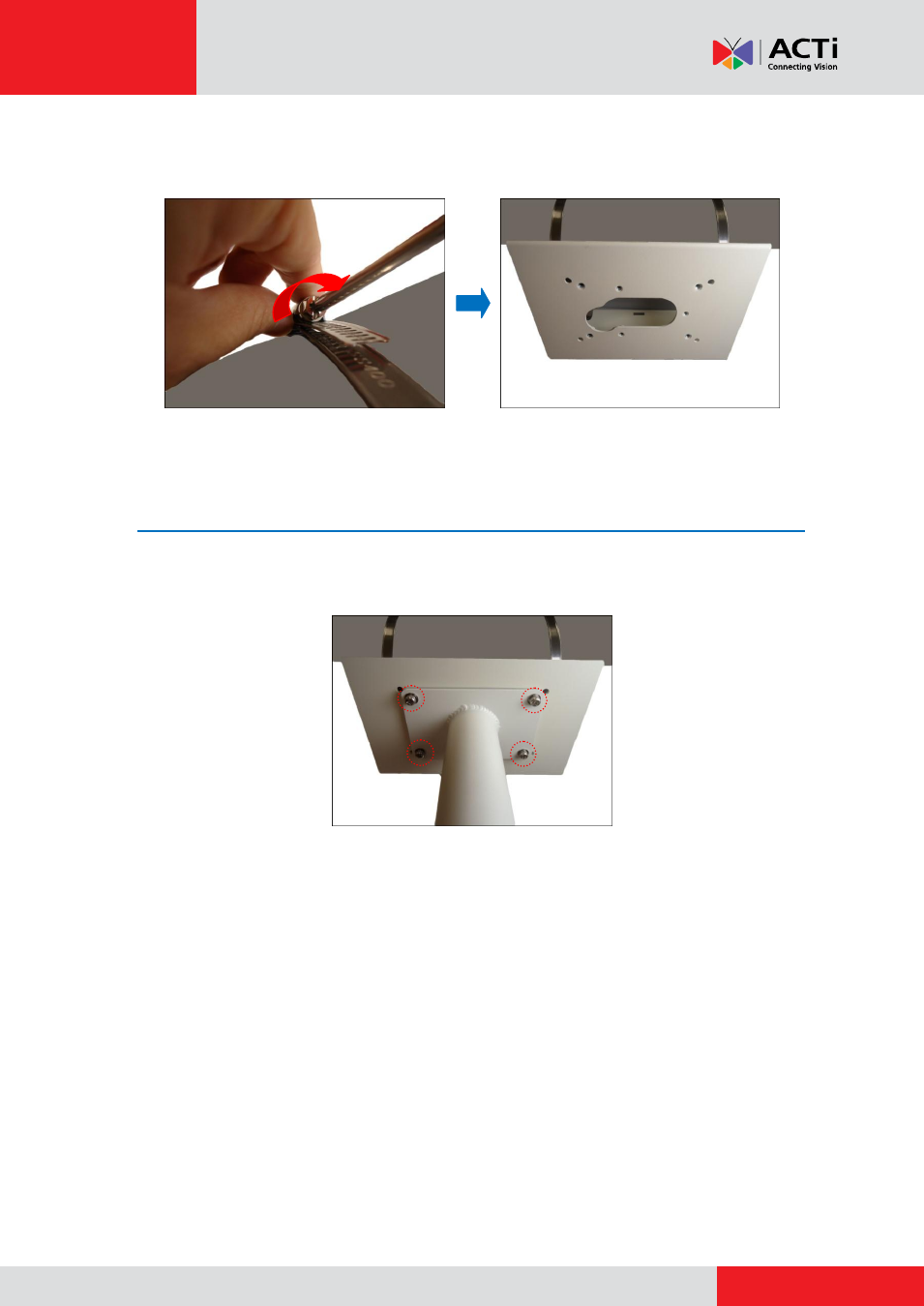

Continuously turn the screw head clockwise to adjust the wire strap until it snugly fits the pole.
Do the same to the other wire strap.
Step 3: Install the Straight Tube
Attach the straight tube onto the pole mount using the four (4) screws (included in the Pole Mount
Kit package).
Optional: Add Extension Tube(s)
If the straight tube is not long enough, add one or more extension tubes (purchased separately).
If more than one extension tubes will be used, use extension cables, like network cables (not
included in the package) to extend the length of the pre-installed camera cables. See
on page 31.
This manual is related to the following products:
- Outdoor PTZ / Speed Dome (I9x) on Hard Ceiling with Pendant Mount Outdoor PTZ / Speed Dome (I9x) on Straight Wall with Accessory Sets of PMAX-0305 Outdoor PTZ / Speed Dome (I9x) on Vertical Pole with Accessory Sets of PMAX-0305 Outdoor PTZ / Speed Dome (I9x) on Corner Wall with Accessory Sets of PMAX-0305
