Installation Guide
Pole Mount with Pendant Mount
Installation Procedures
The camera body and cables are waterproof. However, when using this type of installation
outdoors, you must take steps to waterproof the cable connections.
The bundled power adapter and power cord, approximately 200 cm in length, are not waterproof
and must be protected indoors. Therefore with this type of installation, it is recommended to use a
high PoE injector (purchased separately) to connect the camera to the power outlet and the
network.
Before installation, prepare the tools and equipment which are not supplied with the mounting
accessory:
Exterior-grade Ethernet Cables
High Power-over-Ethernet (PoE) Injector
Waterproof Tape
Step 1: Unpack the Camera
NOTE:
To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain
the plastic covering the dome cover until the camera is completely installed.

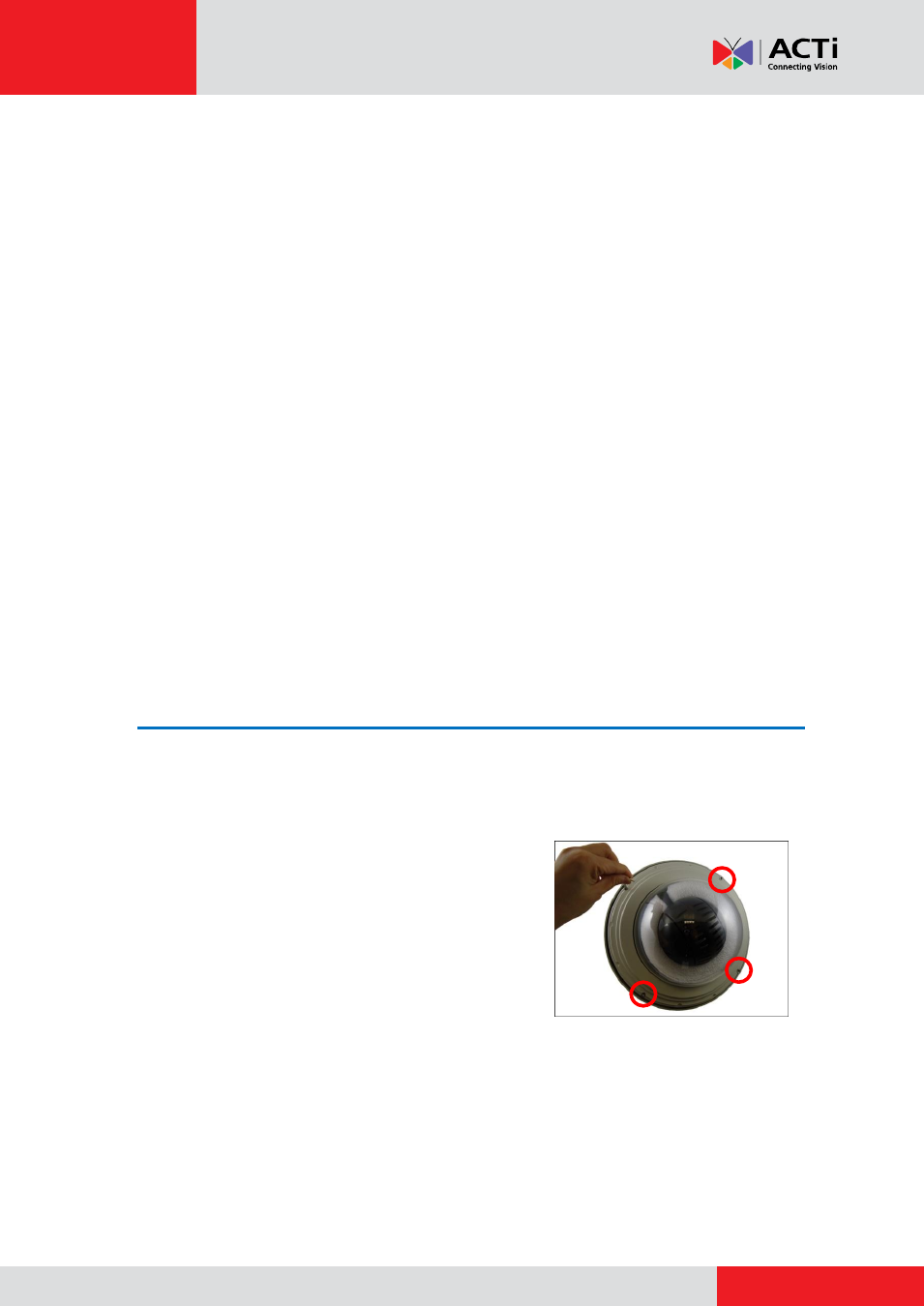

1.
Loosen the four screws using the bundled Allen
wrench.
- Outdoor PTZ / Speed Dome (I9x) on Hard Ceiling with Pendant Mount Outdoor PTZ / Speed Dome (I9x) on Straight Wall with Accessory Sets of PMAX-0305 Outdoor PTZ / Speed Dome (I9x) on Vertical Pole with Accessory Sets of PMAX-0305 Outdoor PTZ / Speed Dome (I9x) on Corner Wall with Accessory Sets of PMAX-0305
