44 CHAPTER 4 • SENSOR TOOLBAR
the Set Collection Interval To: field will be disregarded.
2 Click the Set Collection Interval button. Once the interval is set, the results will be
listed for each sensor (see Figure 4.14).

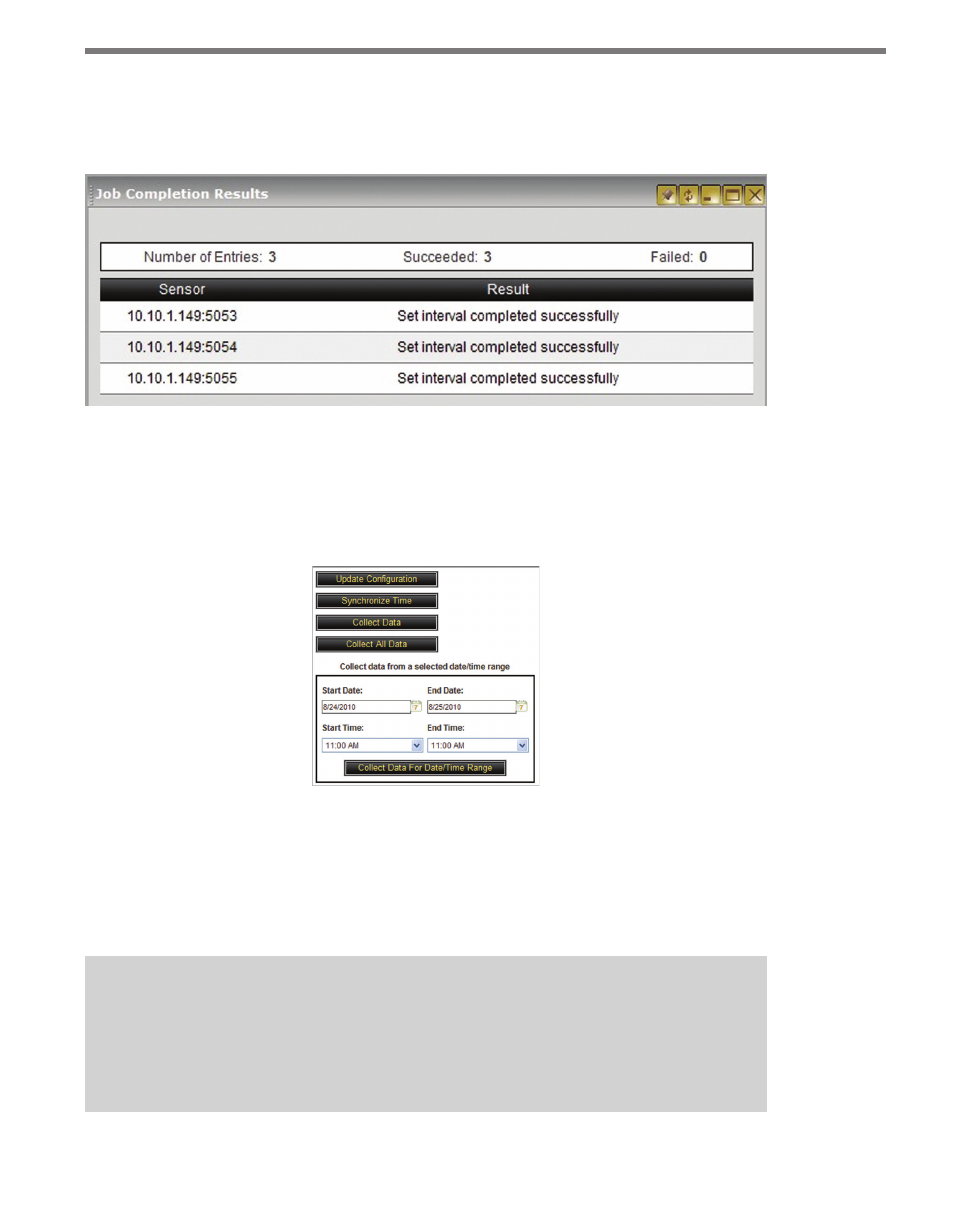

Figure 4.14 – Interval Completion Results
Commands
The Commands button opens the Commands window (see Figure 4.15).
Figure 4.15 – Commands Box
The list below contains information about the Command window:
˽ Update Configuration – Causes Collector to immediately try to connect to all selected
sensors and download any relevant configuration information, such as Location, De-
scription, Sensor Interval and Lane Configuration to the Collector database.
Note
Collector will automatically attempt to update the configuration on a regular basis
(see the Timer Settings section in Chapter 6). The sensor’s firmware must support
the Update Configuration command for it to work.
