Installing the Satellite Speaker Wires
1. Remove the panel where you just finished installing the
speakers.
2. Locate two speaker wire sets (P/N 01564-21). The wires
have clear insulator with a silver and copper wire and female
connectors on one end.
3. Using a Cable Tyes and Cable Mounts (P/N 01200-006 and
01200-005), attach the wires to the frame in the approximate
location of the speakers directly below the edge of the spa,
see Figure 45, until you come to the corner panel.

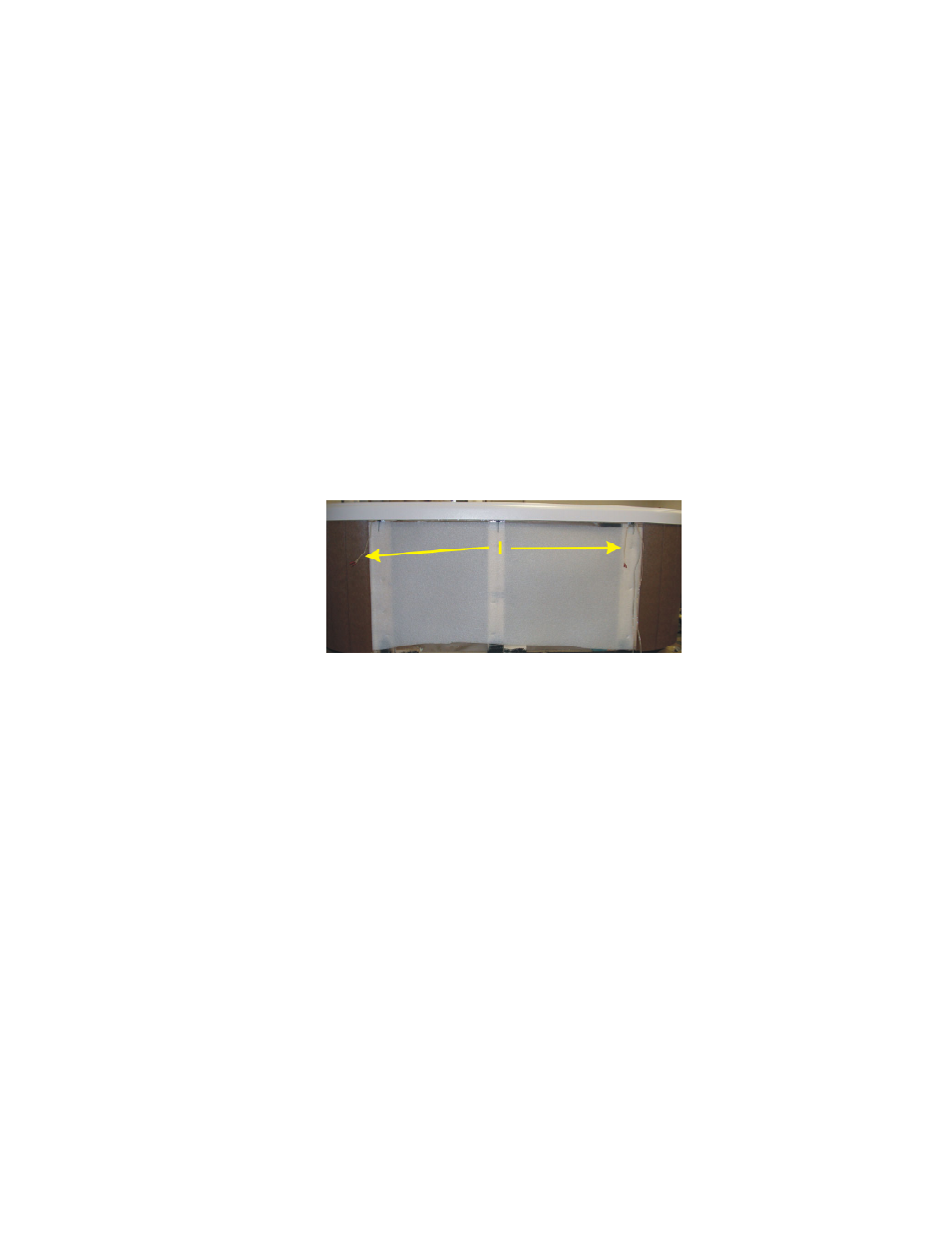

1. Speaker Wires Attached with Cable Tyes and Mounts
Figure 45. Speaker Wires Attached
4. When you get to the corner panel use a thin, blunt object to
force the wires up under the overhanging lip of the spa and
the panel, Figure 46.
