3. The point where these two lines intersect is the upper right
corner of the template (P/N Doc 74 Rev A).
4. Align the upper right corner of the template with the mark
on the panel. Use a center punch to mark the spot, Figure 36.

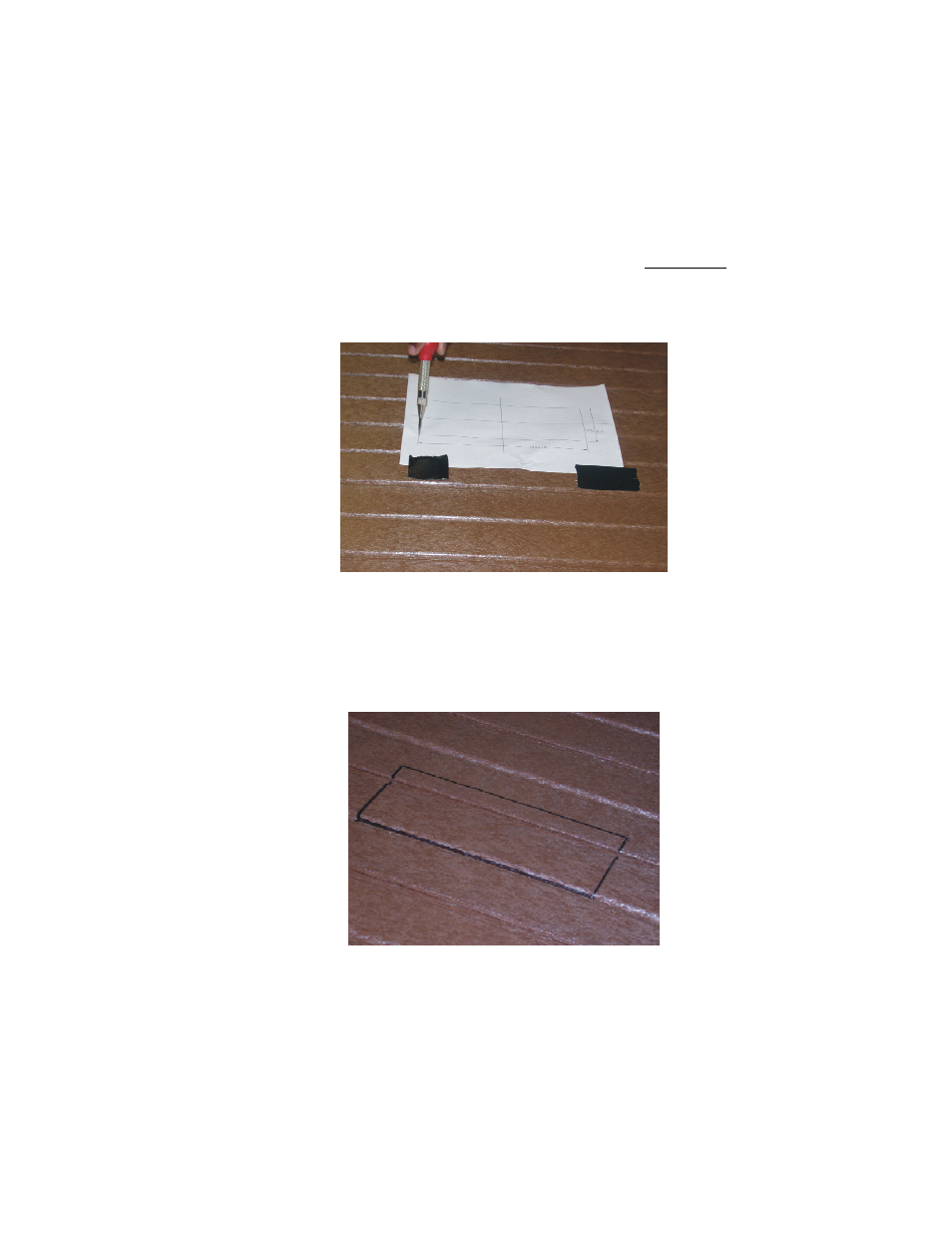

Figure 36. Aligning Template
5. Square up the template on the panel and use the center
punch to mark the other three corners.
6. Using a machinist’s square or straight edge, connect all four
marks, Figure 37.
Figure 37. Connecting Marks
