Dimension One Spas 01510-1030E Rev A User Manual
Page 38
Export Sonic Immersion System Dealer Installation Guide

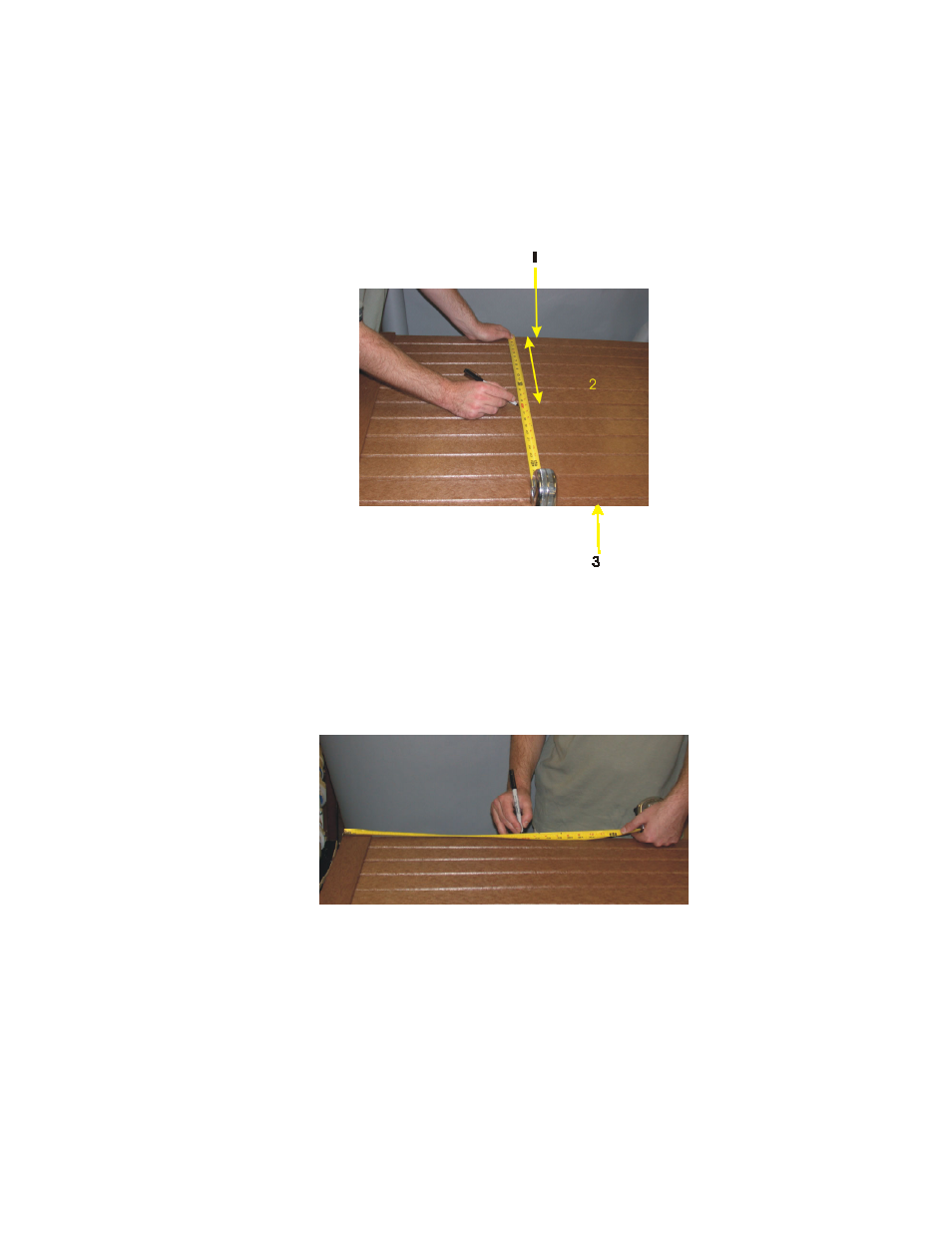

1. Bottom of Panel 2. Panel Lay Face Up 3. Top of Panel
Figure 34. Measuring Vertical Distance
2. Using measurement obtained for Horizontal Position (HP),
measure from side of panel, see Figure 35, and mark spot
with a fine point marker.
Figure 35. Measuring Horizontal Distance
34
