Export Sonic Immersion System Dealer Installation Guide

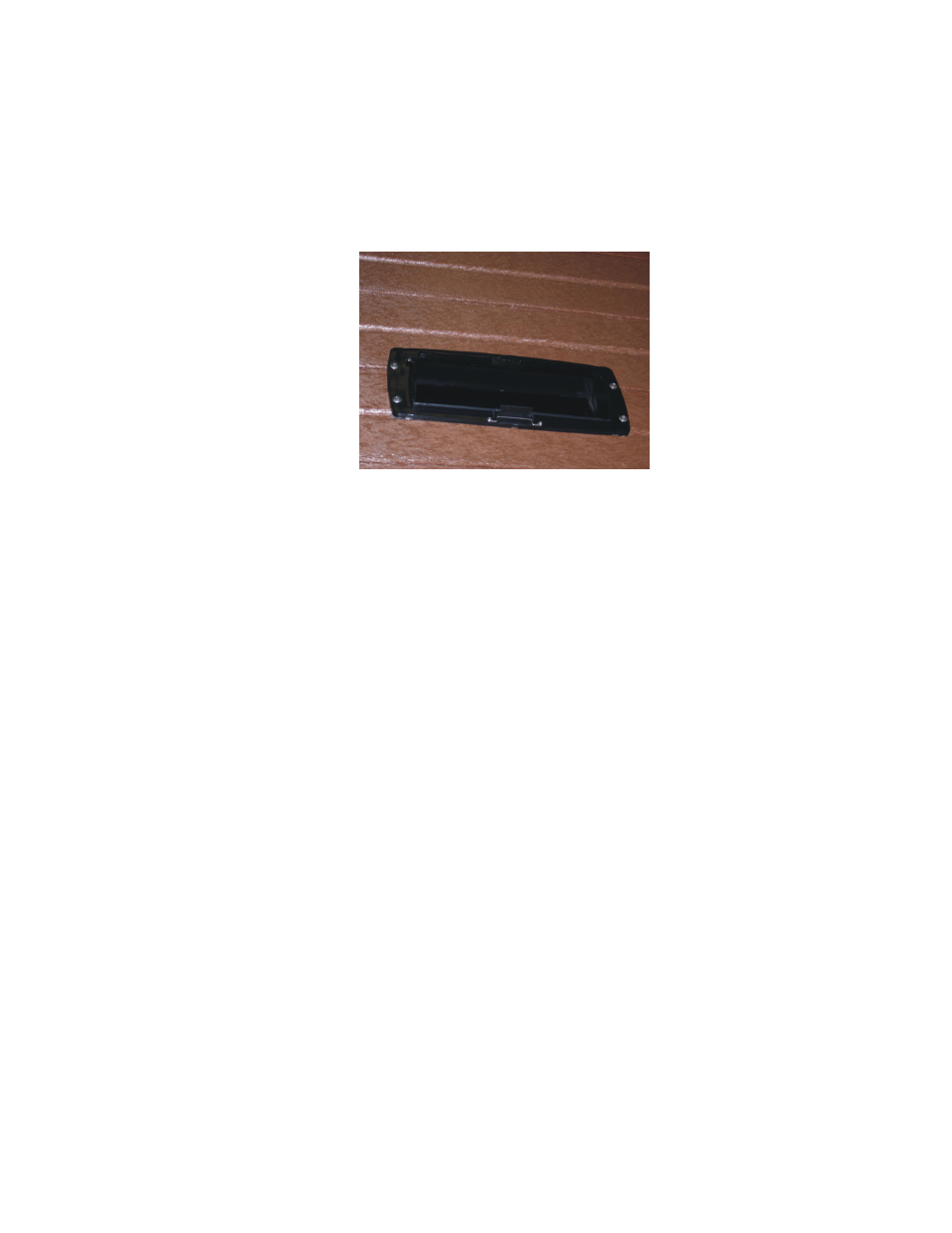

Figure 41. Door Assembly Installed
4. Reattach the bezel.
5. Locate the mounting sleeve supplied with the CD player and
refer to the CD Player Owner’s manual for directions on
how to install this sleeve. Once the CD player mounting
sleeve is installed in the panel, proceed to the following
paragraph.
Installation of Panel and CD Player
1. Place the Dual Pole Antenna (P/N 01564-05) in the
equipment compartment.
2. Place the panel up against spa so that you can pull the main
harness, antenna, and amplifier cables through the door
assembly, Figure 42.
38
