Dimension One Spas 01510-1030E Rev A User Manual
Page 33
Export Sonic Immersion System Dealer Installation Guide
1. Location of Upper and Lower Screw Holes

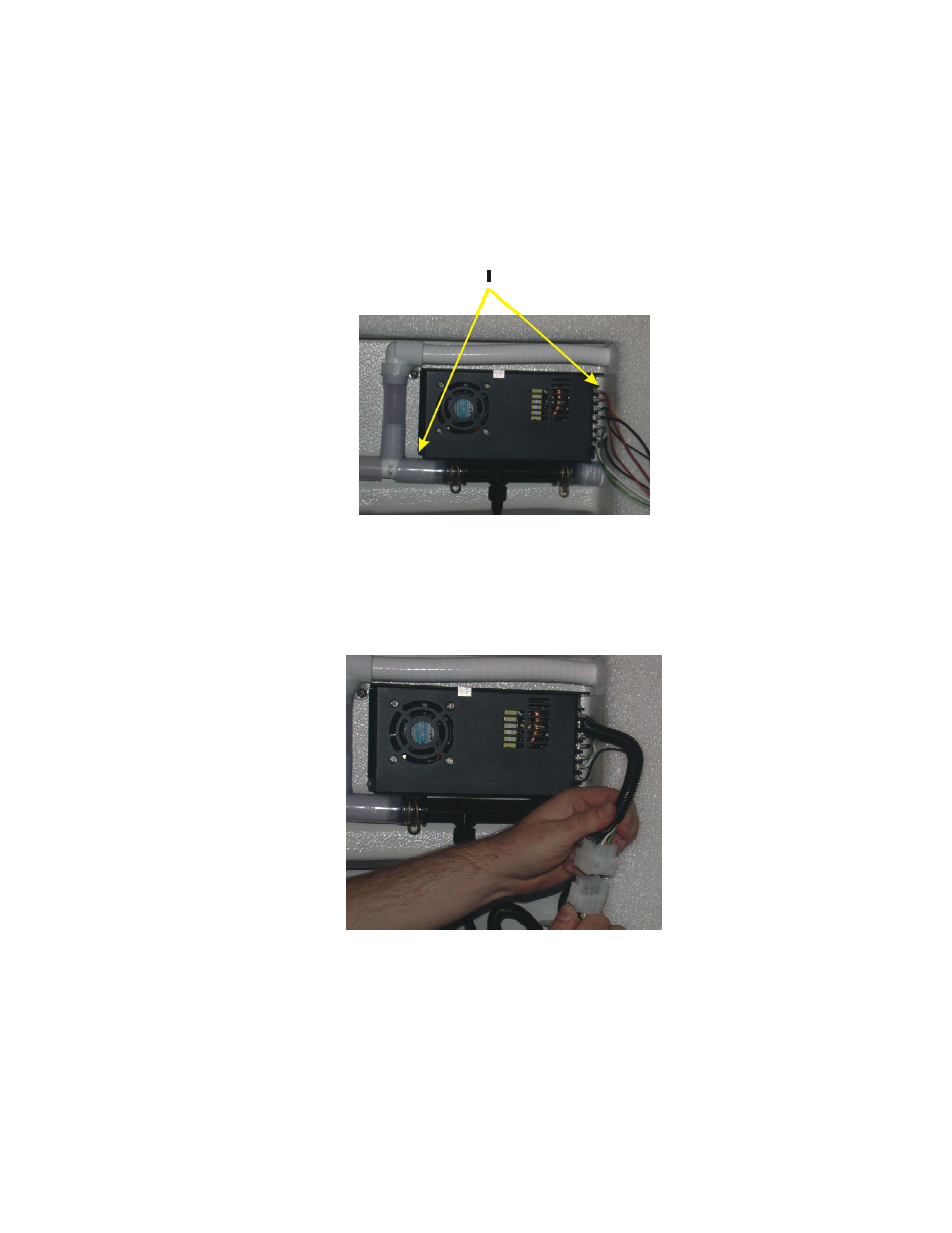

Figure 29. Location of Attachment Holes on Power
Supply
3. Locate the connector on the harness assembly that matches
the one that you just installed on the power supply and
connect them together, Figure 30.
Figure 30. Connecting Harness to Power Supply
29
