Export Sonic Immersion System Dealer Installation Guide
1. Fish
Tape

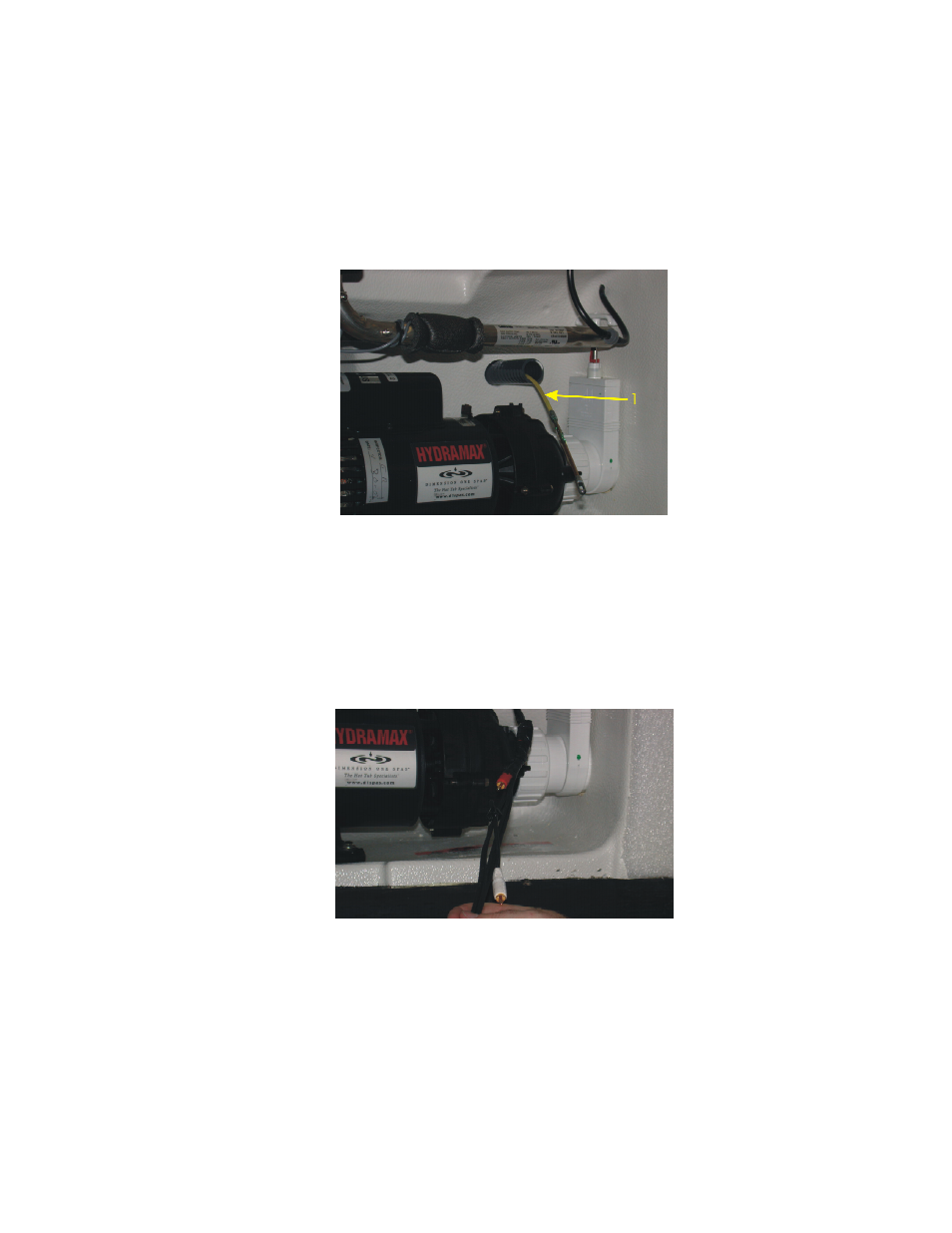

Figure 14. Fish Tape in Equipment Compartment
2. Now locate the amplifier cables (two white and two red RCA
connectors on both ends, P/N 01570-24). Locate the three-
branched harness assembly (P/N 01564-20). One branch will
be considerably longer than the other two.
3. Attach the preamp stereo cables (01570-24) and long branch
of main harness (01564-20) to fish tape using electrical tape,
Figure 15.
Figure 15. Attaching Cables and Harness to Fish Tape
