Export Sonic Immersion System Dealer Installation Guide
Installing the Satellite Speakers
Locate the panel where you will install the speakers, Figure 43.

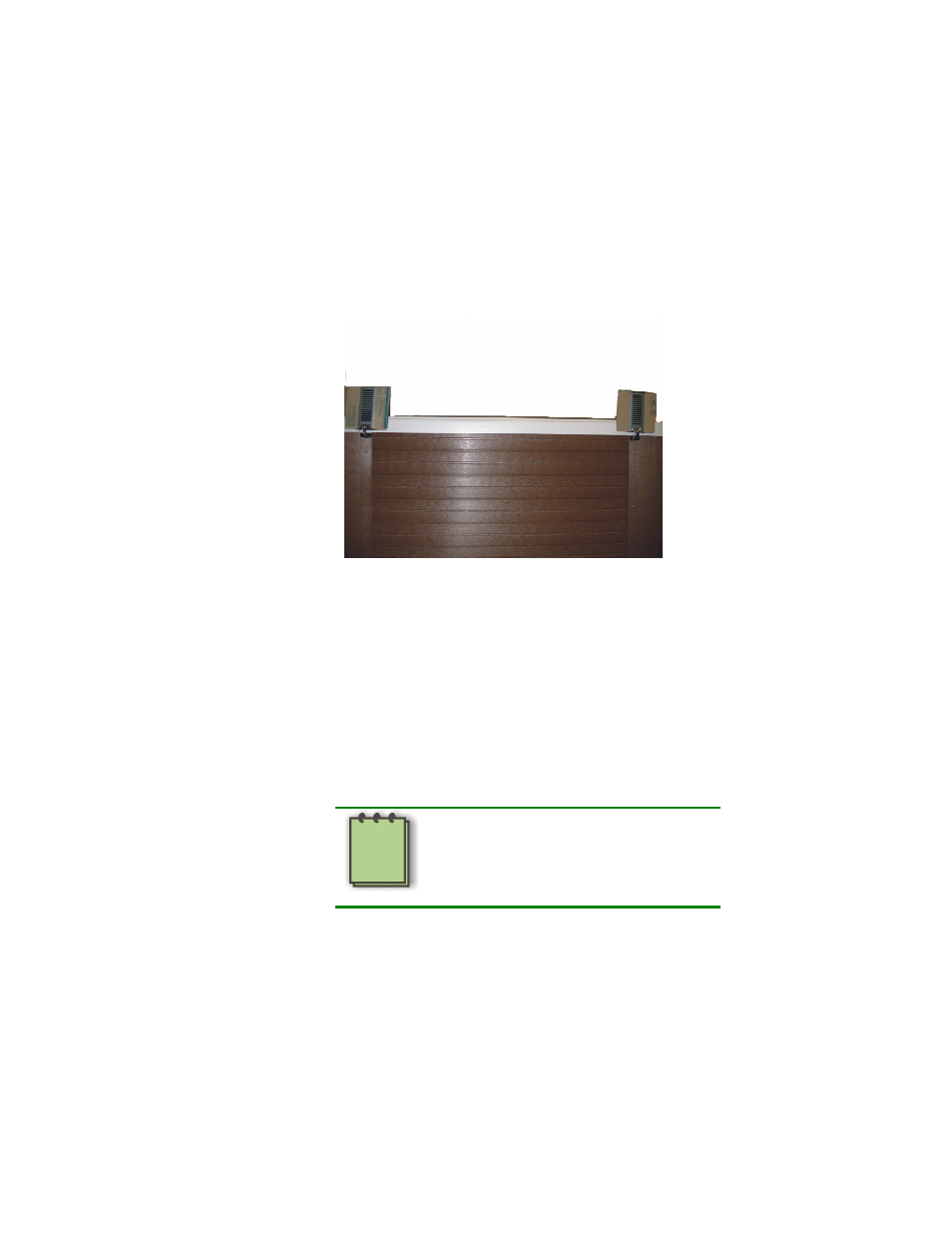

Figure 43. Typical Satellite Speaker Installation
1. Take the hinge mounting bracket connected to the speaker
(P/N 01564-14) and place it on the panel with the top
triangular portion of the hinge butting up against the lower
edge of the overhanging spa lip.
2. Remove the protective caps from the hinge screw holes and
using a center punch mark the locations for the screws.
3. Locate the four mounting screws that come with the hinges.
Using an electric screwdriver, attach the hinges to the spa
panel.
Note
To prevent wood panels from splitting,
drill pilot holes before installing the
hinges.
4. Replace the protective caps over the hinge screw, Figure 44.
40
