Export Sonic Immersion System Dealer Installation Guide
to red and white terminals on left, connect Channel 2 (sub-
woofer speaker) to red and white terminals on right, Figures
21 and 22.

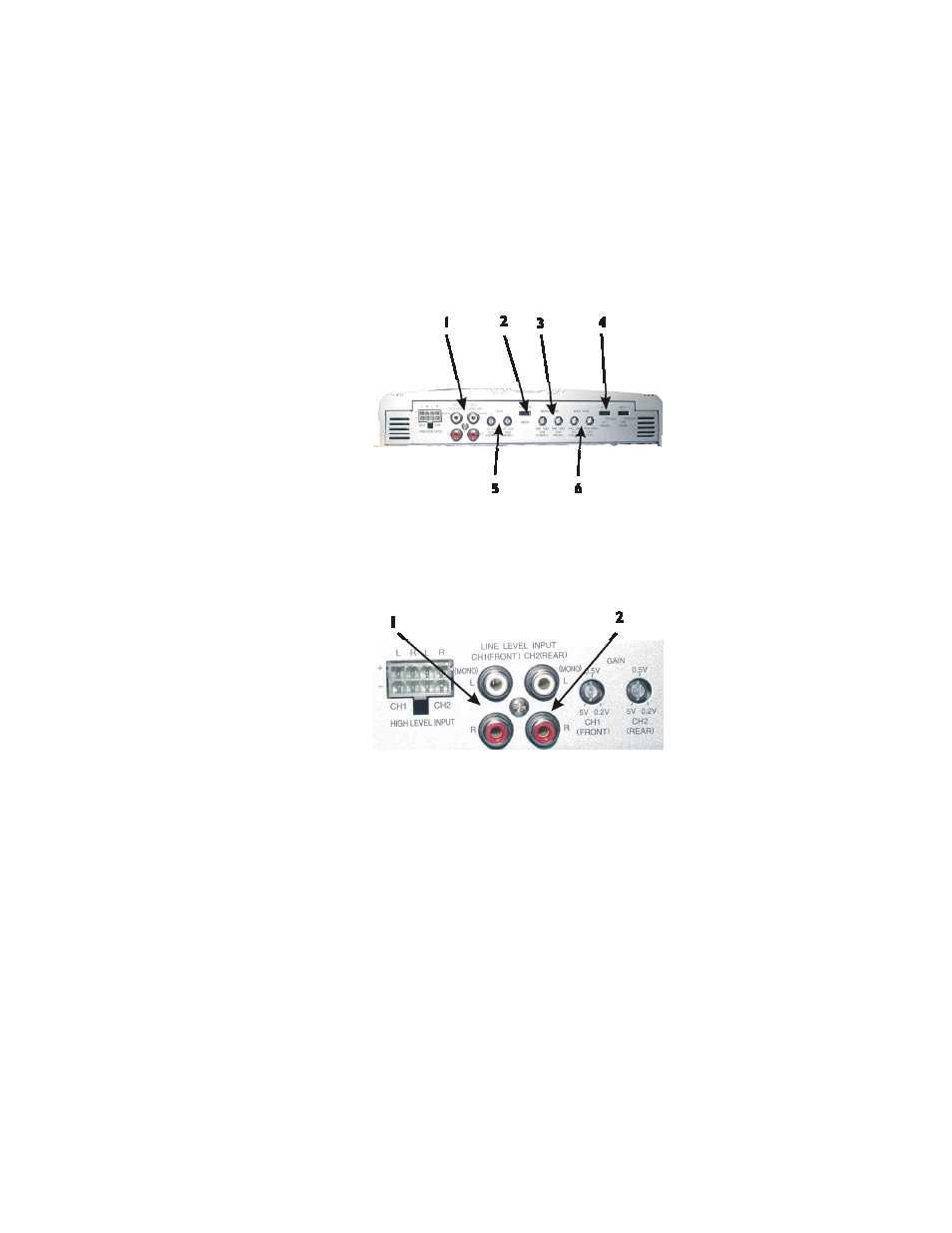

1. Line Level Input 2. Mode Control 3. Bass Boost Control 4.
HP/LP Crossover Control 5. Gain Controls 6. High Pass
Controls
Figure 21. Terminals and Controls
1. Channel 1 (used for Satellite Speakers) 2. Channel 2 (used for
Sub Woofer Speakers
Figure 22. Connecting Wires to Channel 1 and 2
10. Set GAIN CH 1 and CH 2 to 0.5V position, Figure 23.
11. Set MODE to the 3ch position.
24
