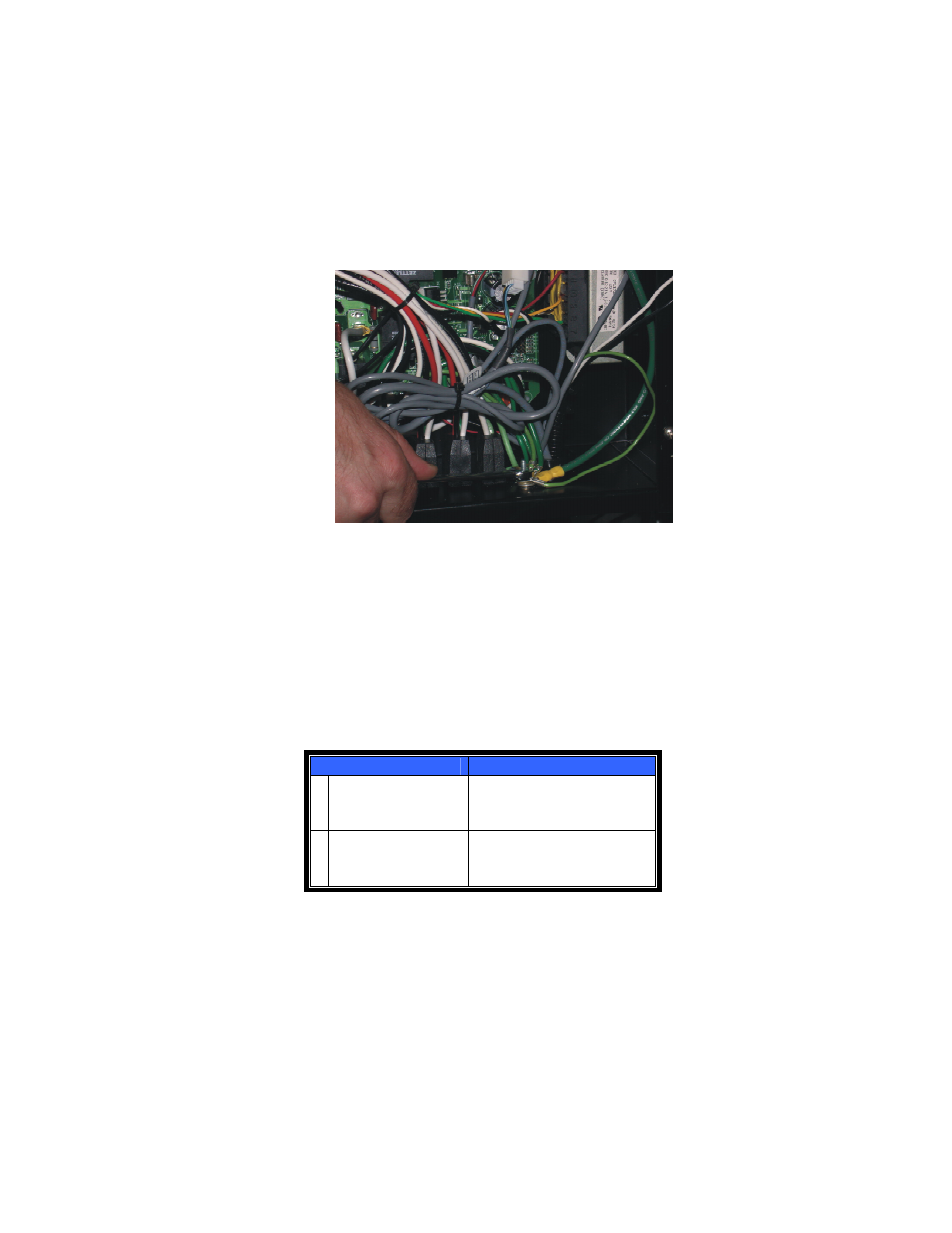

Figure 32. Removing Nut from Ground Terminal
3. Now place the green ground wire that you just inserted into
the lower control box over the screw, replace 5/16” (7.9
mm) nut, and secure with 5/16”(7.9 mm) nut driver or
wrench.
4. Connect the white and black wires to the pins as outlined in
Table 5.
Table 5 Pin Connectors
Board Description Pin Connections
MSPA-1-CE (240
V, 50Hz)
International
Green – ground
White – P-98
Black – P-44
MSPA-MP-CE (240
V, 50 Hz)
International
Green – ground
White – P-80
Black –P-39
