Export Sonic Immersion System Dealer Installation Guide
2. Connect the wires coming from Row 2 (Stereo +12 V Supply)
as follows: (Figure 26) yellow and red wires to terminal
marked “DC+” and the black wire to terminal marked “DC-
“.
1. Black Wire 2. Red and Yellow Wires

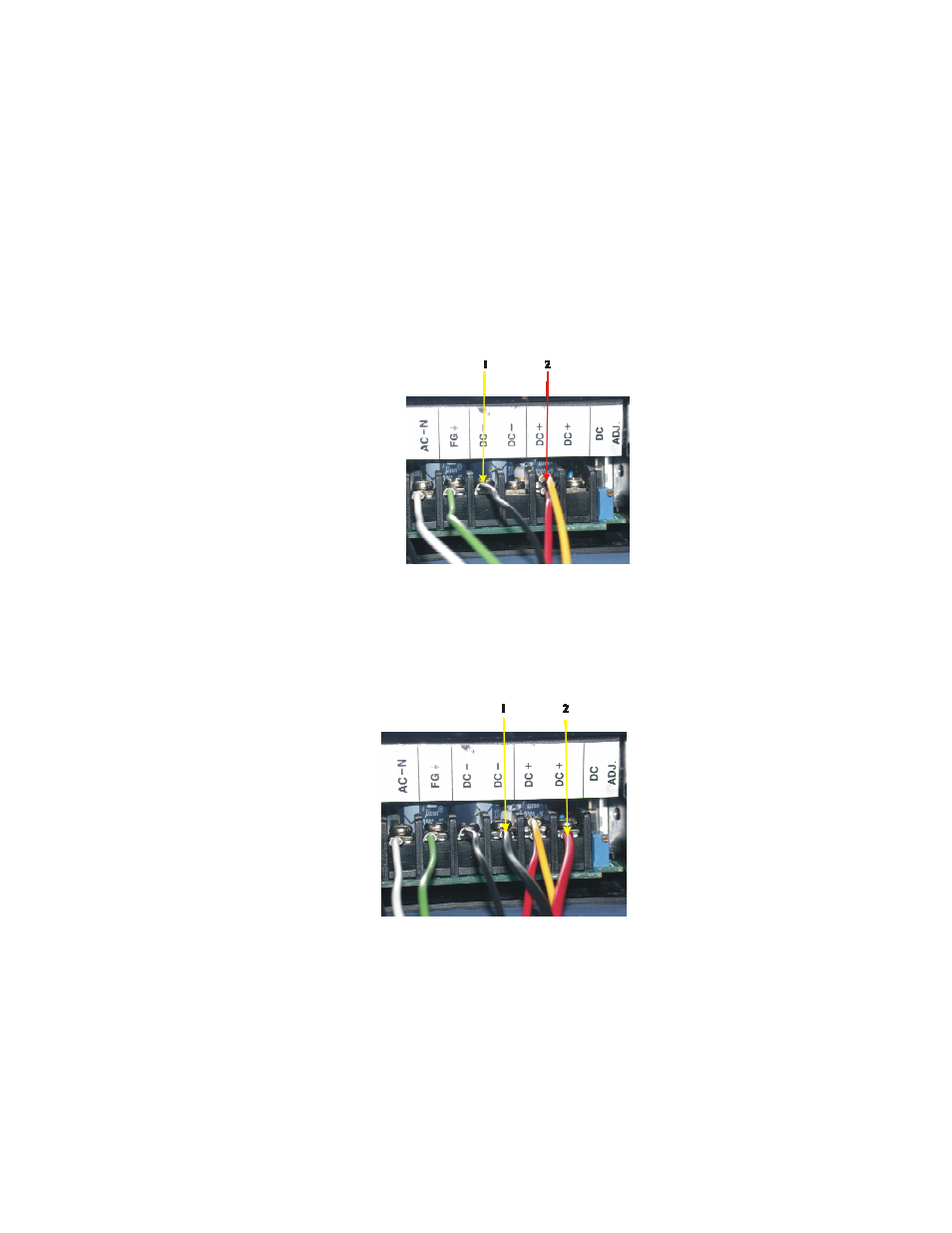

Figure 26. Connecting Wires to Stereo and 12 V Supply
Terminals on Power Supply
3. Connect the wires coming from Row 3 (Amplifier) as follows
(see Figure 27): red wire to unused terminal marked “DC+”
and black wire to unused terminal marked “DC-“.
1. Black Wire 2. Red Wire
Figure 27. Connecting Wire to Amplifier Terminals on
Power Supply
27
