7. Using a 3/8” (9.5 mm) bit, drill holes in two corners of the
rectangle, Figure 38. Make certain that the holes are within
the lines. Using a center punch to mark the drilling centers
will prevent the drill bit from wandering.

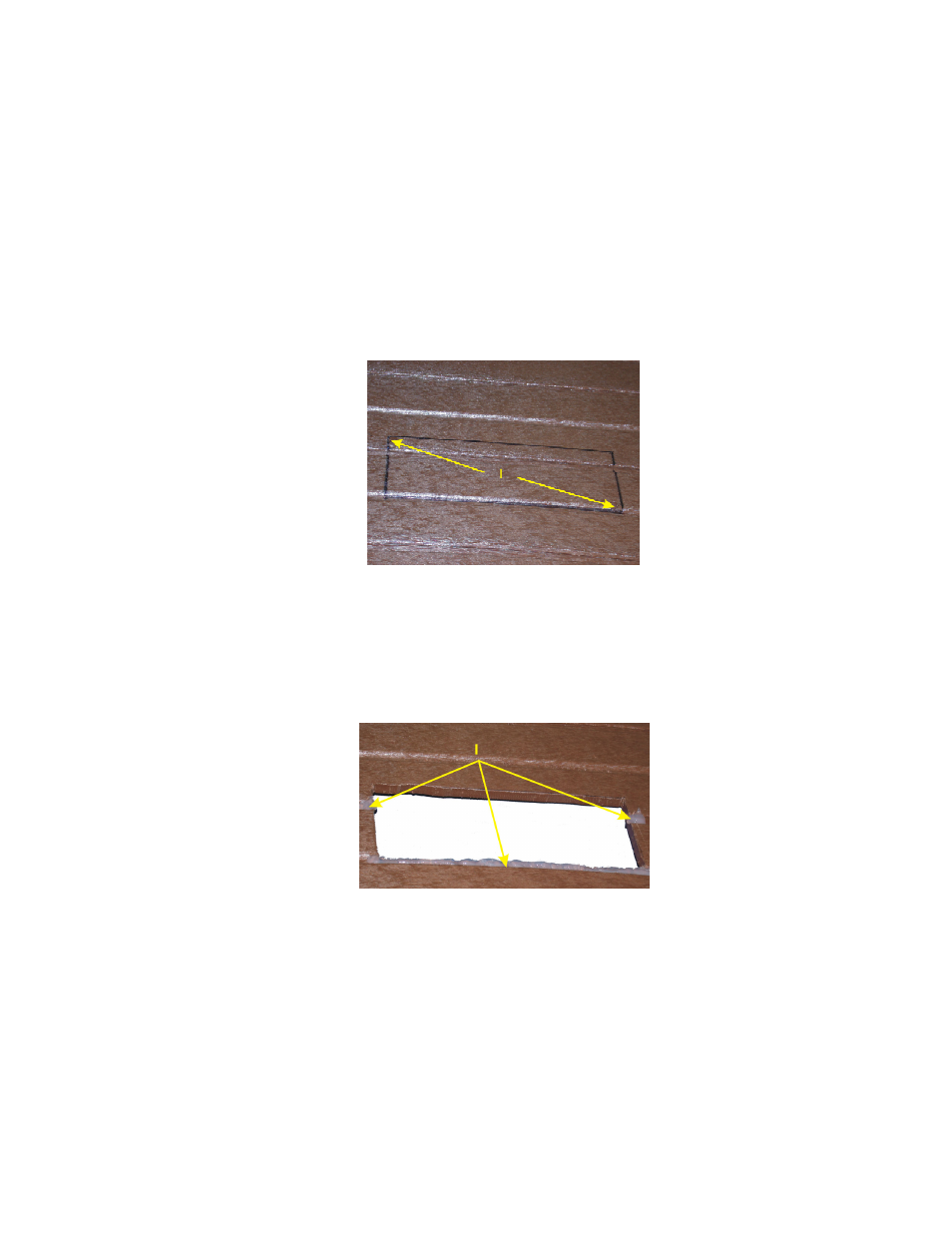

1. Hole Locations
Figure 38. Hole Locations
8. Using a saber saw, cut out the rectangular piece from the
panel.
9. Depending on where the hole in the panel is located you may
need to use some Silicone caulking in the panel grooves to
prevent moisture from entering the CD player, see Figure 39.
1. Panel Cutout with Silicone Applied
Figure 39. Panel Cutout
