SIERRA VIEW
67

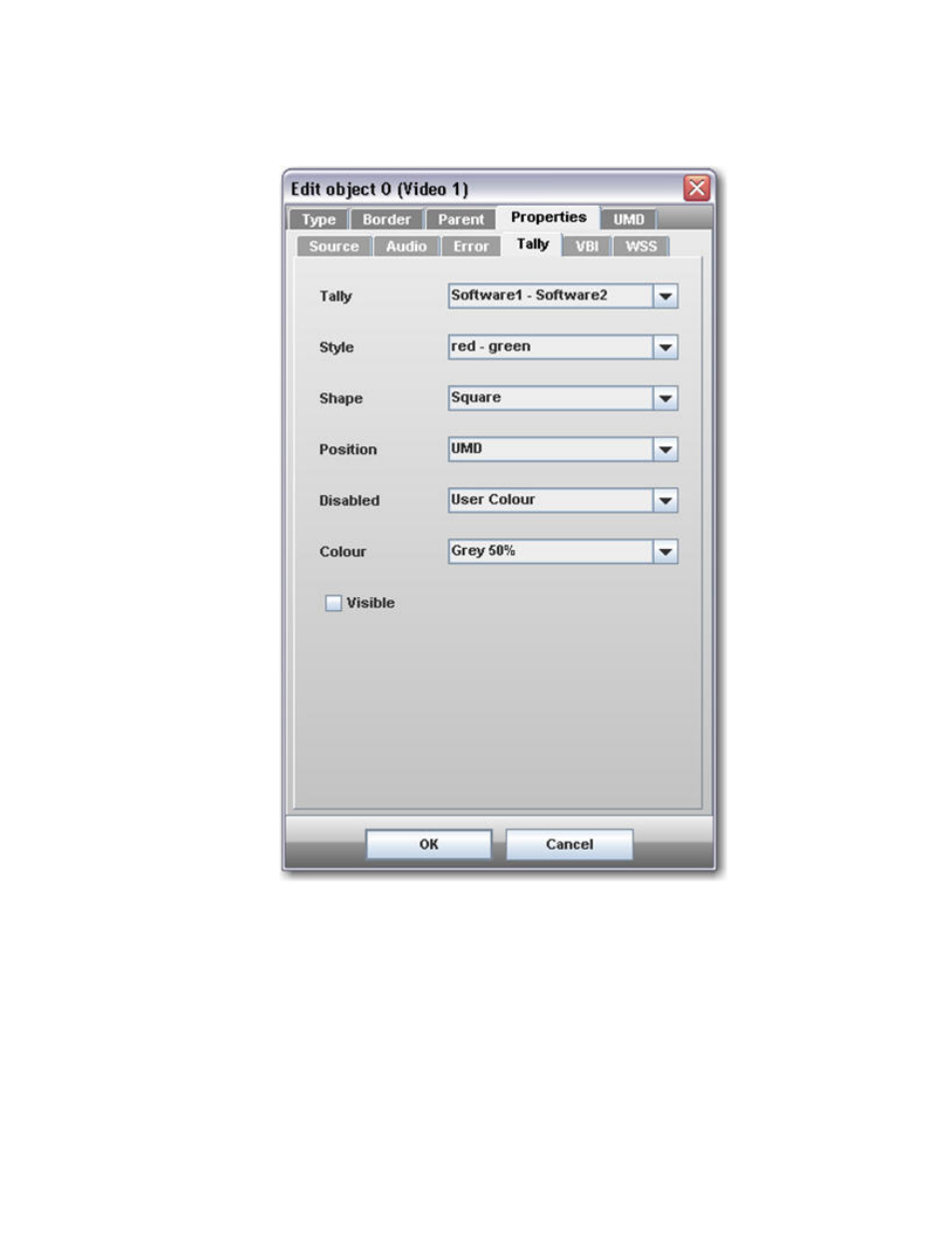

Tally Properties Tab (Video object)
This tab only exists in tiles that are of Video type.
Tally - two tallies can be displayed per video window – select 1-1 or 1-2 as appropriate.
Style - select red-green, green-red, red-red and green-green.
Shape - select fill, square or round.
Position - select UMD, border or UMD and border.
Disabled - sets the disabled color to either default disabled color, UMD color, border
color, or the user selected color set in the box below this control
Color - selects disabled color if disabled color is set to the user-selected source.
Visible - turns the display of the tally on / off.
