MAIN MENU
QC40198 User Manual
53 | P a g e
5.3.5.1 Advanced Network Setup

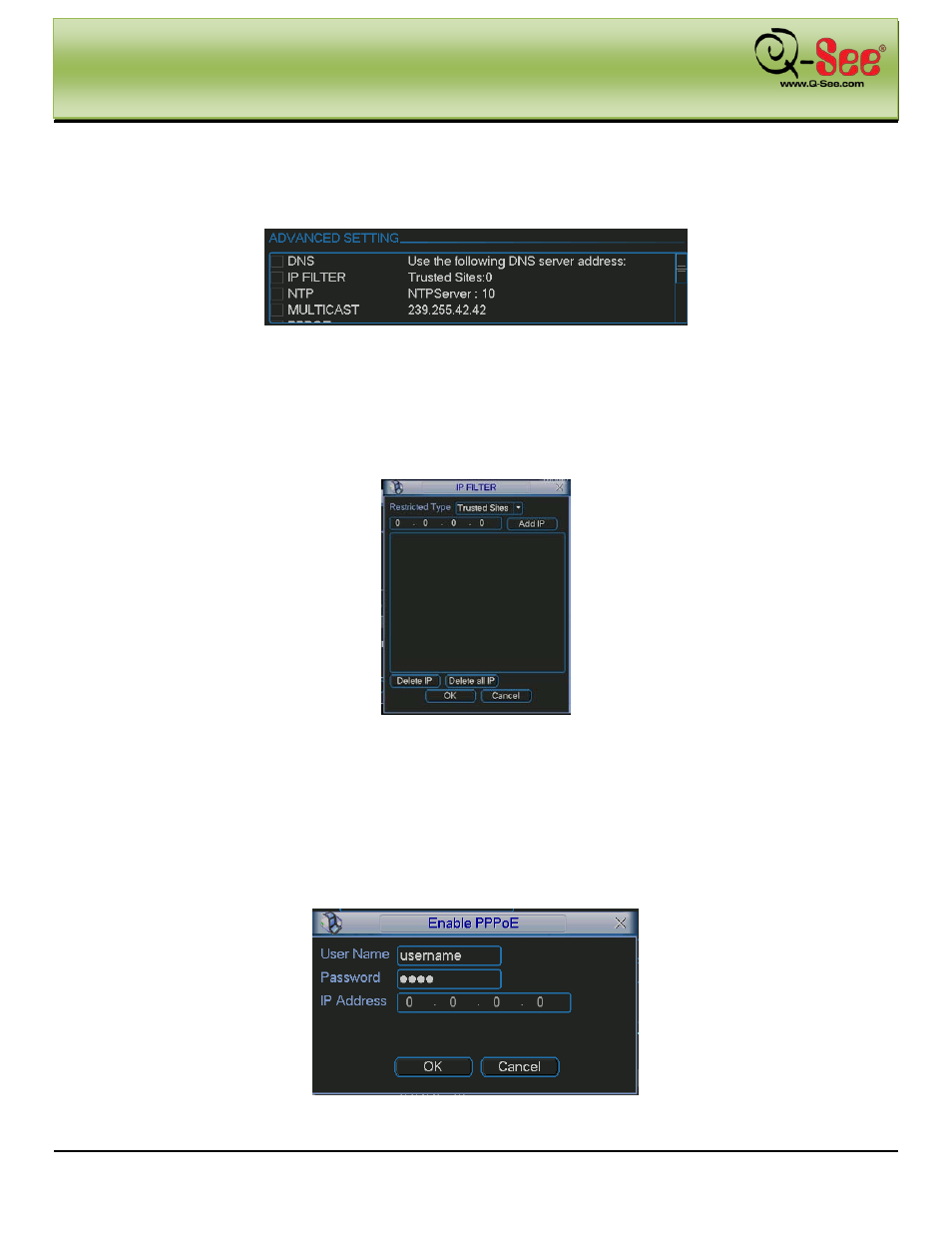

Advanced setup interface is shown in Figure 5-11. Put a checkmark in the box to enable the corresponding function
and then double click current item to go to setup interface.
Figure 5-11
IP Filter
IP filter interface is shown in Figure 5-12. You can add IP in the following list. The list supports up to 64 IP
addresses.
Please note after you enable this function, only the IPs listed below can access the DVR.
If you disable this function, all IP addresses can access the DVR.
Figure 5-12
PPPoE
PPPoE interface is shown in Figure 5-13.
Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider).
Click save button, you need to restart to activate your configuration.
After rebooting, combo DVR will connect to internet automatically. The IP in the PPPoE is the combo DVR dynamic
value. You can access this IP to access the unit.
Figure 5-13
