NAVIGATION AND CONTROLS
QC40198 User Manual
24 |
P a g e
Figure 4-2
4.1.3
Logout
There are two ways to log out.
One is from the main menu:

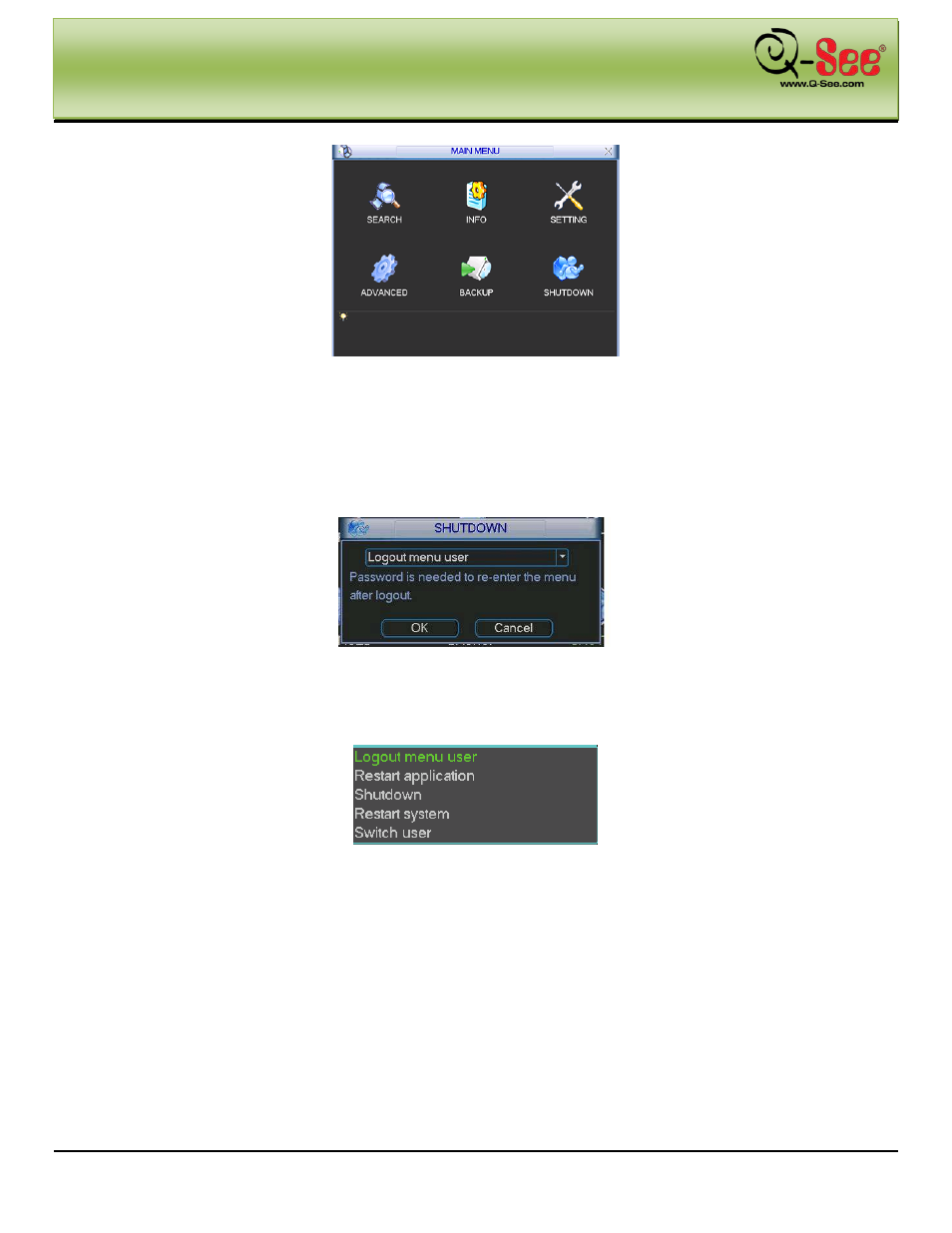

In the main menu, click the shutdown button. This will generate the interface shown below. See Figure 4-3
.
Figure 4-3
From the drop down menu shown in Figure 4-3, you will be given several log out options. See Figure 4-4.
Figure 4-4
The other way to log out is to press the power button on the front panel for at least 3 seconds. The system will
stop all operations and you can then click the power button in the rear panel to turn off the combo DVR.
4.1.4
Auto Resume after Power Failure
The system can automatically backup video and resume previous working status after power failure.
