NAVIGATION AND CONTROLS
QC40198 User Manual
31 | P a g e
Figure 4-15
4.4.3.2 Activate Snapshot
Please follow the steps listed below to enable the activate snapshot function. After you have enabled this
function, the system can now take snapshots when corresponding alarm occurs.
 In Encode interface, click snapshot button to input snapshot mode, size, quality and frequency (see Figure
4-16).
 In General interface please input upload interval (see Figure 4-14).
 In Detect interface please enable snapshot function for specified channels. Or in alarm interface please
enable snapshot function for channels you want.


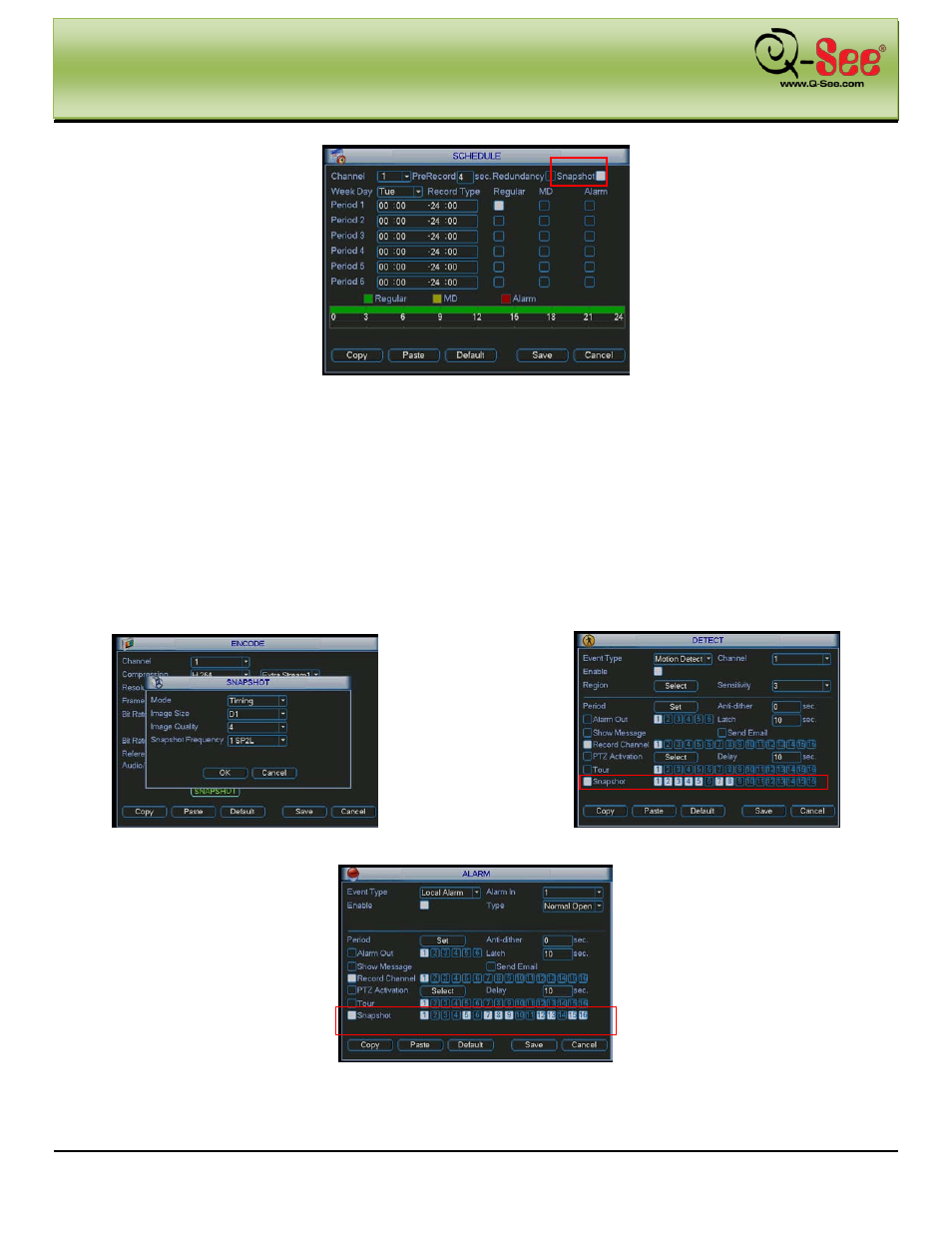

Refer to Figures 4-16 Through 4-18 for a more detailed illustration.
Figure 4-16 Figure 4-17
Figure 4-18
