NAVIGATION AND CONTROLS
QC40198 User Manual
43 | P a g e

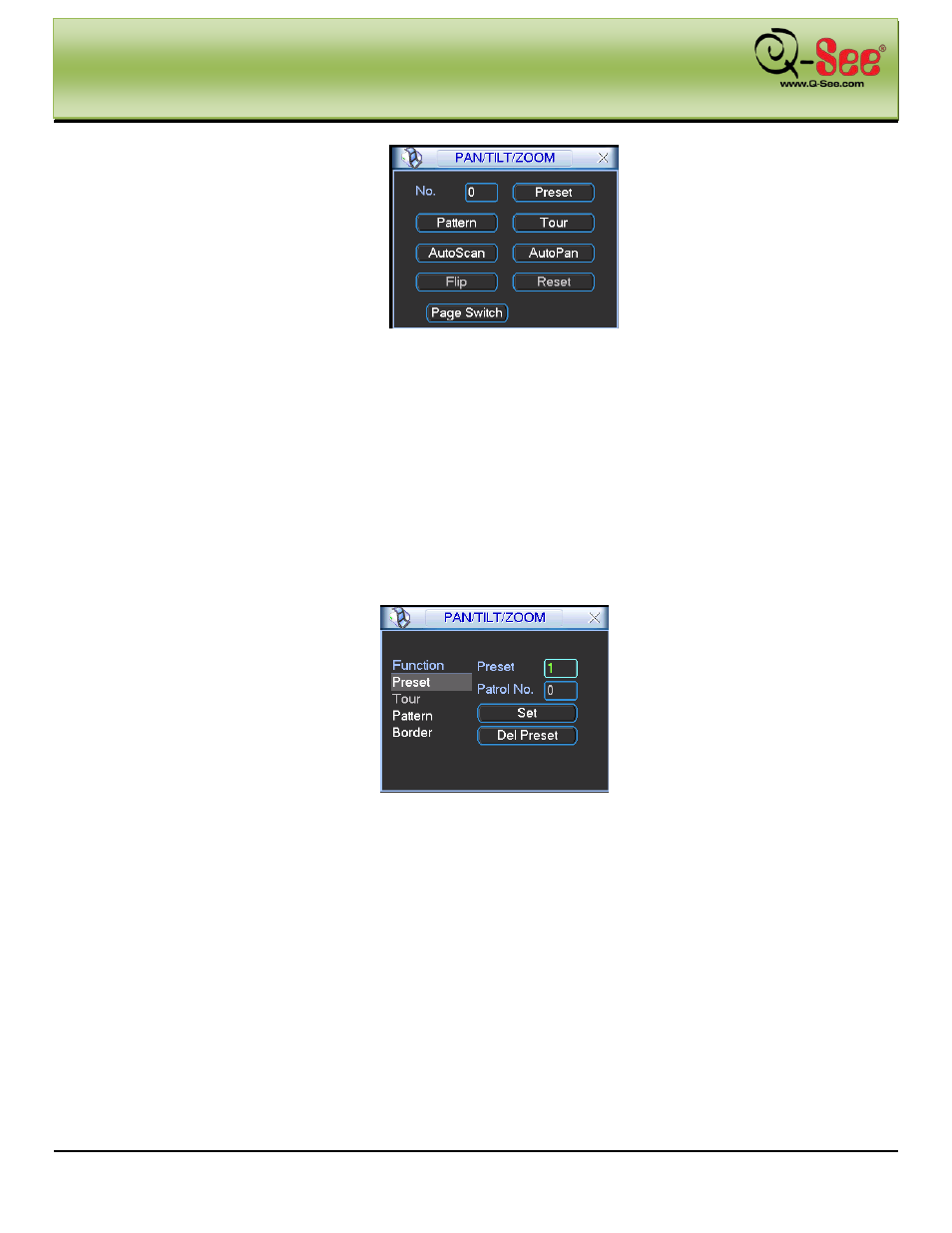

Figure 4-40
Note:
 Preset, tour and pattern all need the value to be the control parameter. You can define it as you require.
 You need to refer to your speed dome user’s manual for Aux definition. In some cases, it can be used for
special processes.
 The following setups are usually operated in Figure 4-36, Figure 4-37 and Figure 4-39.
4.9.1 Preset Setup
As shown in Figure 4-36, uses eight direction arrows to adjust camera to the proper position. Click the preset button
and input preset number. The interface is shown in Figure 4-41.
Now you can add this preset to one tour.
Figure 4-41
4.9.2 Activate Preset
As shown in Figure 4-39, input preset number in the blank, and click preset button.
4.9.3 Patrol setup (Tour Setup)
As shown in Figure 4-36, click the patrol button. The interface is shown in Figure 4-42. Input preset number and add
this preset to a patrol (tour). For each patrol (tour), you can input up to 80 presets.
