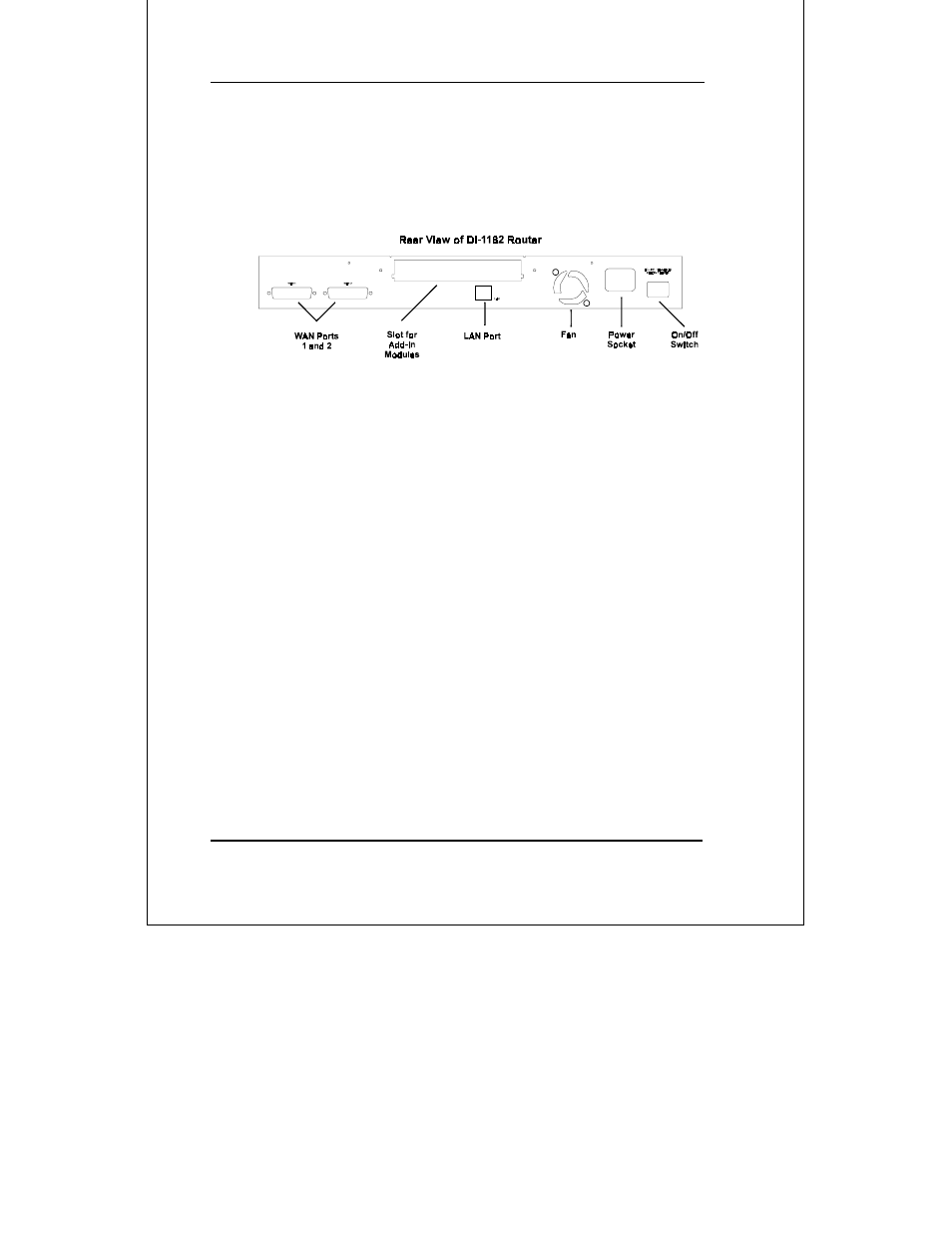

DI-1162 Remote Access Router
Installation 11
•
Diagnostics RS-232 Serial Port
A DB-9 female connector used to connect a console to the router
for initial setup and out-of-band management.
•
Wan Ports (1 and 2)
Two DB-25 male connectors each of which can be connected to a
dial-up (dial in or out) line or a dedicated leased line by
multiplexing with a modem or CSU/DSU (Channel Service Unit/
Data Service Unit) respectively.
•
Slot for Add-in Module
This slot is able to house any one of the following slide-in
expansion modules:
•
A single RJ-45 NWay 10/100 Ethernet port
•
Two high-speed serial (async/sync) ports
•
A BRI ISDN module.
•
LAN Port
This jack is a full featured RJ-45 NWay Ethernet/ Fast Ethernet
port. The NWay feature allows this port to automatically configure
itself to match the settings used by the port it is being connected to.
