Repair Section 49

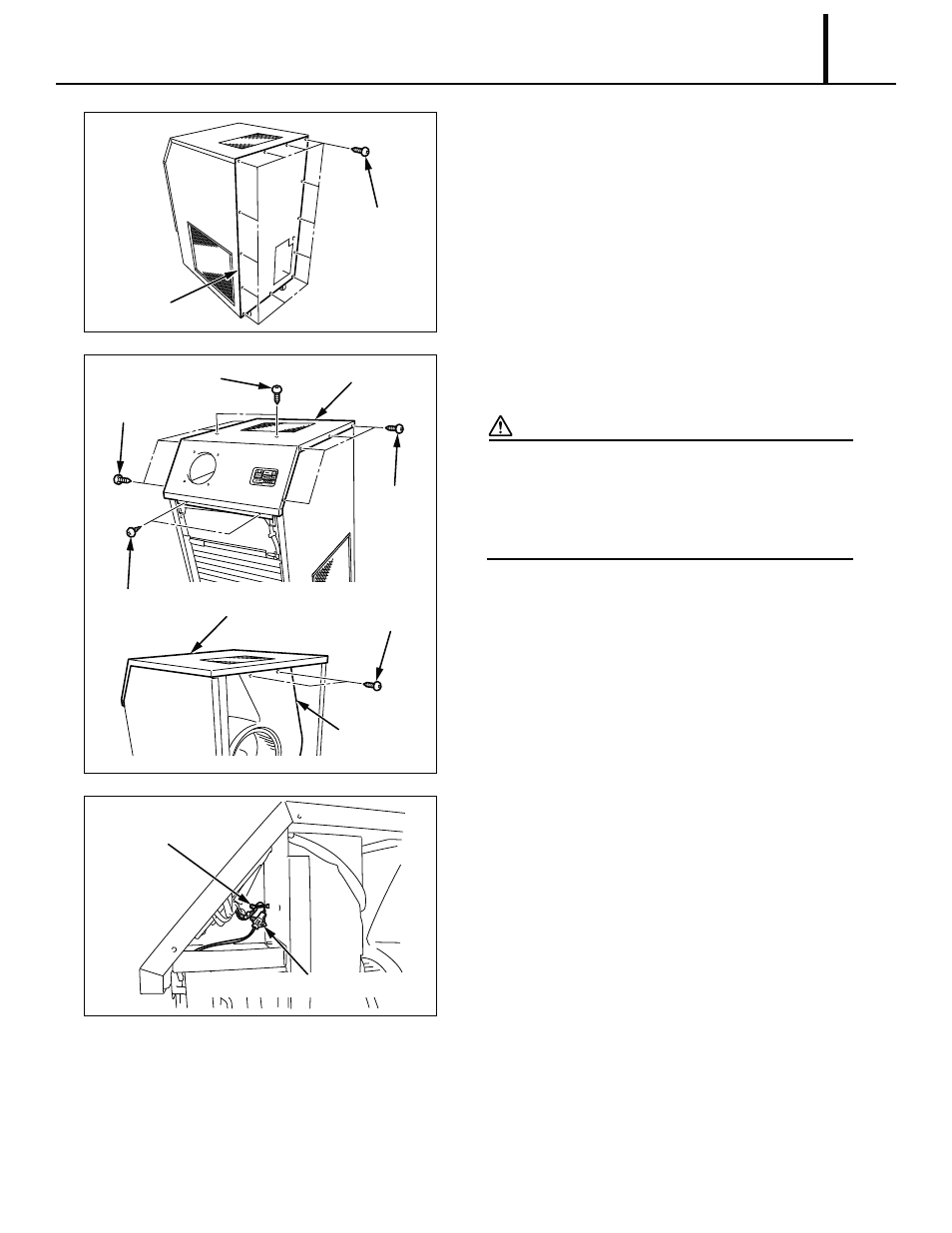

6) Take out the thirteen (13) screws, and then
remove the rear panel.
7) Take out the fourteen (14) screws, and then
remove the upper panel.
CAUTION
The two screws (2*) used on the front side of
the upper panel differ from the rest. Ensure
that the correct screws are used when
attaching the upper panel.
8) Unfasten the connector on the room thermistor
wiring harness.
9) Remove the wiring harness from the clamp.
I002602
Screws (13)
Rear Panel
I002603
Upper Panel
Housing for
Condenser
Fan
Screws (2)
Screws (2)
Screws (4)
Screws (2*)
Upper Panel
Screws (4)
I001730
Room Thermistor Harness Connector
Clamp
