Preassembly

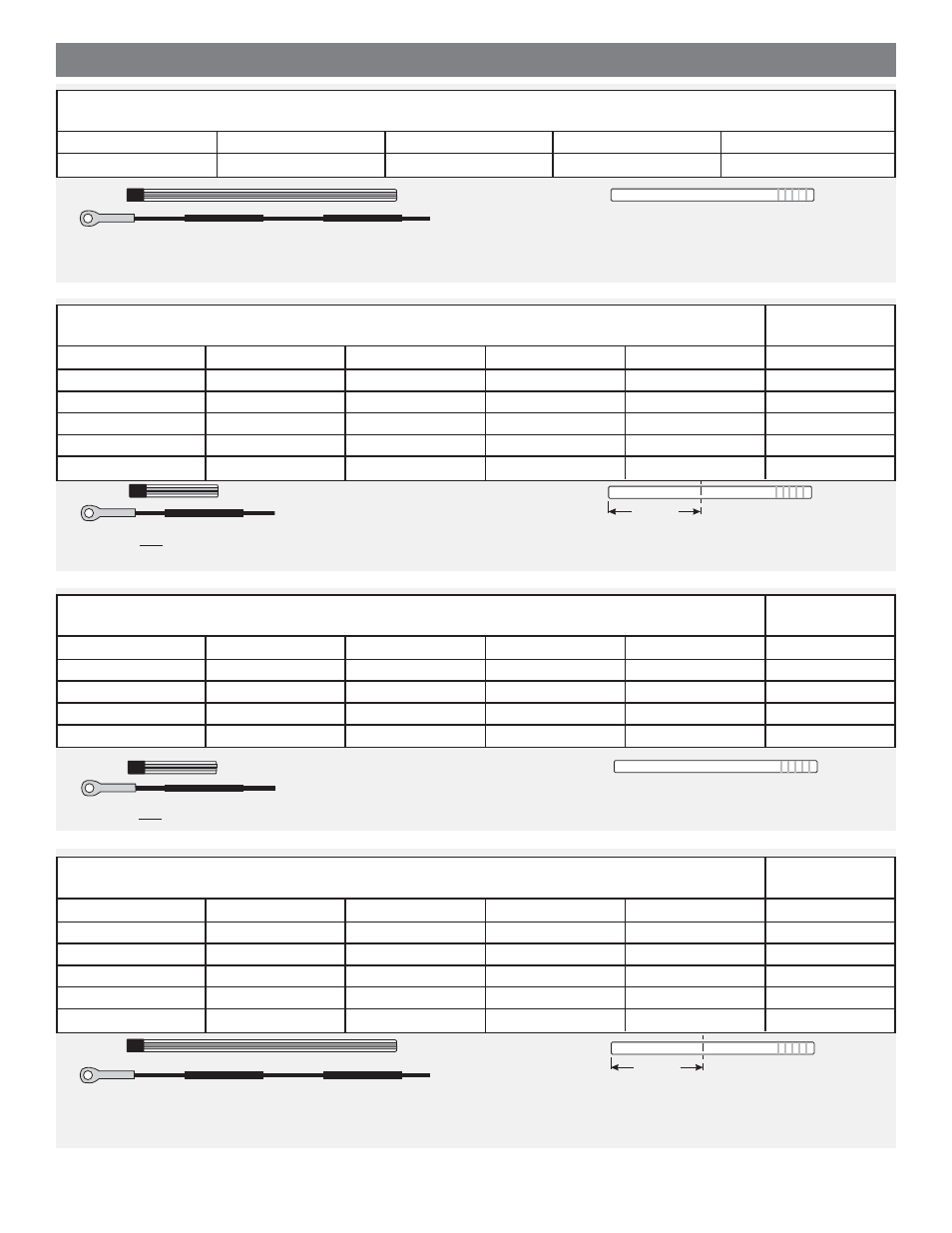

Foil Length Instruction
April 2000
Unit 3.25 MKIII
13
■
You will use a recessed top connector (page 16).
■
Do not cut 24" (610 mm) bottom foil.
■
Shorten the bottom foil 7
1
/
2
" (190.5 mm) and drill screw
-holes as described on P. 12.
■
You will not use a recessed top connector (Page 16).
■
You will not use a recessed top connector (Page 16). ■ Do not cut 24" (610 mm) bottom foil.
■
You will use a recessed top connector (page 16).
■
Shorten the bottom foil 7
1
/
2
" (190.5 mm) and drill screw
-holes as described on P. 12.
■
If your pin-to-pin headstay length is one of the dimensions shown below, no special length top foil is needed.
A full length 7' (2.13 m) foil is used as the top foil.
53'9" (16.383 m)
60'9" (18.517 m)
67'9" (20.650 m)
74'9" (22.784 m)
81'9" (24.917 m)
53'10" (16.408 m)
60'10" (18.542 m)
67'10" (20.676 m)
74'10" (22.809 m)
81'10" (24.943 m)
■
If your pin-to-pin headstay length is one of the dimensions shown below, use a hacksaw to
cut a special length top foil from a 7' (2.13 m) foil.
53'11" (16.434 m)
60'11" (18.567 m)
67'11" (20.701 m)
74'11" (22.835 m)
81'11" (24.986 m)
9'5" (241 mm)
54'0" (16.459 m)
61'0" (18.593 m)
68'0" (20.726 m)
75'0" (22.860 m)
82'0" (24.994 m)
10.5" (267 mm)
54'1" (16.485 m)
61'1" (18.618 m)
68'1" (20.752 m)
75'1" (22.885 m)
82'1" (25.019 m)
11.5" (292 mm)
54'2" (16.510 m)
61'2" (18.644 m)
68'2" (20.777 m)
75'2" (22.911 m)
82'2" (25.044 m)
12.5" (318 mm)
54'3" (16.535 m)
61'3" (18.669 m)
68'3" (20.803 m)
75'3" (22.936 m)
82'3" (25.070 m)
13.5" (343 mm)
54'4" (16.561 m)
61'4" (18.694 m)
68'4" (20.828 m)
75'4" (22.962 m)
82'4" (25.095 m)
14.5" (368 mm)
Cut Top Foil to
This Length
■
If your pin-to-pin headstay length is one of the dimensions shown below, use a hacksaw to
cut a special length top foil from a 7' (2.13 m) foil.
54'5" (16.586 m)
61'5" (18.720 m)
68'5" (20.853 m)
75'5" (22.987 m)
82'5" (25.121 m)
8" (203 mm)
54'6" (16.612 m)
61'6" (18.745 m)
68'6" (20.879 m)
75'6" (23.012 m)
82'6" (25.146 m)
9" (229 mm)
54'7" (16.637 m)
61'7" (18.771 m)
68'7" (20.904 m)
75'7" (23.038 m)
82'7" (25.171 m)
10" (254 mm)
54'8" (16.662 m)
61'8" (18.796 m)
68'8" (20.930 m)
75'8" (23.063 m)
82'8" (25.197 m)
11" (279 mm)
54'9" (16.688 m)
61'9" (18.821 m)
68'9" (20.955 m)
75'9" (23.089 m)
82'9" (25.222 m)
12" (305 mm)
Cut Top Foil to
This Length
■
If your pin-to-pin headstay length is one of the dimensions shown below, use a hacksaw to
cut a special length top foil from a 7' (2.13 m) foil.
54'10" (16.713 m)
61'10" (18.847 m)
68'10" (20.980 m)
75'10" (23.114 m)
82'10" (25.248 m)
20.5" (521 mm)
54'11" (16.739 m)
61'11" (18.872 m)
68'11" (21.005 m)
75'11" (23.139 m)
82'11" (25.273 m)
21.5" (546 mm)
55'0" (16.764 m)
62'0" (18.898 m)
69'0" (21.057 m)
76'0" (23.165 m)
83'0" (25.298 m)
22.5" (572 mm)
55'1" (16.789 m)
62'1" (18.923 m)
69'1" (21.057 m)
76'1" (23.190 m)
83'1" (25.324 m)
23.5" (597 mm)
55'2" (16.815 m)
62'2" (18.948 m)
69'2" (21.082 m)
76'2" (23.216 m)
83'2" (25.349 m)
24.5" (622 mm)
55'3" (16.840 m)
62'3" (18.974 m)
69'3" (21.107 m)
76'3" (23.241 m)
83'3" (25.375 m)
25.5" (648 mm)
Cut Top Foil to
This Length
7
1
/
2
"
190.5 mm
7
1
/
2
"
190.5 mm
