4.7 Thrust Base Type A1/A1E
Table 4.12 – Type A1 Thrust Base Parts List (MX-05, 10, -20, and -40)
Part No. Description
Quantity
(MX-05) (MX-10) (MX-20) (MX-40)
10-1 Thrust base housing 1 1 1 1
10-2 Thrust pilot (Threaded on MX-40) 1 1 1 1
10-3 Thrust nut (A1 or A1E) 1 1 1 1
10-6 Socket head cap screw 1 1 1 N/A
10-7 Washer 1 1 1 N/A
10-8 Pipe plug 1 1 N/A N/A
10-10 Socket head cap screw 4 4 4 4
10-11 Grease fitting 1 1 1 1
10-12 Thrust bearing 2 2 2 2
10-13 Thrust washer 4 4 4 4
10-14 Quad ring 1 1 1 N/A
10-15 O-ring 1 1 1 1
10-16 Quad ring 1 1 1 1
10-17 Gasket N/A N/A N/A 1

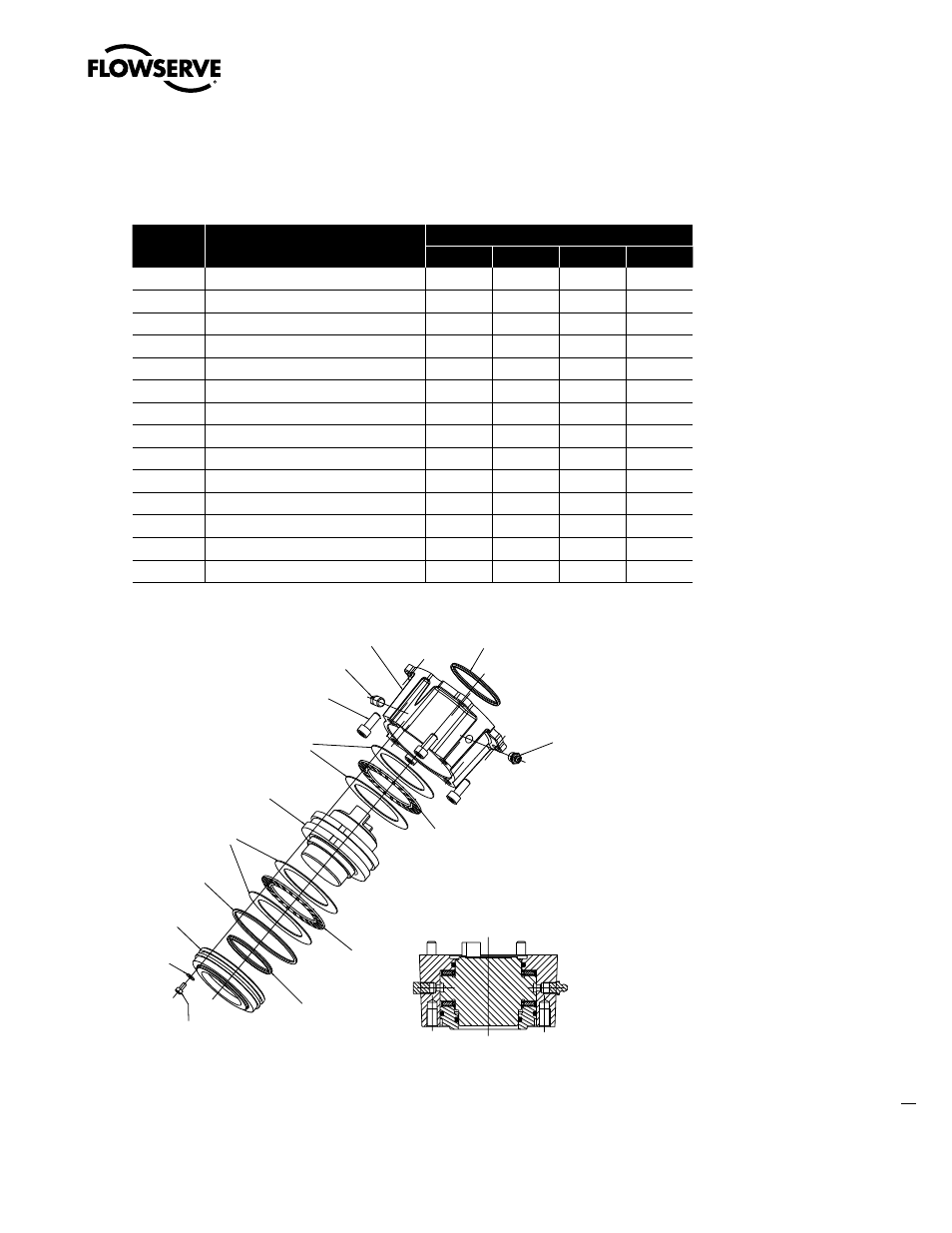

Figure 4.12 – Type A1 Thrust Base (MX-05, -10, -20, and -40)
10-2
10-15
10-13
10-3
10-6
10-7
10-16
10-12
10-12
10-13
10-10
10-1
10-8
10-11
10-17
MX-40 gasket
and quad ring
not shown
10-14
a CAUTION: The MX-05 through -40 A1/A1E thrust base contains lubrication. Ensure that a
quality Lithium-based lubricant is used when reassembling the thrust base.
