Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08

138

5.16 Encoder Drive Cartridge (Supplied With Most

Actuators Since September 2007)

Table 5.16 – Encoder Drive Cartridge Parts List

Part Number

Description

Qty.

14-1

Encoder drive cartridge

1

14-2

Encoder drive shaft

1

14-3

Encoder pinion

1

14-4

Ball bearing

2

14-5

Oil seal

1

14-7

Roll pin

1

14-8

Socket head cap screw

1

14-9

O-ring

1

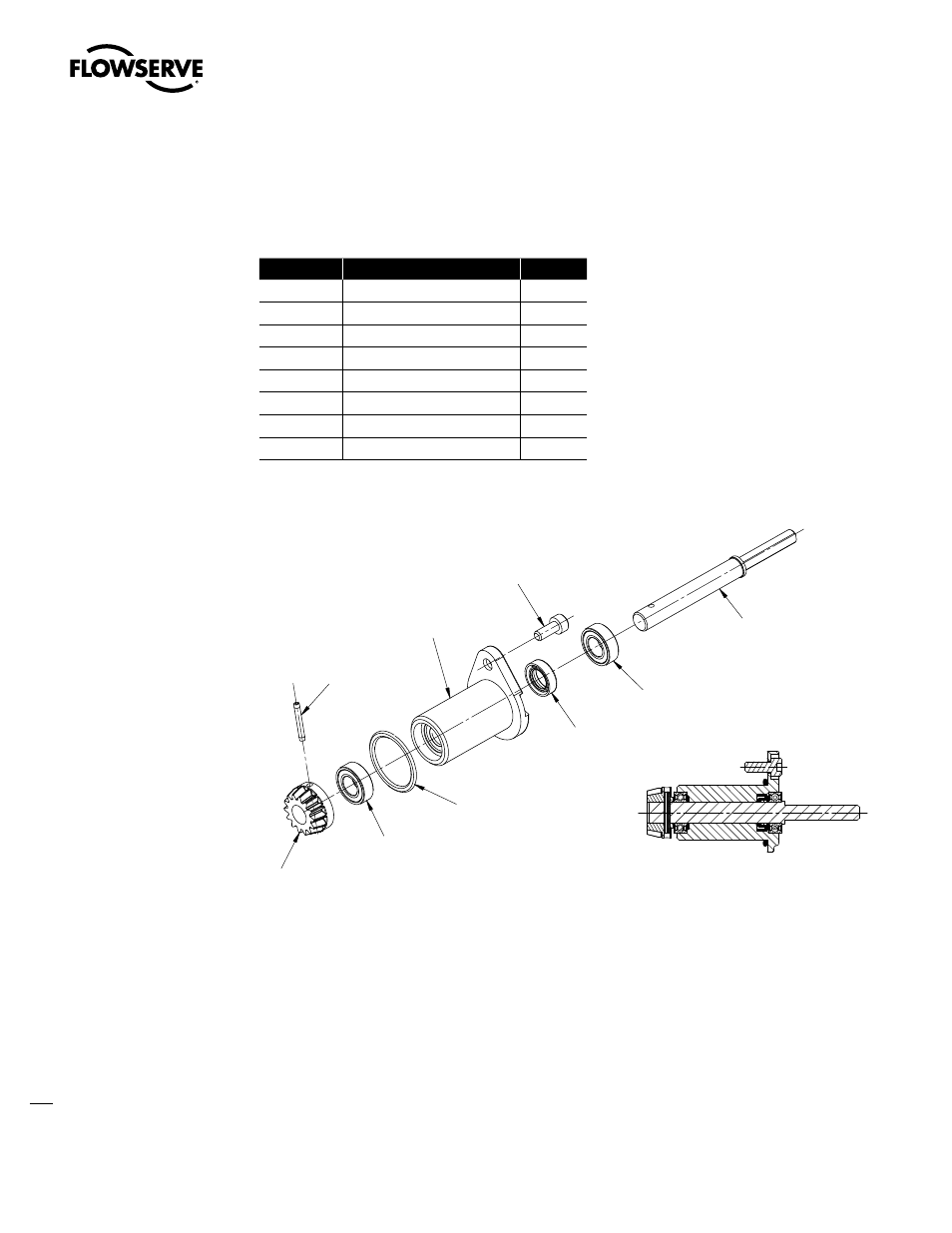

Figure 5.19 – Encoder Drive Cartridge

14-1

14-2

14-4

14-4

14-5

14-7

14-8

14-9

14-3
