Page 35

27
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
Table 4.6 – Declutch Parts List (MX-85, -140, and -150)
Part Number
Description
Qty.
5-1
Declutch cover
1
5-2
Declutch shaft
1
5-3
Declutch cam
1
5-4
Declutch spring
1
5-9
Retaining ring
2
5-10
Socket head set screw
1
5-11
O-ring
1
5-12
Socket head set screw
2
5-13
Spiral pin
1
5-15
O-ring
1
5-16
Pipe plug
1

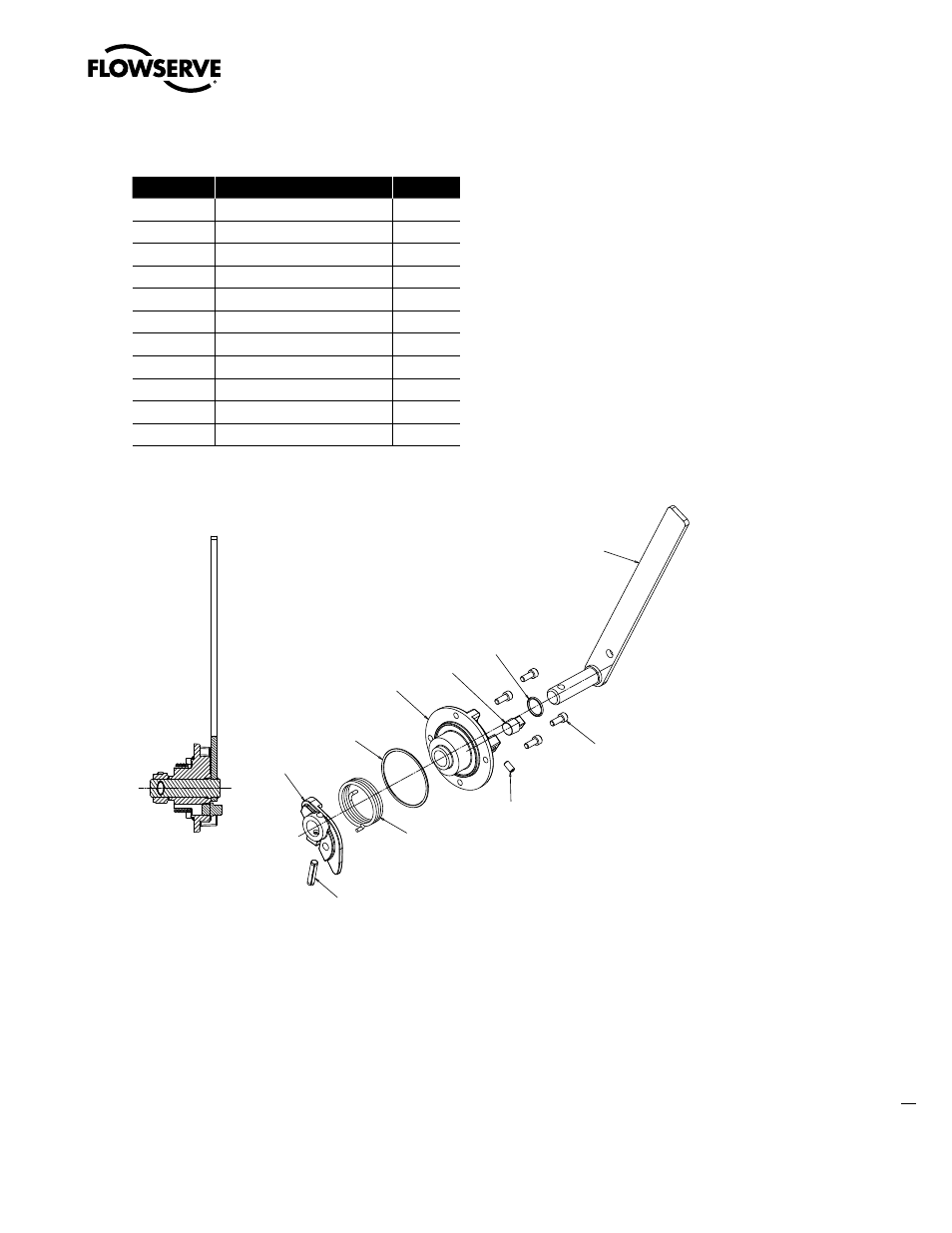

Figure 4.6 – Declutch (MX-85, -140, and -150)
4.2.1 Removal
NOTE: The MX-05, -10, -85, -140, and -150 declutch assembly may be removed and remounted without
other subassembly removal.
NOTE: The MX-20 and -40 declutch assembly may be removed without other subassembly removal, but
remounting requires removing the following subassemblies:
1. Handwheel (Subassembly #13)
2. Handwheel adapter (Subassembly #12)
3. Clutch and clutch ring (Subassembly #16)
