Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
20
4.1.1 Removal

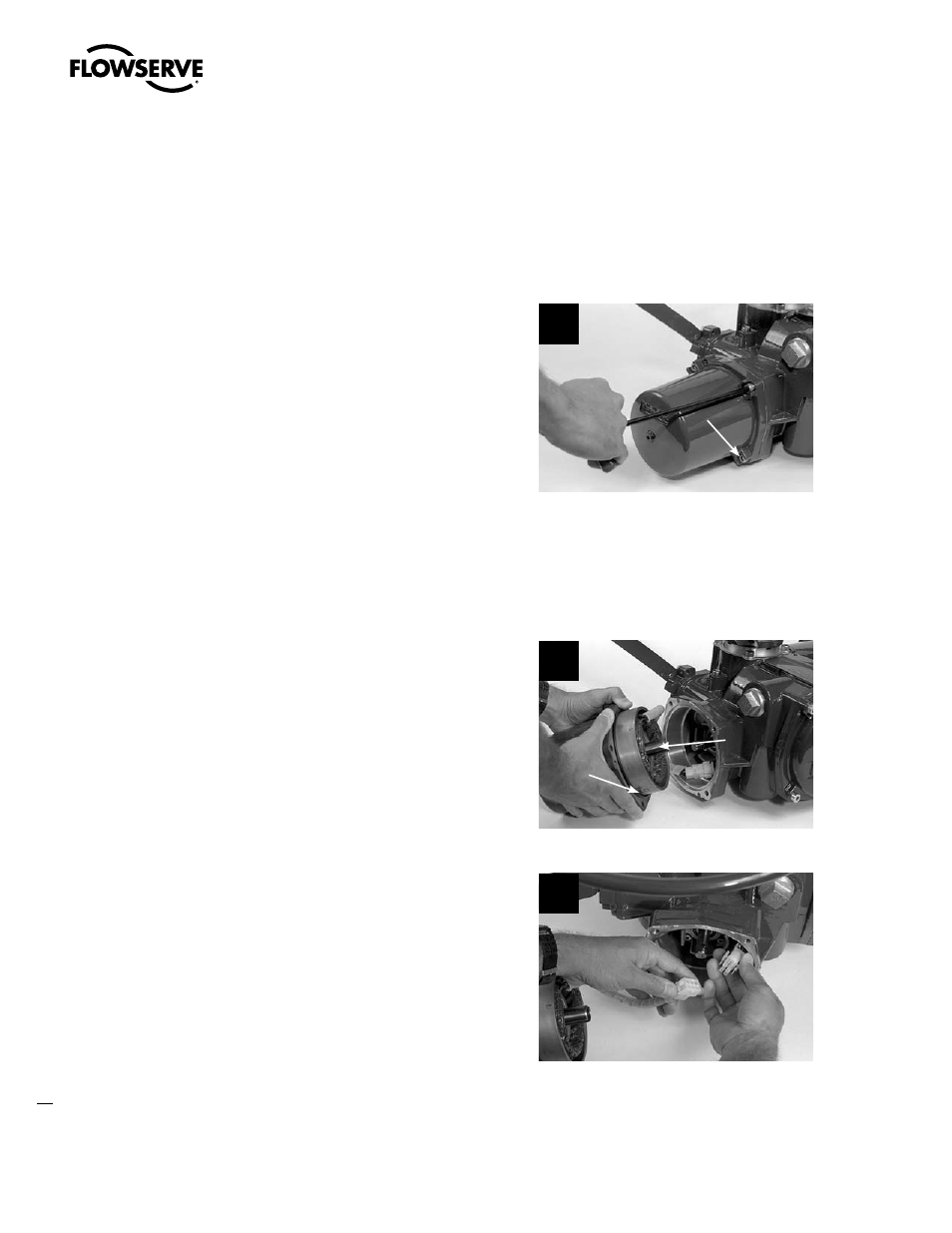

STEP 1
c WARNING: Hazardous Voltage! Turn off all power sources to actuator before removing
motor assembly. Power sources may include main power or control power.
Using an M6 hex key, remove the four M8
screws (#1-14) that mount the motor assembly
to the MX-05 through MX-40 actuator.
MX-85 requires an M8 hex key and uses an
M10 screw.
1
1-14
STEP 2
a CAUTION: The rotor is not connected to the motor housing; when removing the motor,
ensure the rotor is carefully removed and not dropped from the motor housing.
Withdraw the complete motor (subassembly
#4), including the rotor (#4-3), until the wiring
harness is accessible. Note the O-ring (#1-15)
on the spigot/pilot of the motor assembly;
replace at remounting.
2
4-3
1-15
STEP 3
Disconnect the motor power plug from the
motor power socket connector.
3
