Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
16

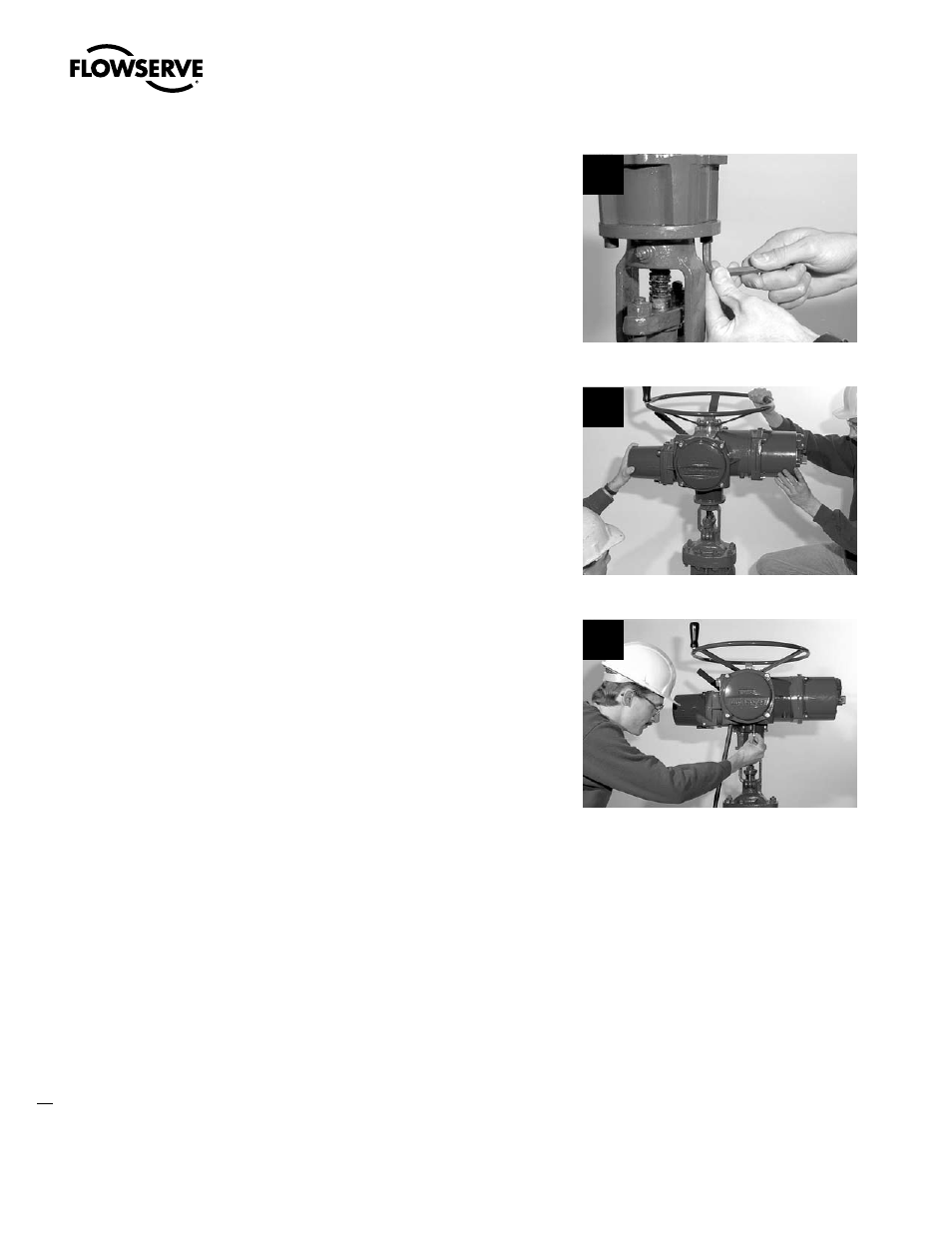

STEP 6
Secure thrust base to mounting adapter with
mounting bolts.
6
STEP 7
Actuator remounting
Lower the actuator onto the thrust base,
making sure thrust nut lugs align and properly
engage with drive sleeve slots.
7
STEP 8
Install bolts (#10-10) to secure the actuator to
the thrust base assembly (#10).
8
STEP 9
c WARNING: Hazardous Voltage! Turn off all power sources before rewiring incoming
power leads L1, L2, L3, and control wiring in the terminal block.
Reconnect incoming power leads L1, L2, L3, and control wiring to the terminal block. Restore
power source when ready for operation.
