Remove Actuator
from Mounting Adapter
3.1 Actuator Removal with Type B1/B4/B4E Base (Torque)
3.1.1 Removal (Type B1/B4/B4E Base)
STEP 1
c
WARNING: Hazardous Voltage! Turn off all power sources to actuator before
removing actuator from mounting plate. Power sources may include main power or
control power. If necessary, disconnect incoming power leads L1, L2, L3, and control
wiring from the terminal block.

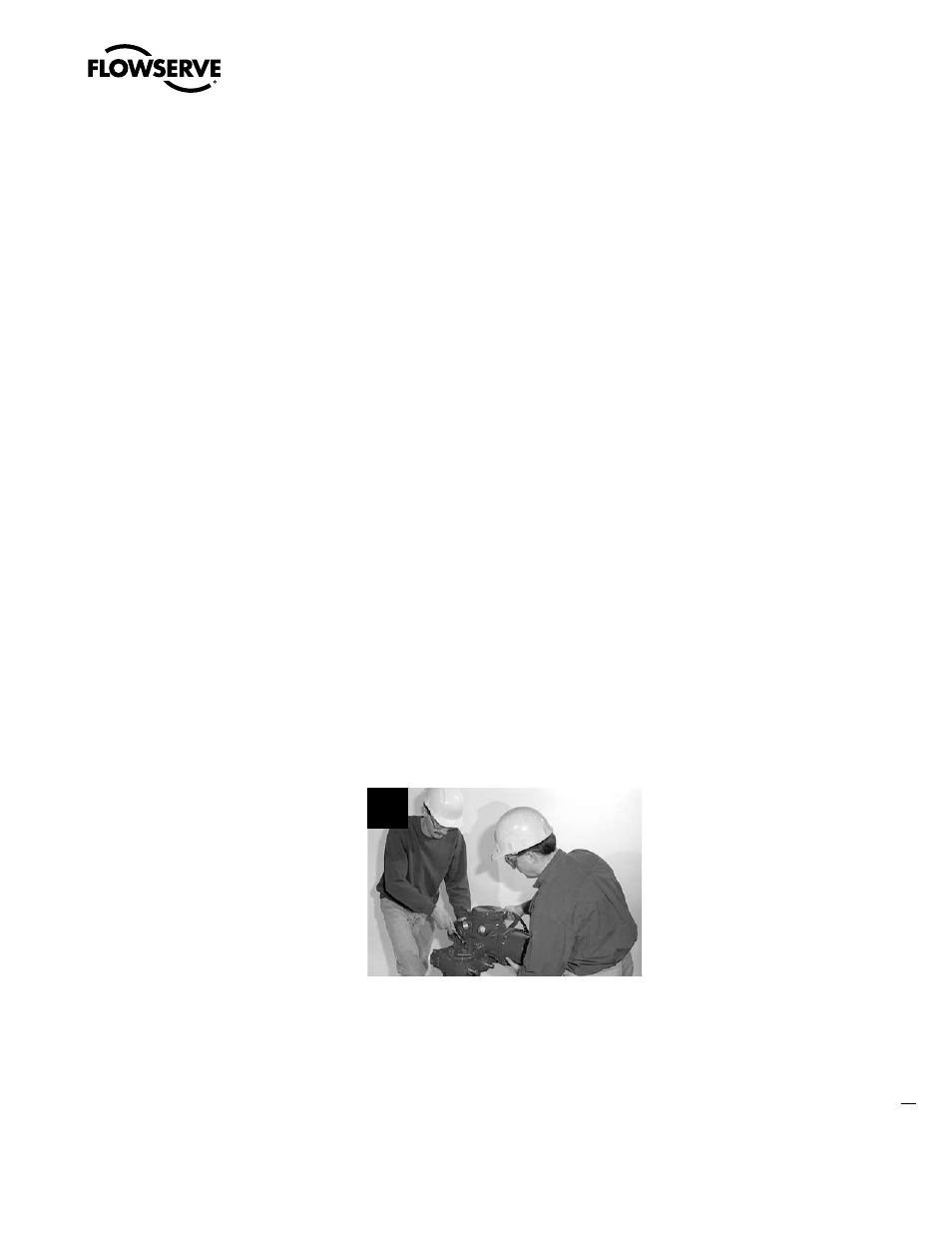

Remove the bolts that secure the actuator
to the mounting adapter. If type B1 or B4E
base is used in addition to the standard type
B4 or B4E baseplate, you may leave the B1
base attached to the mounting adapter and
remove the actuator only. Or if required, you
may remove the bolts that mount type B1 base
to mounting adapter. This will allow actuator
removal along with optional B1 base.
