Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
142

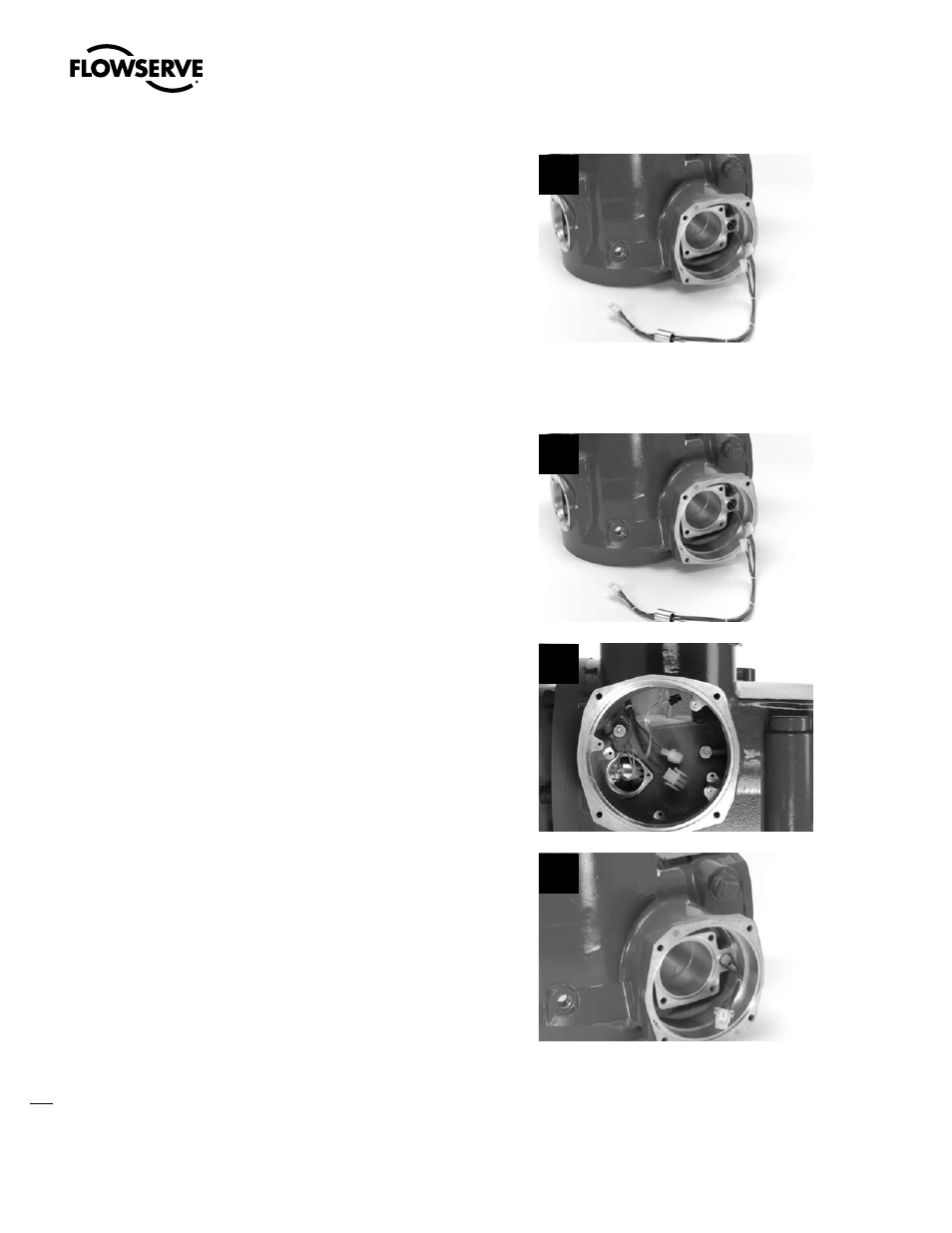

STEP 2
Remove the motor lead harness by threading
the harness back through the housing and out
the motor end. Work the three connectors out
through the hole/slot in the housing one at a
time.
2
5.17.2 Remounting
STEP 3
Work the three connectors through the hole/
slot in the housing. (Hole/slot is located in the
motor cavity next to the worm shaft bore.)
Thread the three connectors through the
housing into the controls compartment cavity
until the lead seal fits completely into the hole/
slot in the housing.
3a
3b
3c
