Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08

26

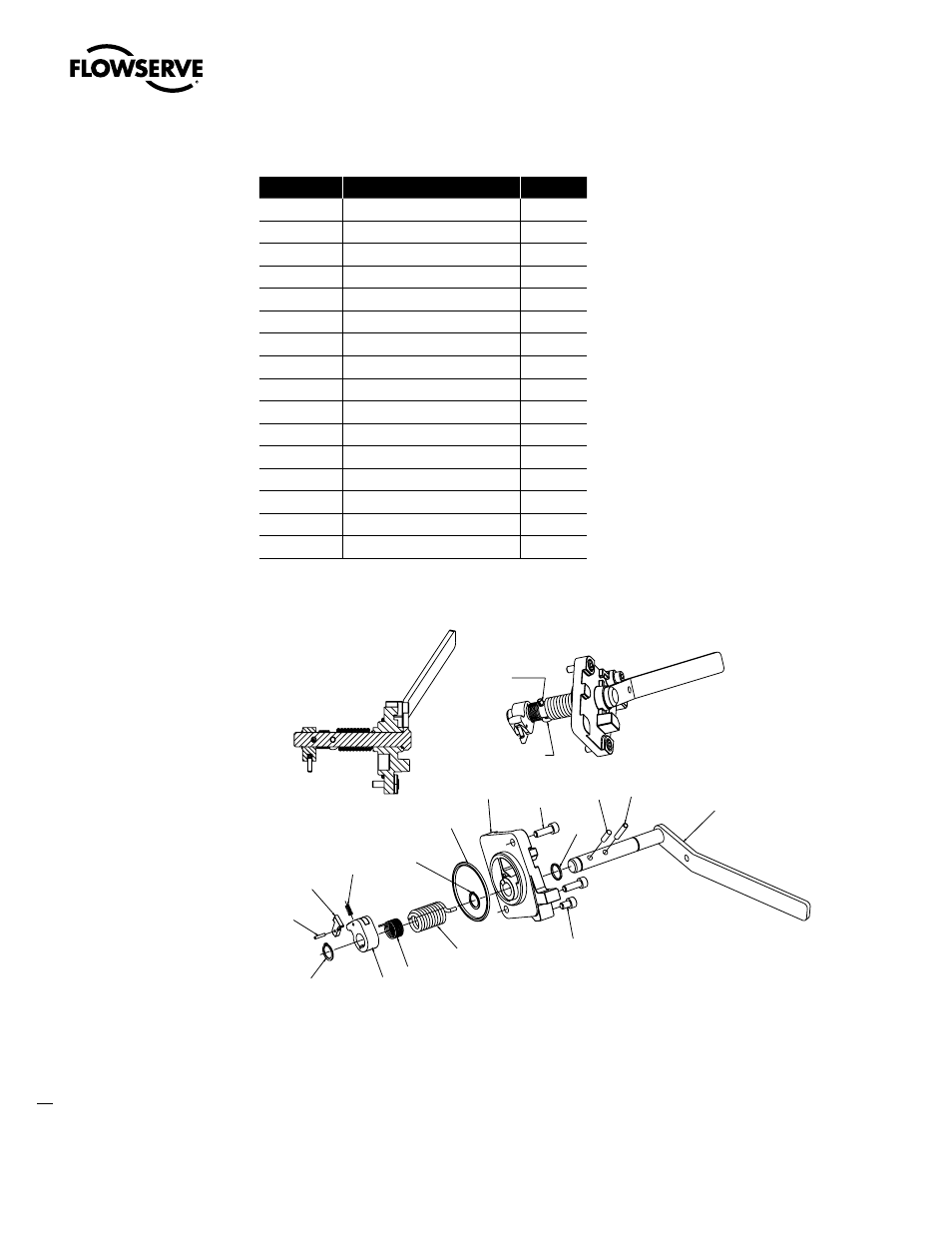

Table 4.5 – Declutch Parts List (MX-20 and -40)

Part Number

Description

Qty.

5-1

Declutch cover

1

5-2

Declutch shaft

1

5-3

Declutch cam

1

5-4

Declutch spring

1

5-5

Cam spring

1

5-6

Declutch latch

1

5-7

Latch spring

1

5-8

Cam plate

1

5-9

Retaining ring

2

5-10

Socket head cap screw

1

5-11

O-ring

1

5-12

Socket head cap screw

2

5-13

Dowel pin

1

5-14

Roll pin

1

5-15

O-ring

1

5-16

Dowel pin

1

Figure 4.5 – Declutch (MX-20 and -40)

PC. NO. 5-5

Spring,

Declutch

cam

PC. NO. 5- 4

Spring, Declutch shaft

5- 2

5-14

5-13

5-12

5-10

5-11

5- 1

5-15

5- 9

5- 4

5- 5

5- 7

5- 6

5-16

5- 9

5- 3
