Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
46

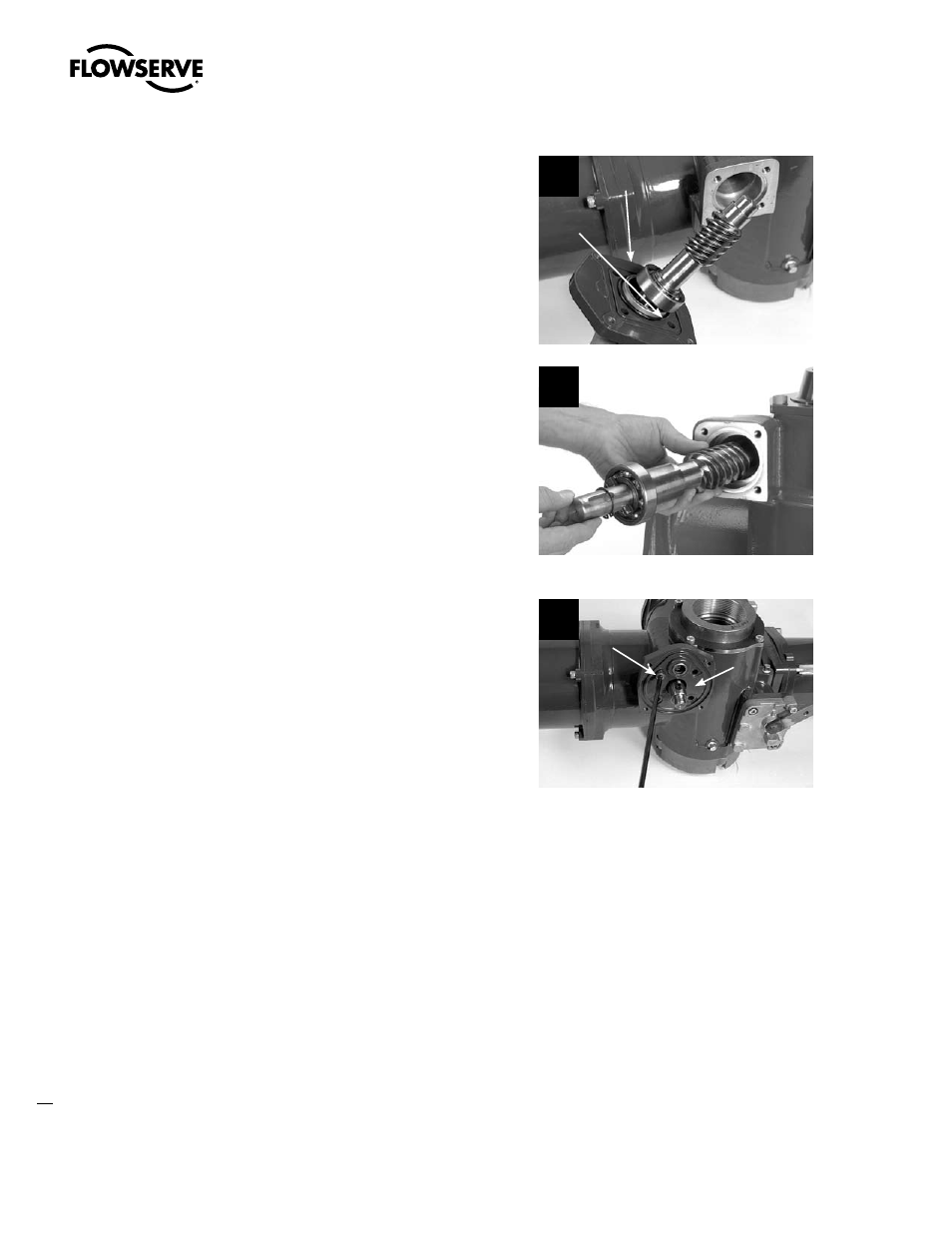

STEP 9
Ensure O-ring (MX-40) (#13-6) is in place on
worm shaft plate.
MX-40, -85, -140, and -150: Insert worm
shaft assembly into actuator housing. Rotate
assembly in counterclockwise (CCW) direction
to properly mate with handwheel worm gear
assembly (#12-1)(9b).
9a
13-2
13-6
9b
STEP 10A - MX-40
Secure with four M8 screws (#13-9) to secure
the adapter plate (#13-2).
10a
13-2
13-9
