Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
28

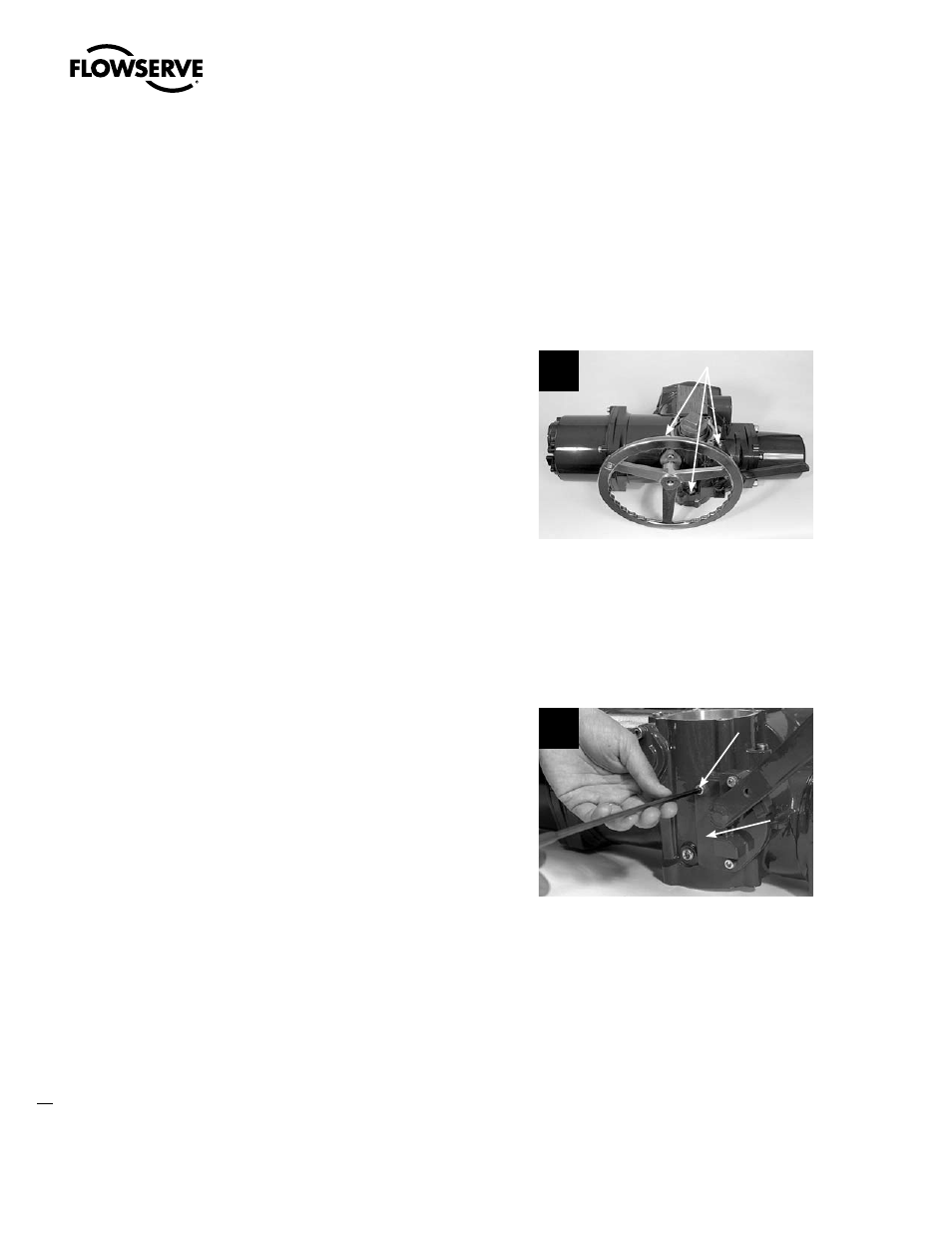

STEP 1
c WARNING: Potential to operate while dangerous mechanical parts are exposed during
subassembly removal. To prevent injury, turn off all power sources to actuator before
removing side-mounted and top-mounted handwheel assembly. Power sources may
include main power or control power.
NOTE: Oil removal is not necessary on MX-05, -10, -85, -140, and -150 if actuator is mounted with
declutch lever up.
Drain oil from actuator using the lowest of three
plugs in your application mounting orientation.
1
Oil Plug Drains
STEP 2
c WARNING: Potential to operate while dangerous mechanical parts are exposed during
subassembly removal. To prevent injury, turn off all power sources to actuator before
removing declutch assembly. Power sources may include main power or control power.
Using a 5 mm (MX-05 and -10) or 6 mm
(MX-20, -40, -85, -140, and -150) hex key,
remove the two M6 (MX-05 and -10) screws
(#5-12), M8 (MX-20 and -40) or the four M8
(MX-85, -140, and -150) screws that retain the
declutch assembly cover (#5-1) on the actuator
housing.
X2
5-12
5-1
