Daktronics Venus 1500 Ver 3.x - Manual (Page 62)

The Venus 1500 Message Studio 48

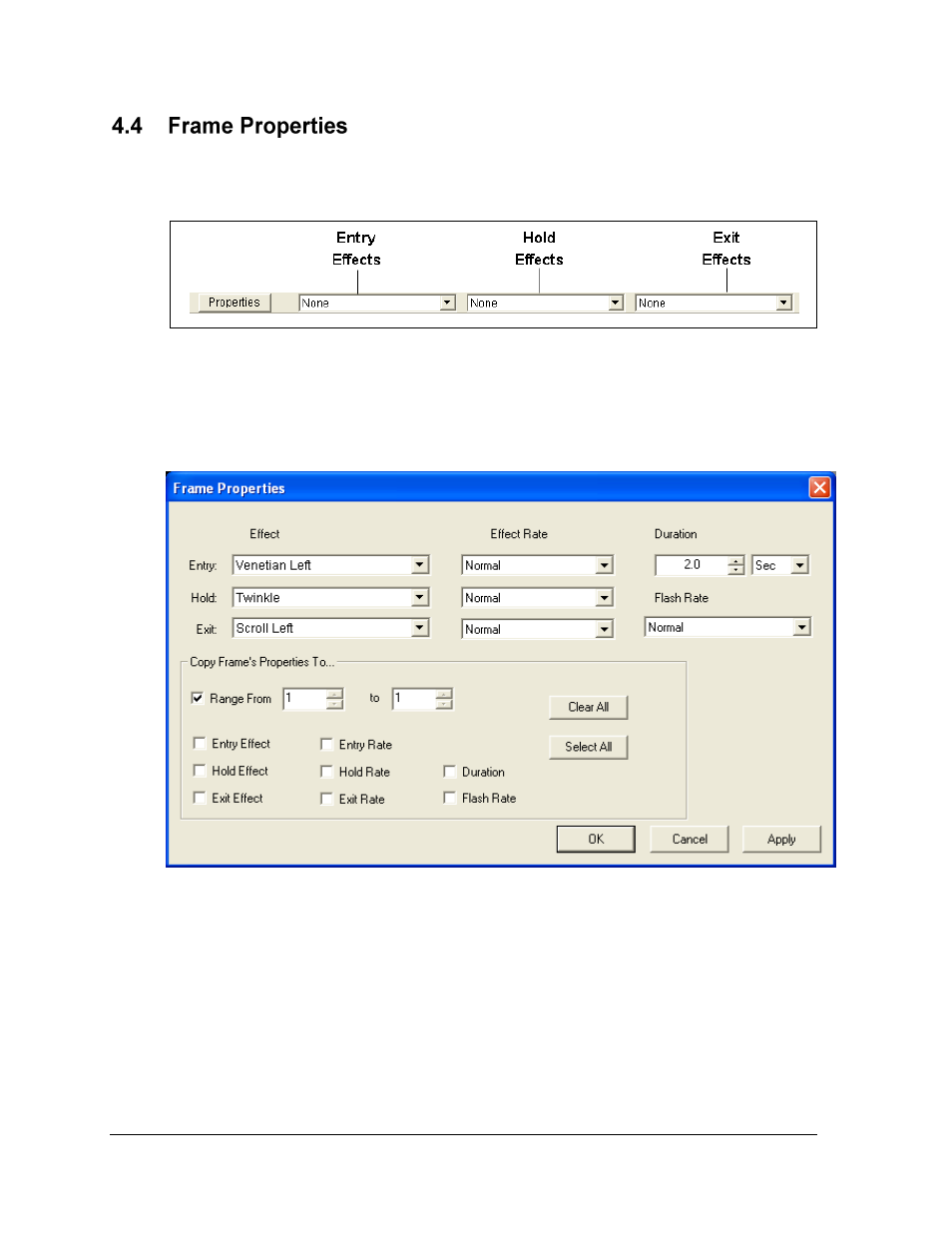

Frame Properties (Figure 62) adjusts the settings of a specific frame, such as transitions from
one frame to the next, hold time, and flash rates.
The three boxes next to the Properties button provide quick options for entry, hold, and exit
effects (Figure 62). In addition, when Properties is clicked, a window opens that allows
adjustment of the timing, transitions, and effects for single or multiple frames (Figure 63). By
clicking on the down arrows next to each box, options can be chosen for these effects.
Figure 62: Frame Effects
Figure 63: Frame Properties Window
