3.2.1 IF Signal Side Connections
(Cable Loop Removed for Clarity)

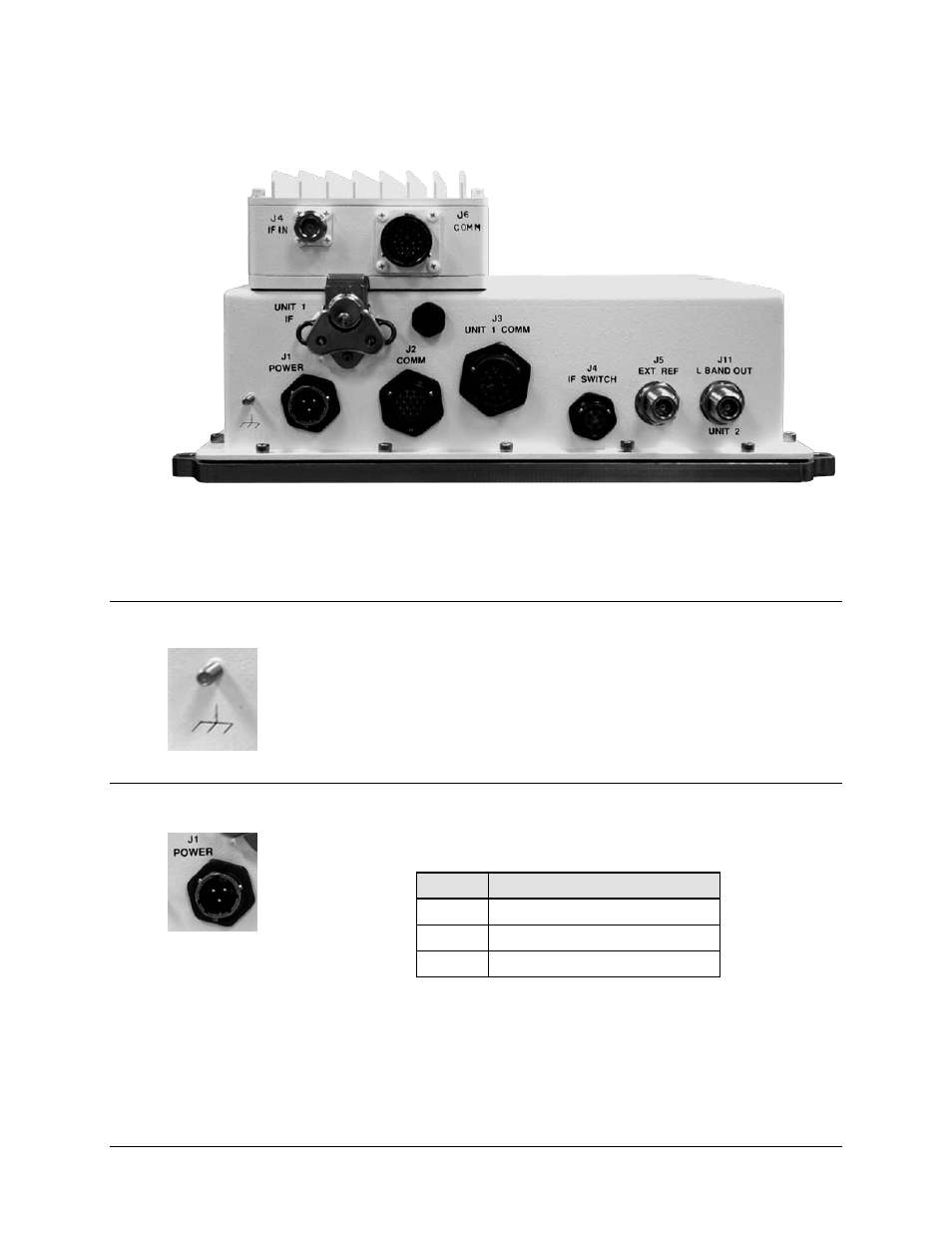

Figure 3-2. MBT-4000B External Connectors – IF Signal Side
3.2.1.1 Ground Connector
Use this #10-32 stud to connect a common chassis ground among equipment.
3.2.1.2 J1 | POWER
Table 3-2. J1 | POWER Connector Pinouts
Pin Signal
A LINE
B NEUTRAL
C GND
NOTE – Mating Connector:
CEFD P/N CN/MS-STPG03F02
(ITT Cannon KPT06B-12-3S)
