Users Manual Sonic Knife w/500

Installation Instructions for Stacker Option 580028 •••• 34

Installation Instructions for
Stacker Option 580028

(Use with Woven Edge Fabrics less than 1 inch wide & over 4 inches long)

Option consists of:

Part No.

Description

Qty

588048

Web Guide

1

588049

Long Stacker Mount Shaft

2

Installation Procedure

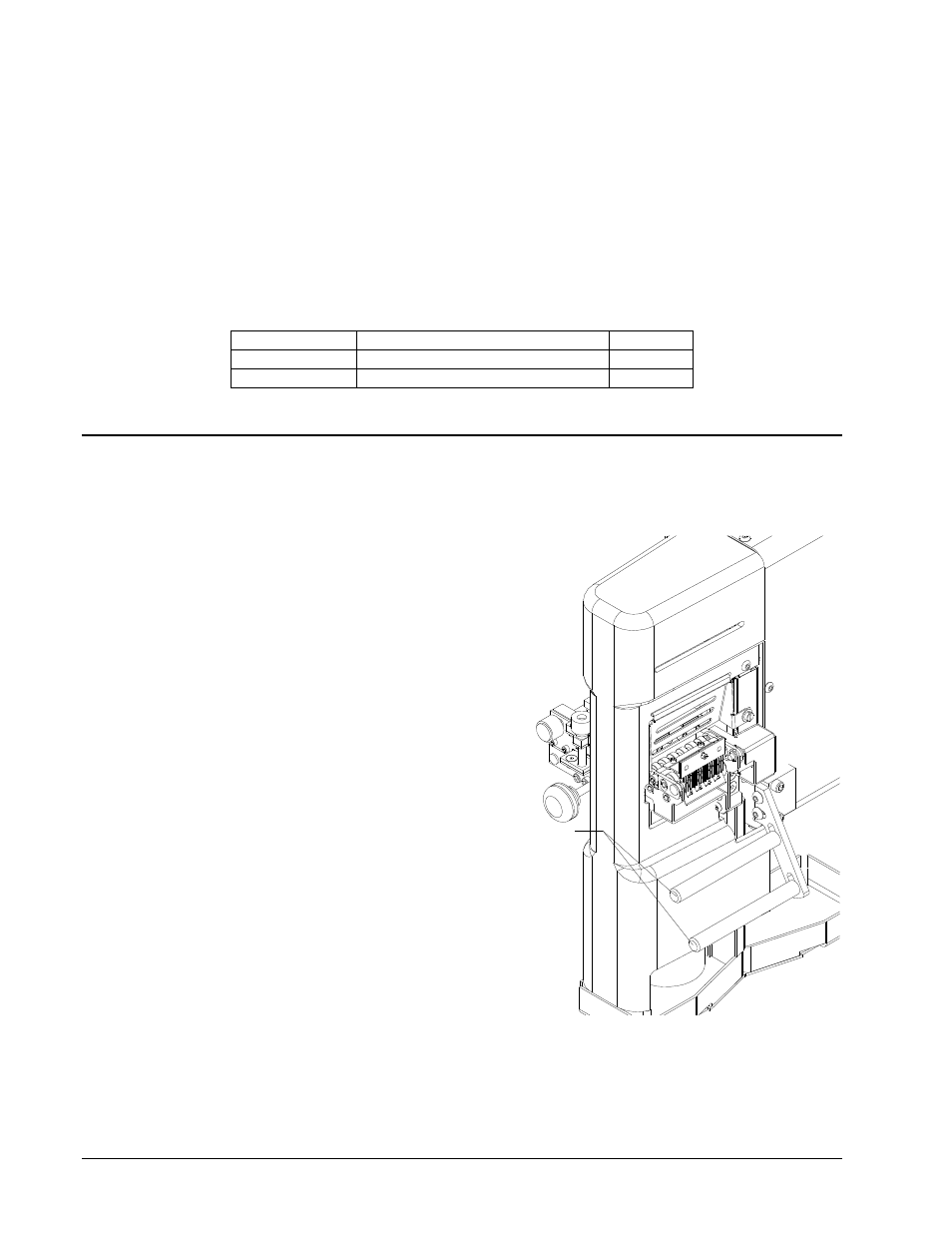

1. Remove (2) Stacker Mounting Shafts from the Sonic Knife and replace with

(2) 588049 long Stacker Mount Shafts.

STACKER MOUNTING SHAFTS

SHAFTS & REPLACE WITH LONG

REMOVE STACKER MOUNTING

(588049)

2. Adjust to allow Stacker to slide freely.

3. With Stacker installed, slide forward and tilt top back as far as possible

without blocking the Platform “Drop” Sensor.
